24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry

Categories Ceramic Vacuum Filter
Brand Name: MIROC
Model Number: Ceramic Filtering Plate
Certification: ISO9001
Place of Origin: China
MOQ: 1 Pieces
Price: negotiation
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, , D/P
Supply Ability: 50 Sets per month
Delivery Time: 15-25days after receiving payment and order confirmation
Packaging Details: Wooden Box or Seaworthy Package
Product Name: Ceramic Filtering Plate
Filter Material: Micro-hole Ceramic Filter Plate
Filter Area: 24m3
Filter Disk Number: 96pcs
Dis Diameter: 1920mm
Length*Width*Height: 5200x3170x2530mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry

24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry


Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
The fineness of materials is from -200 to -450 and a variety of superfine materials.


Parameters and Specification:

Basic Information of Filter Plate
NameParameters
Water flux(pure water pressure 0.15MPa)≥6400L /h.m2
Pneumatic back flush test pressure≥0.5Mpa
Assembly precisionAssembly ring plane and plate surface parallelism±0.2mm
Assembly ring plane and the plate spacing8±0.1mm
Installation disk precisionAssembly hole center and diagonal error≤2mm
Each plate spacing for disk5±1mm
The membrane surface abrasion total time (without scraper or other hard objects damage)≥7000h
Poriness≥42%
Bore diameter2um-10um
Breaking strength

≥30Mpa

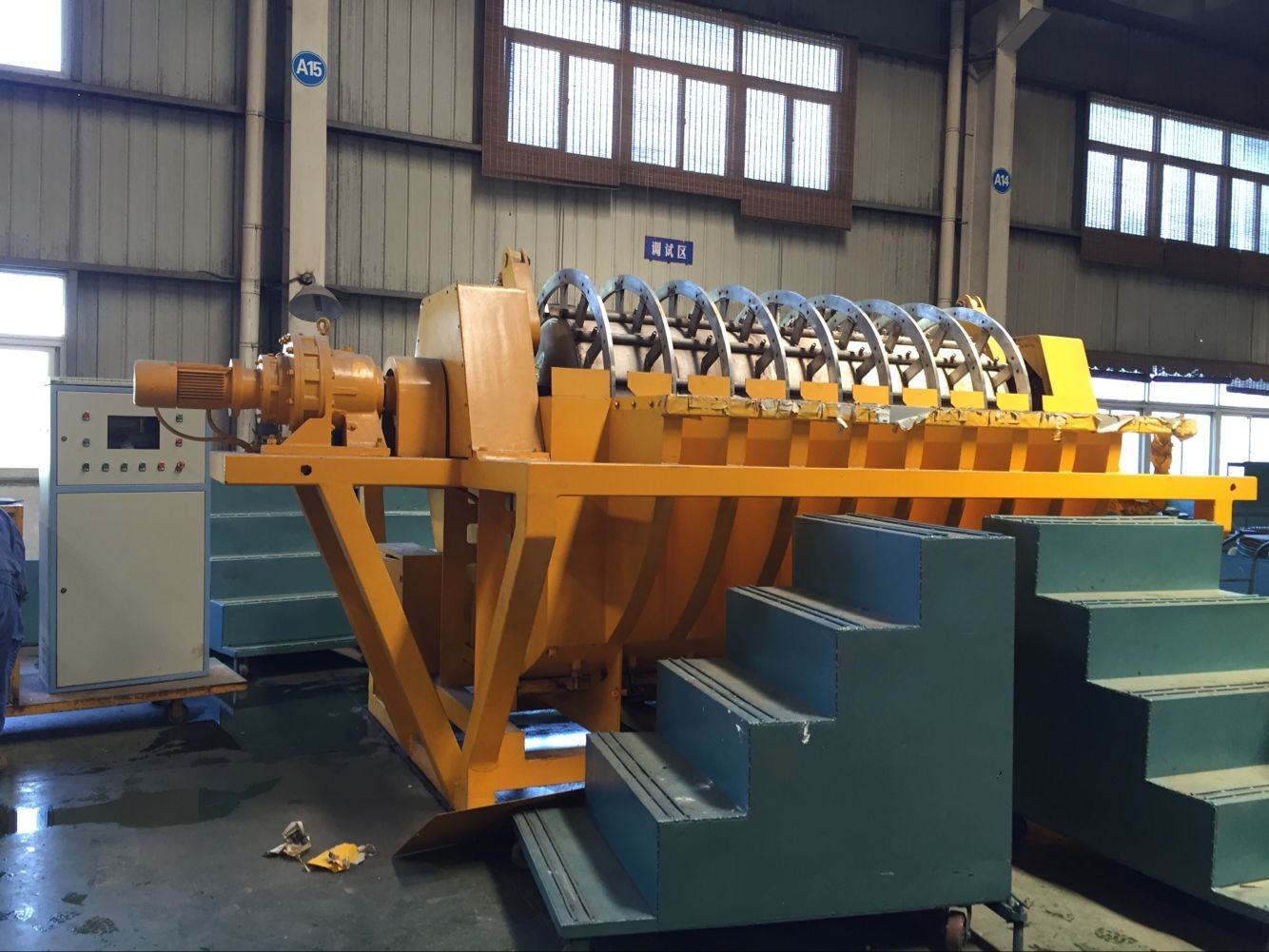

Products picture:


Characteristics of Ceramic Vacuum Filter :

1. High vacuum degree(0.09-0.098MPa), filter cake has low water content.

2. Solid content of liquid the maximum is 25ppm, repeated application is available,drainage is lessened.

3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

4. Filter cake cleaning process is added to clean proper materials.

5. It combines PLC, computer and automatic valve control with high automatization.

6. Compact structure,covering less floor area,conventient installation and maintenance.

7. Advanced drainage system fits for any working conditons.


Application at site for Ceramic Filter:


TT Series High Efficient Ceramic Vacuum Filter 24m3 For Separate Mine Slurry
