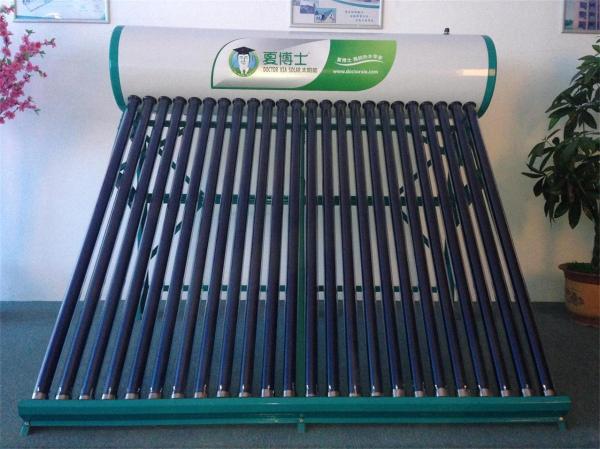

low pressure evacuated tube solar water heater

low pressure evacuated tube solar water heater

Working principle:

It adopts simple thermosyphon circulation. Cold water heated by solar vacuum tubes, then hot water goes up to water tank.

Cold water and hot water forms a nature circulation between solar vacuum tubes and water tank. Then whole tank water will

be hot gradually.

Specialty:

1. Economical type for most areas, people can afford it.

2. Simple structure: Solar vacuum tubes and water tank are connected together.

3. Mature technology and stable operation.

4. No need of much maintainence.

Technical Specification:

1. Inner tank: 0.41mm SUS304 2B stainless steel.

2. Outer tank: 0.3mm galvanized steel.

3. Stand: galvanized steel with anti corrosive painting, 1.5mm thickness.

4. Solar vacuum tube: 58/1800, borosilicate glass 3.3, Cu/ALN-SS/ALN coating.

5. Insulation: 55mm polyurethane foam.

Production :

Dr.X Solar Energy was established in 1988. Located in Changzhou city, Jiangsu province, China. Our company covers an area of 45000 square meaters, has over 100 employees.

                                                                                                                                                                                                             We are specialized in production & exporting of solar water heaters. And have an anual production capacity of 100000sets. As a professional manufacturer, we have workshops for compact solar water heater, Split solar water heater, Non pressure and pressurized solar water heater, heat pipe solar collector and flat plate solar collector, as well as solar vacumm tubes.

We welcome customers from home and overseas to cooperate with us.
