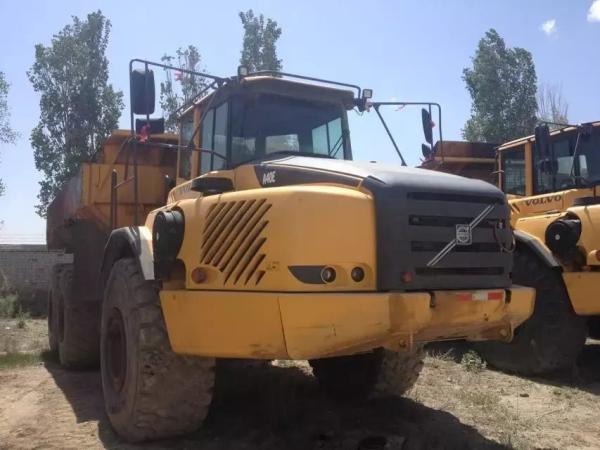

Name: VOLVO A40E ARTICULATED DUMP TRUCK
Brand: VOLVO
Price: 1.0 USD

Specification

Engine
Make	Volvo
Model	D16E AAE3
Gross Power	469 hp	350 kw
Net Power	464 hp	346 kw
Power Measured @	1800 rpm
Displacement	976 cu in	16 L
Torque Measured @	1200 rpm
Max Torque	1862 lb ft	Nm
Number of Cylinders	6
Aspiration	Turbocharged and Intercooled
Operational
Fuel Capacity	144 gal	545 L
Hydraulic System Fluid Capacity	69.2 gal	262 L
Cooling System Fluid Capacity	26.4 gal	100 L
Engine Oil Capacity	13.2 gal	50 L
Transmission Fluid Capacity	10 gal	38 L
Operating Voltage	24 V
Alternator Supplied Amperage	80 amps
Tire Size	29,5R25
Transmission
Type	PT 2509
Number of Forward Gears	9
Number of Reverse Gears	3
Max Speed	35.4 mph	57 km/h
Weights
Front Axle - empty	34643 lb	15700 kg
Rear Axle - empty	31967 lb	14500 kg
Front Axle - loaded	43321 lb	19650 kg
Rear Axle - loaded	109239 lb	49550 kg
Total Empty	66580 lb	30200 kg
Total Loaded	152560 lb	69200 kg
Dump
Rated Payload	85980 lb	39000 kg
Capacity - Struck	24.1 yd3	18.4 m3
Capacity - Heaped	31.4 yd3	24 m3
Dump Angle	72 degrees
Raise Time	12 sec
Lower Time	10 sec
