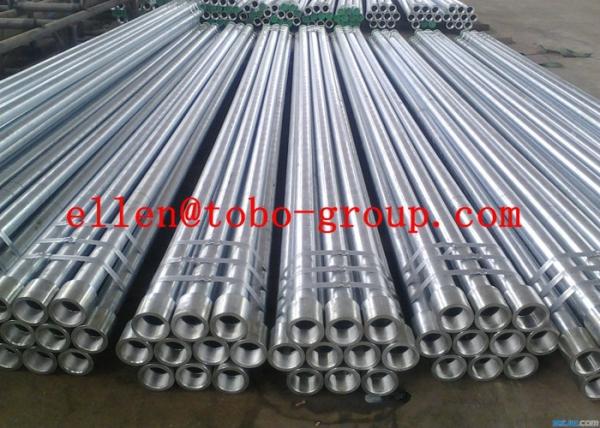

ASME SB163 SB423 SB705 926 Inconel Tubing DIN 17458 1.4529 Seamless OD6 - 760MM

ASME SB163 SB423 SB705 926 Inconel Tubing DIN 17458 1.4529 Seamless OD6 - 760MM

American brand:UNS N08926
Germany brand:W.Nr.1.4529,X1NiCrMoCu
British brand:X1NiCrMoCu
France brand:X1NiCrMoCu

Incoloy 926 under the conditions of containing halide, and research and development of high chromium molybdenum special stainless steel of high corrosion resistance. Because of its high molybdenum content, so it has a very high resistance to pitting corrosion and crevice corrosion resistance, and can be widely used in harsh conditions such as high temperature, sea water environment. Some cases are comparable to those obtained and harts alloy and titanium plate, high efficiency stainless steel with high corrosion resistance.

Acid medium Incoloy 926 is suitable for the existence of all kinds of industrial occasions. Due to low carbon content, its also has excellent resistance to intergranular corrosion. Especially in acid containing halide, Incoloy 926 is better than ordinary stainless steel, can be used in the medium containing high concentrations of chloride ion, stress caused by chloride ion corrosion, pitting and crevice corrosion has excellent corrosion resistance.

Incoloy926 Stainless steel Chemical components

Incoloy 926 Physical properties:
Incoloy 926 stainless steel Density : 8.1 g/cm3
Incoloy 926 alloy steel melting point : 1320-1390 degree

Incoloy 926 minimum mechanical properties value at room temperature

Incoloy926 Stainless steel features:

1. In the halide medium and acid medium containing H2S has a high resistance to pitting corrosion and crevice corrosion performance
2. In the actual application can effectively resistance to chloride stress corrosion cracking
3. In most of oxidation and reduction environment of various corrosion has excellent corrosion resistance
4. The mechanical properties of the Cronifer 1925 LC - 904 L Alloy has large improvement
5. 18% compared with series of nickel content in alloy metallurgy stability are improved greatly Used in pressure vessel manufacturing related certification (VdTUV - 196 - 400 degree and ASME certification)

Incoloy 926 alloy steel application scope of application areas are:
Incoloy 926 is a kind of multi-purpose material, can be applied in many fields of industry:
1. The fire control system, water purification systems, hydraulic and perfusion in ocean engineering piping system
2. The cellulose pulp bleaching pool in production
3. The corrosive oil Wells in the polished rod
4. The hose systems in ocean engineering
5. Acidic gas in the production of pipe, joint, air system, etc
6. In the flue gas desulfurization system components
7. Phosphoric acid in the production of the evaporator, heat exchanger, filter, mixer, etc
8. Sulfuric acid separation and the cooling system
9. Concentration and crystallization salt evaporator
10. Use the condensing water cooling water of power plant and pipeline system
11. Container transport corrosive chemicals
12. The use of organic derivatives of acid chloride catalyst production
13. Reverse osmosis desalination plants
