Limplus Ultrasonic Immersible Transducers 1500W Power 40kHz Frequency with Sweep Function
Ultrasonic Immersed transducers have the advantage of being easy to install, even in a tank which was not intended for that at the origin: they are simply placed or fixed in the tank and have the same cleaning effect as the transducers fixed directly on the tank.
Replacing of immersible transducers is easy. Limplus submersible transducers are designed for long life and optimum cleaning performance.
Specifications:
| Model | LS-30T |
| Transducer box size | 550x420x100mm |
| Ultrasonic power | 0~1500W |
| Ultrasonic Frequency | 40kHz (better for golf club) |
| Ultrasonic transducer number | 30pcs |
| Material | SUS304 or SUS316L |
Remark: Box size can be adjust based on your requirement.
Features:
1. With sweep function
2. With Piezoceramic transducer
3. Standard box material SUS304, SUS316L or other special material
is avaialble.

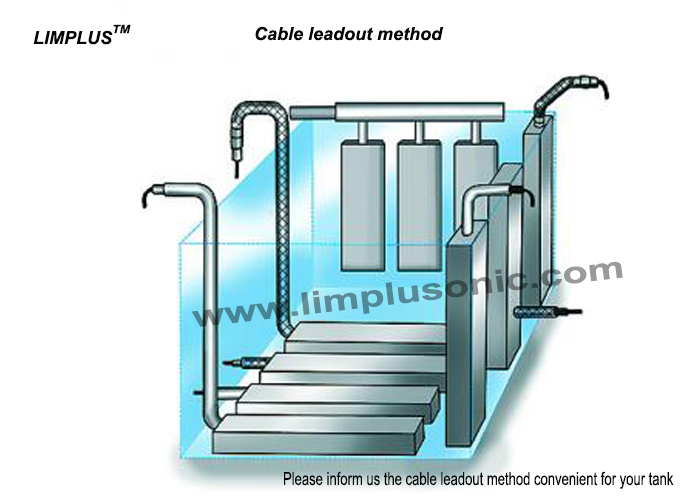

4. Transducer box can fix through tank wall or over the tank edge.
5. Optional mounting racks for easy installation.
6. Accept custom size
Transducer box system specification:
| Model | Unit Size (mm) | Ultrasonic Power(W) | Frequency(kHz) | Transducers(pcs) | Material | Voltage |
| LS-06T | 280*180*100 | 0~300 | 28/40 | 6 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-12T | 360*250*100 | 0~600 | 28/40 | 12 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-18T | 410*300*100 | 0~900 | 28/40 | 18 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-24T | 500*350*100 | 0~1200 | 28/40 | 24 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-30T | 550*420*100 | 0~1500 | 28/40 | 30 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-36T | 620*500*100 | 0~1800 | 28/40 | 36 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-48T | 750*600*100 | 0~2400 | 28/40 | 48 | SUS304/SUS316L | AC 110V/230V, 1phase |
|
