| Categories | Latching Solenoid Valve |
|---|---|
| Brand Name: | Round Star |
| Model Number: | YSZ |
| Certification: | CE/ROHS/TUV/FDA |
| Place of Origin: | China |
| MOQ: | 5pcs |
| Price: | negotiation |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 3,000pcs per month |
| Delivery Time: | 10 working days after received your payment |
| Packaging Details: | Carton, wooden case, exporting condition |
| working medium: | liquid、water、air、light oil |
| medium temperature: | -5 ～ 80℃ |
| working pressure: | 0.3～16bar |
| working type: | DN1.5～4 direct acting DN15～50 pilot operated |
| valvebody material: | brass SS316 PA66 |
| sealing material: | NBR |
| interface: | G thread NPT thread |
| working voltage: | DC6V DC9V DC12V DC24V 4W 6W 12W IP65 H degree |
| Company Info. |
| Yuyao No. 4 Instrument Factory |
| Verified Supplier |
| View Contact Details |
| Product List |

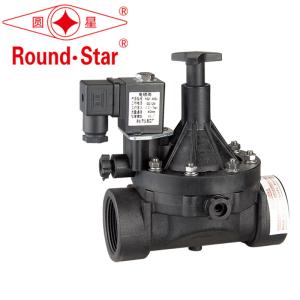

Two Way 1＂Irrigation Solenoid Valve , PA66 Plastic Solenoid Valve 0.3～7 Bar
Product Features:
This energy-saving products for the control of dual-coil, a coil is
energized momentarily after the power is turned off, the valve
opens, the other coil is energized momentarily after power is
turned off, the valve is closed. You can long remain closed or
open, enabling winding and longer life. Using the best in
high-temperature piping.
working medium:liquid,water,air,light oil(viscosity≤20cst)
medium temperature:-5 ～ 80℃
working pressure:0.3～16bar (details see specification table)
working type:DN1.5～4 direct acting DN15～50 pilot operated
valvebody material: brass SS316 PA66
sealing material:NBR(-5～80℃)
interface:G thread NPT thread
working voltage:DC6V DC9V DC12V DC24V
4W 6W 12W IP65 H degree
Options:
sealing material:EPDM(-10～130℃) VITON(-10～120℃
YSZ-series pilot operated solenoid valve specification table
| model | orifice size ( mm ) | Interface size | Cv | working pressure(bar) | length×width×height ( mm ) | weight(Kg) | |||
| air | Water liquid | brass | SS | PA66 | |||||
| YSZ - 15 | 14 | 1/2＂ | 3.5 | 0.3～16 | 0.3～12 | 66×48×112 | 0.7 | 0.6 | |
| YSZ - 20 | 20 | 3/4＂ | 7.6 | 0.3～16 | 0.3～12 | 75×58×118 | 0.8 | 0.7 | |
| YSZ - 25 | 25 | 1＂ | 12 | 0.3～16 | 0.3～12 | 96×69×125 | 1.3 | 1.2 | |
| YSZ - 32 | 32 | 11/4＂ | 22 | 0.3～16 | 0.3～10 | 131×96×125 | 2.8 | 2.8 | |
| YSZ - 40 | 40 | 11/2＂ | 30 | 0.3～16 | 0.3～10 | 131×96×150 | 2.6 | 2.6 | |
| YSZ - 50 | 50 | 2＂ | 48 | 0.3～16 | 0.3～10 | 168×128×165 | 3.9 | 3.6 | |
| YSZ–15SL | 15 | 1/2＂ | 3.5 | 0.3～7 | 0.3～7 | 85×73×126 | 0.6 | ||
| YSZ–20SL | 20 | 3/4＂ | 7.6 | 0.3～7 | 0.3～7 | 90×73×128 | 0.6 | ||
| YSZ–25SL | 25 | 1＂ | 12 | 0.3～7 | 0.3～7 | 125×90×148 | 0.6 | ||
| YSZ–32SL | 32 | 11/4＂ | 22 | 0.3～7 | 0.3～7 | 150×128×173 | 0.8 | ||
| YSZ–40SL | 40 | 11/2＂ | 30 | 0.3～7 | 0.3～7 | 152×128×176 | 0.9 | ||
| YSZ–50SL | 50 | 2＂ | 48 | 0.3～7 | 0.3～7 | 170×140×190 | 1.1 | ||
|
