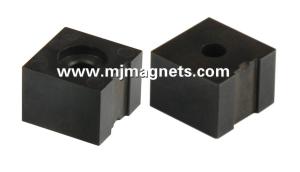

plastic Injection bonded ferrite magnet for sensor

Injection molded Ferrite is another molding process of magnet category. Compared to injection molded NdFeB, the difference of injection molded Ferrite lies in different magnetic powder utilized, therefore injection molded ferrite has lower magnetic properties due to ferrite features, but it costs much less than that of NdFeB.

Features and benefits of injection molded Ferrite

lInjection molded magnets can be of very complex shapes with high precision, typically, tolerance is +/-
0.005mm, it is suitable for high precision parts
lIt is a new technology to achieve adjustable magnetic properties, composite molding, elastic magnetization
and high mechanical strength
lBy doing insert molding, magnetic material can be directly molded into or onto other assembly
components without further assembly process
lThe material is harder to be cracked or chipped than sintered magnet

Applications

(Super) Compact Motor, Actuator, Compact Sensor, Motor, etc
Sometimes, to achieve the magnetic properties between injection molded NdFeB and Ferrite, combinations of ferrite and NdFeB powders provide many different magnetic properties for different applications.

* Maximum application temperature is related with magnetic powder and polymer binder. Even though the temperature of ferrite material happens magnetic loss up to 170°C, the HDT (heat deformation temperature) of the binders is low, when application temperature exceeds the HDT, the binder in injection molded magnet will become soft at some extent, which jeopardizes the product. Maximum application temperatures are listed in above sheet.

Mingjie Magnets Co., Limited (MJM) is a leading manufacturer of plastic injection bonded magnetic products, including injection bonded neodymium magnets and ferrite magnets. MJM is one of the largest NdFeB+PPS magnet providers in the China.

Wuxi factory - Founded in 1999, it is located in Wuxi, Jiangsu province with a production area of 3500 square meters.

Jiangmen factory - It was set up in Jiangmen, Guangdong province in 2012 to extend the capacity and diversity of products in a higher standard to meet various specifications of customers.

MJM has the capability of making molds and magnetizing fixtures in house from design, manufacturing to maintenance. Equipped with automatic robots, it fully achieves accurate and repetitive production without any handling involved. By following ISO/TS16949 system, IQC,IPQC,OQC etc processes are implemented to guarantee goods meet or exceed customers’ standard.

ISO9001/TS16949 certified.

As the leader in the field of plastic injection molded magnets worldwide, our core advantages are,

l Strong technical team with more than 15 years’ experience in plastic magnets
l Expert on anisotropic NdFeB/PPS magnets
l Advanced technology of Tooling design and fabrication
l Largest NdFeB/PPS magnets manufacturer in China

Our magnets are widely applied in automotive, motor, home appliance, air-condition system, printer, and sensor, etc.

Please visit http://www.mjmagnets.com for more.
