XLCT SERIES LOW PROFILE HEXAGON WRENCHES

Categories Wrench
Brand Name: Adam
Model Number: 14XLCT
Certification: CE & ISO
Place of Origin: U.S.A ,China
MOQ: 1
Price: 2500-8000
Payment Terms: T/T, Western Union
Delivery Time: 5-8 work days
Packaging Details: Al Alloy Box
Model No.: 14XLCT
Wrench Type: Hexagonal
Working Type: Double Acting
Working Pressure: 700 bar
Torque Value: 18521 Nm
Hexagon Size: 50 mm, 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100mm, 105mm, 110mm
Material: Al-Ti Alloy
Warranty: 3 years
Details: http://www.adam1987.com/xlct
Skype: brucewu127
M.T: 86 15058465661
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

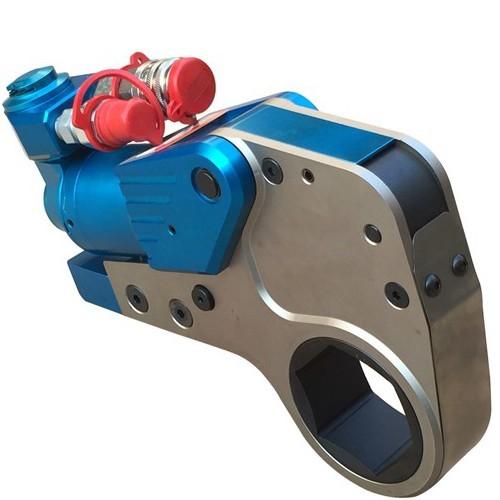

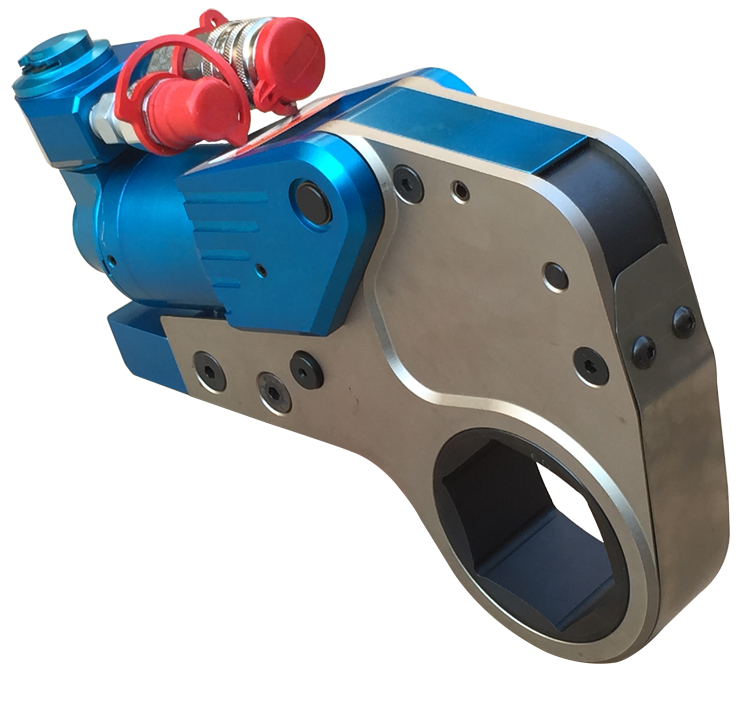

XLCT SERIES LOW PROFILE HEXAGON WRENCHES

Al-Ti Alloy, Low Profile Hexagon Wrenches

Maximum Torque at 700 bar:
41882 Nm
Hexagon Range:
16 -115 mm
Maximum Operating Pressure:
700 bar

Simplicity
• Includes handle to improve tool handling and safety
• No tools are needed for changing the hexagon cassettes
• Innovative, pinless wrench construction incorporates
quick release cylinder and automatic crank engagement

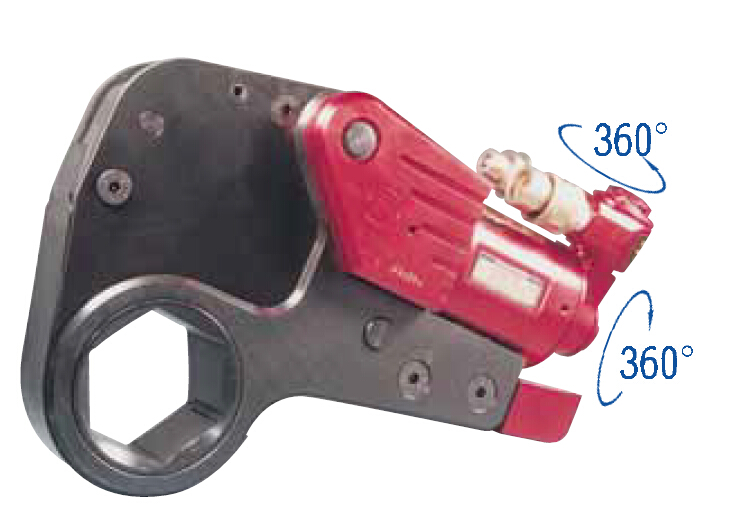

• Single 360° hydraulic swivel manifold complete with
screw lock couplings increases wrench and hose
manoeuvrability.

Design
• Cylinders and low profile cassettes have been engineered
to give ultra slim, compact low clearance tooling with a
small nose radius
• Robust design with minimal parts enables easy on-site
maintenance without special tools
• Optimized strength-to-weight ratio
• Fast operation due to the large nut rotation per wrench
cycle (30 degree rotation angle) and rapid return stroke.


Accuracy
• Constant torque output provides high accuracy ± 3%
across the full stroke
• In-line reaction foot ensures accuracy by reducing
internal deflections.

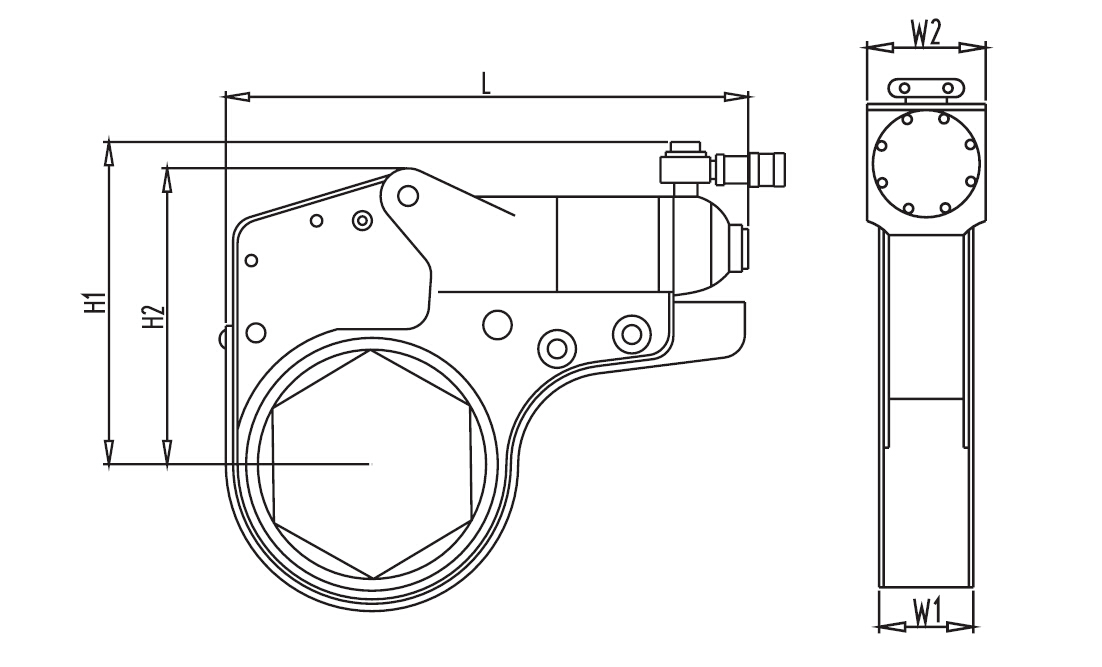

Check the parameters and confirm the model No. of

the XLCT Series Low Profile Hexagon Hydraulic Torque Wrench

Model No.2XLCT4XLCT8XLCT14XLCT30XLCT
Torque Value232-2328585-58581094-109411852-185214188-41882
Bolt Dia. (mm)16-3624-4230-6433-7676-115
Nut A/F (mm)24-5536-6546-9550-110110-165
L196.4245300361430
H1125.9177207239303
H2102.3135.7169204272
W13242536485
W251668399131

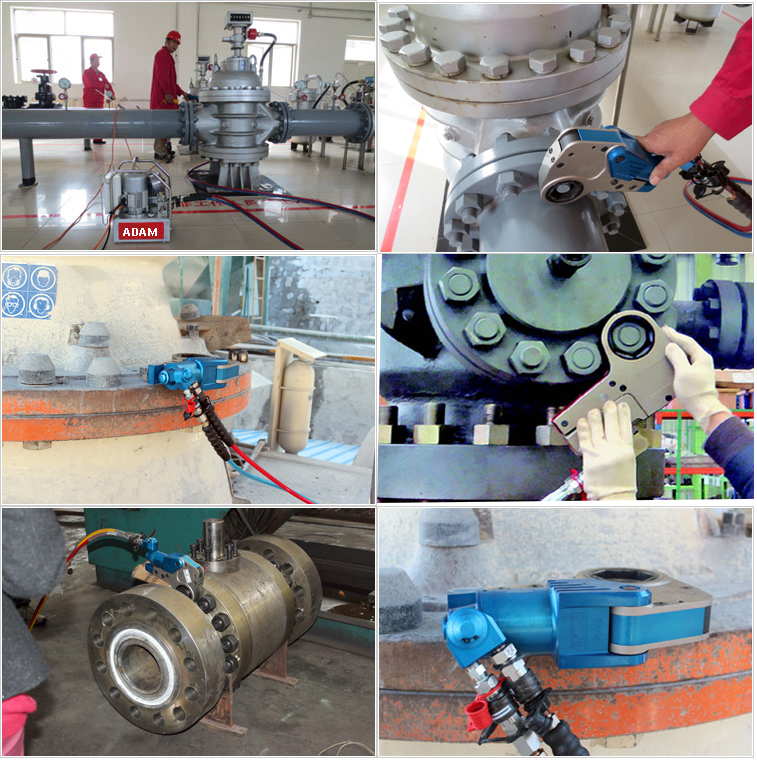

Al-Ti Alloy Low Profile Hydraulic Hexagon Torque Wrenches Applications.

Customized Al-Ti Alloy Hydraulic Hexagon Torque Wrenches

More information on detail, please feel free to contact me
