| Categories | LED DMX Decoder Controller |
|---|---|
| Place of Origin: | Shenzhen |
| Brand Name: | LC |
| Certification: | CE,RoHS,FCC |
| Model Number: | LT-820-5A |
| Input Voltage: | DC5v-DC24v |
| Max Current Load: | 5A*4CH Max:20A |
| Max Outpput Power: | 100W/240W/480W/(5V/12V/24V) |
| Working Temp: | -30-55C° |
| Weight(N.W.): | 175g |
| Warranty: | 5years |
| Dimming range: | 0～100% |
| Input signal: | DMX512 |
| MOQ: | 1pcs |
| Price: | 25-40usd/PCS |
| Packaging Details: | carton box |
| Delivery Time: | 3days |
| Payment Terms: | Paypal,TT,Western Union |
| Supply Ability: | 1000pcs/week |
| Company Info. |
| Shenzhen LED Color CO.,LTD. |
| View Contact Details |
| Product List |

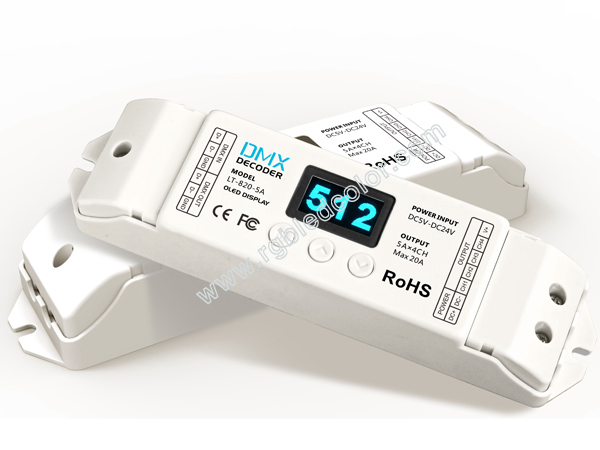

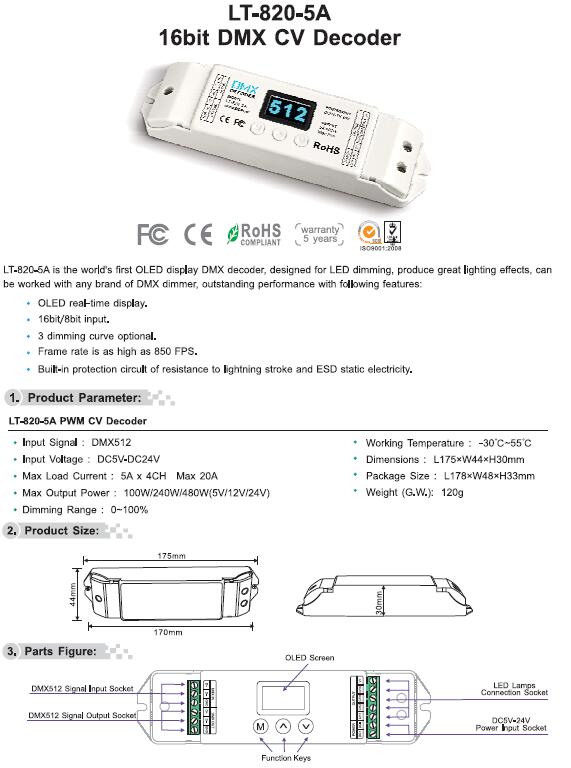

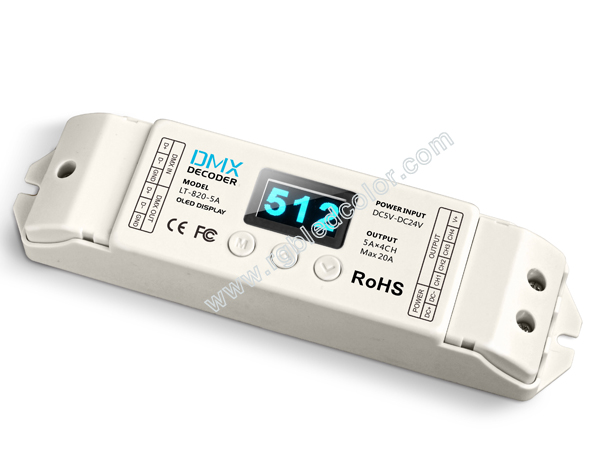

65536 gray scale dmx512 dmx decoder
16bit/8bit DMX signal input,65536 gray scale
| Input signal | DMX512 |
| Input power | DC5V～DC24V |
| Max load current | 5A ×4CH Max 20A |
| Max output power | 100W/240W/480W/(5V/12V/24V) |
| Dimming range | 0～100% |
| Working temperature | -30℃～55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 175g |
