750W,1000W low power servo motor, flange size: 80*80mm SMH80 series servo motor

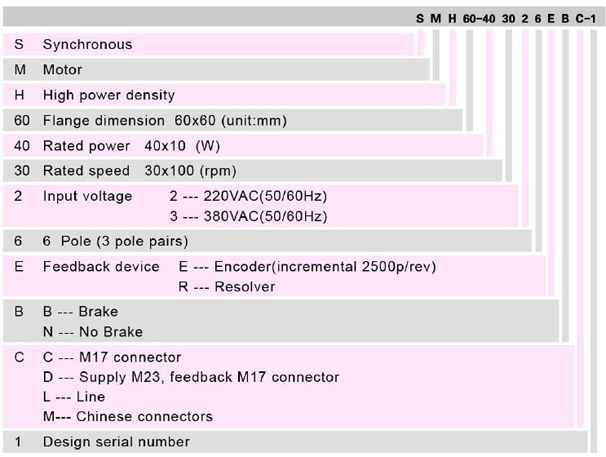

    SMH series servo motor named principle
    SMH80 Technical Information
    Technical Data
    Motor Type
    SMH80—753026xxL
    SMH80—753026xxC
    SMH80—753026xxM
    SMH80—1003026xxL
    SMH80—1003026xxC
    SMH80—1003026xxM
    Rated power Pn (W)
    750
    1000
    Rated torque Tn (Nm)
    2.39
    3.18
    Rated speed nn(rpm)
    3000
    3000
    Rated current In(A)
    3.9
    6.3
    DC Link Voltage UDC(V)
    300
    300
    Maximum torque Tm(Nm)
    7.17
    9.48
    Maximum current Im(A)
    11.7
    18.9
    Standstill torque Ts(Nm)
    2.63
    3.3
    Standstill current Is(A)
    4.29
    6.93
    Voltage constant Ke (V/krpm)
    40
    34
    Torque constant Kt (Nm/A)
    0.662
    0.562
    Resistance line-line RL (Ω)
    1.4
    0.86
    Inductance line-line LL (m H)
    7.5
    4.5
    Electrical time constant τe (ms)
    5.35
    5.23
    Mechanical time constant τm (ms)
    0.75
    0.89
    Rotor moment of inertia Jm (kgcm²)
    1.36
    1.9
    Pole number
    6
    6
    Max. voltage rising du/dt (kV/μs)
    8
    8
    Insulation class
    F
    F
    Max. radial force Fr (N)
    335
    335
    Max. axial force Fa (N)
    167.5
    167.5
    Weight (Kg)
    3.3
    3.9
    Feed back device
    2500p/rev incremental encoder or Resolver (sin--cos)
    Temperature sensor
    n.a.
    Cooling method
    Totally enclosed non-ventilated
    Protection level
    IP65,shaft sealing IP54
    Environmental conditions
    Temperature
    -20℃~40℃
    Humidity
    Below 90%RH(No dewing)
    Environment
    Far away active gas, combustible gas, oil drop, ash.
    Installation altitude
    Up to 1000m:rated power
    Above 1000m:1.5% power
    Decreasing per 100m,max.4000m
    Rating
    conditions
    Mounting
    Black Aluminum flange 255×255×6mm
    Temperature
    60K housing temperature rising at 40℃ ambient
