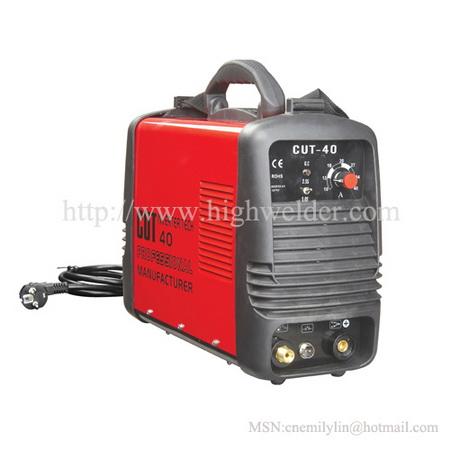

Inverter DC Air Plasma Cutter-CUT-40(B2)

1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with CE, EMC and LVD standards.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Starting arc with or without contact, useable curve cutting celerity, no curliness, stable output and long working life, able to be operated continuously.
5.Suit for steel, stainless steel, plate steel, aluminum, copper and all kinds of metal plates.
6.With complete accessories.
7.Carton box.

ItemData	CUT-30	CUT-40	CUT-50	CUT-60
Rated Input Voltage(V)	230	230	230	230
Input Capacity(KVA)	3.5	4.8	5.0	7.8
No-load voltage(V)	244	244	244	244
Rated current(A)	10-30	20-40	20-50	20-60
Output voltage(V)	92	96	100	104
Rated duty cycle(%)	60	60	60	60
Efficiency(%)	85	85	85	85
Class of Insulation	B	B	B	B
Case Protection Degree	IP21S	IP21S	IP21S	IP21S
Arc-Starting	Torch	Torch	Torch	Torch
Weight(kg)	11.4	11.4	11.4	19
Dimenision(cm)	47.5X25X38.5	47.5X25X38.5	47.5X25X38.5	53X24.5X39

Product Tags:


*From:	Your email address is incorrect!
*To:	HIGH WELDING MANUFACTURE CO.,LTD-WENZHOU LONGWAN FOREIGN TRADE CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Inverter Air plasma cutter
Place of Origin:	China
Model Number:	CUT-40(B2)
Certification:	CE
