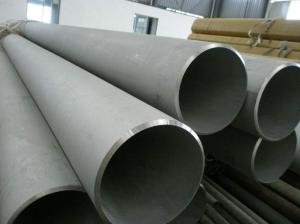

Longitudinally Welded Stainless Steel Tubes BS6323-8 for machinery industry

Categories Stainless Steel Tubes
Place of Origin: China
Brand Name: Torich
Certification: ISO9001, TS16949
Model Number: BS6323-8
MOQ: 3TONS
Price: NEOGITATION
Packaging Details: IN BUNDLES
Delivery Time: 30-60 DAYS
Payment Terms: T/T,L/C
Supply Ability: 60000 TONS PER YEAR
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Longitudinally Welded Stainless Steel Tubes BS6323-8 for machinery industry

BS6323-8 Seamless and Welded steel tubes for automobile,mechanical and general engineering purposesPart

8: Specific requirements for longitudinally welded stainless steel tubes

Size range: O.D.:6-280mm W.T.:1-30mm L:max12000mm

Applications: for Auto industry / for machinery use/mechanical and general engineering purposes

Steel Grade and Chemical Compositions:

Note: Special steel grade is also available, according to customer request

Mechanical properties

Designation

BS 1449-2:
equivalent

KM (as welded)

GKM(S),GZF(S)(welded and sized fully softened)

GBK (S),and GZF(S)(cold finished ,fully softened)

Re min.

Rm min.

A min.

Re min.

Rm min.

A min.

Re min.

Rm min.

A min.

N/mm2

N/mm2

%

N/mm2

N/mm2

%

N/mm2

N/mm2

%

LW 12b


300

400

10

_

_

_

_

_

_

LW 19b

409S19

300

400

10

200

350

20

_

_

_

LW 20

304S11

420

520

25

185

480

30

_

_

_

LWCF 20








185

480

30

LW 21

304S15

450

560

25

210

510

30

_

_

_

LWCF 21








210

510

30

LW 22

316S13

420

520

25

185

480

30

_

_

_

LWCF 22








185

480

30

LW 23

316S33

450

560

25

210

510

30

_

_

_

LWCF 23








210

510

30

LW 24

321S31

450

560

25

210

510

30

_

_

_

LWCF 24








210

510

30


Tolerance on specified cut lengths

Specified cut length

Tolerance

over

up to and including

mm

mm

mm


500

+

2



-

0

500

2000

+

3



-

0

2000

5000

+

5



-

0

5000

7000

+

10



-

0

7000

__

by agreement

NOTE Closer tolerances may be obtained by agreement between the purchaser and manufacturer.



Tolerance on diameter of as-welded and sized tube

Outside diameter

Tolerance

over

Up to and including

mm

mm

mm


30

±0.15

30

50

±0.18

50

70

±0.25

70

90

±0.35


Tolerance on diameter of fully softened tube

Diameter to thickness ratioD/a

Tolerance

over

up to and including


mm

_

40

1.5 times value in Table 2

40

60

Twice the value in Table 2

60

_

2.5 times value in Table 2
