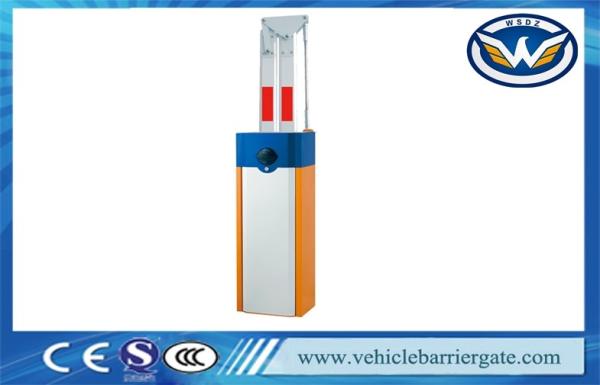

Water Proof Parking Lot Management System Automatic Road nice barrier gate

Water Proof Parking Lot Management System Automatic Road nice barrier gate

WSTP-116 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:

• Product Descriptions:

​ 1) Open/close time: 0.6/1/1.8/3 / 6 sec. (high speed optional)

2) Barrier gate life-span: >5,000,000 times

3) Suit application: indoor and outdoor parking system

4) Open/close method: by remote control, push key, manual handle

5) Max. 6m straight arm with rubber bar

Max. 4.5 m folding arm with rubber bar

Max. 4m fence arm with rubber bar

6) Inclusive of arm and "push button" which opens/closes barrier

7) Standard quotation include barrier gate body, straight bar, push key control panel, two remote controllers, exclusive of LED light bar, loop detector, boom bracket and anti-collision mechanism (wave pressure sensor, PIR sensor): need to buy separately.

8) Optional housing color: yellow/iron gray (default), red/iron gray, other color for optional

9) Optional boom arm direction: leftward or rightward (fixed after order)

• Techinical Specifications

  Name	Automatic road barrier
  Speed Time	0.6s/1s/1.8s/3s/6s
  Arm Type	straight arm,fence arm,folding arm
  Voltage	AC110/220V,50/60HZ
  Remote control	≤30 meter
  Housing material	2.0mm thickness clod rolled steel sheet
  IP level	IP54
  Net weight	55 KG
  Operating temperature	-25°c -55°c
  Humidity	10%-95%

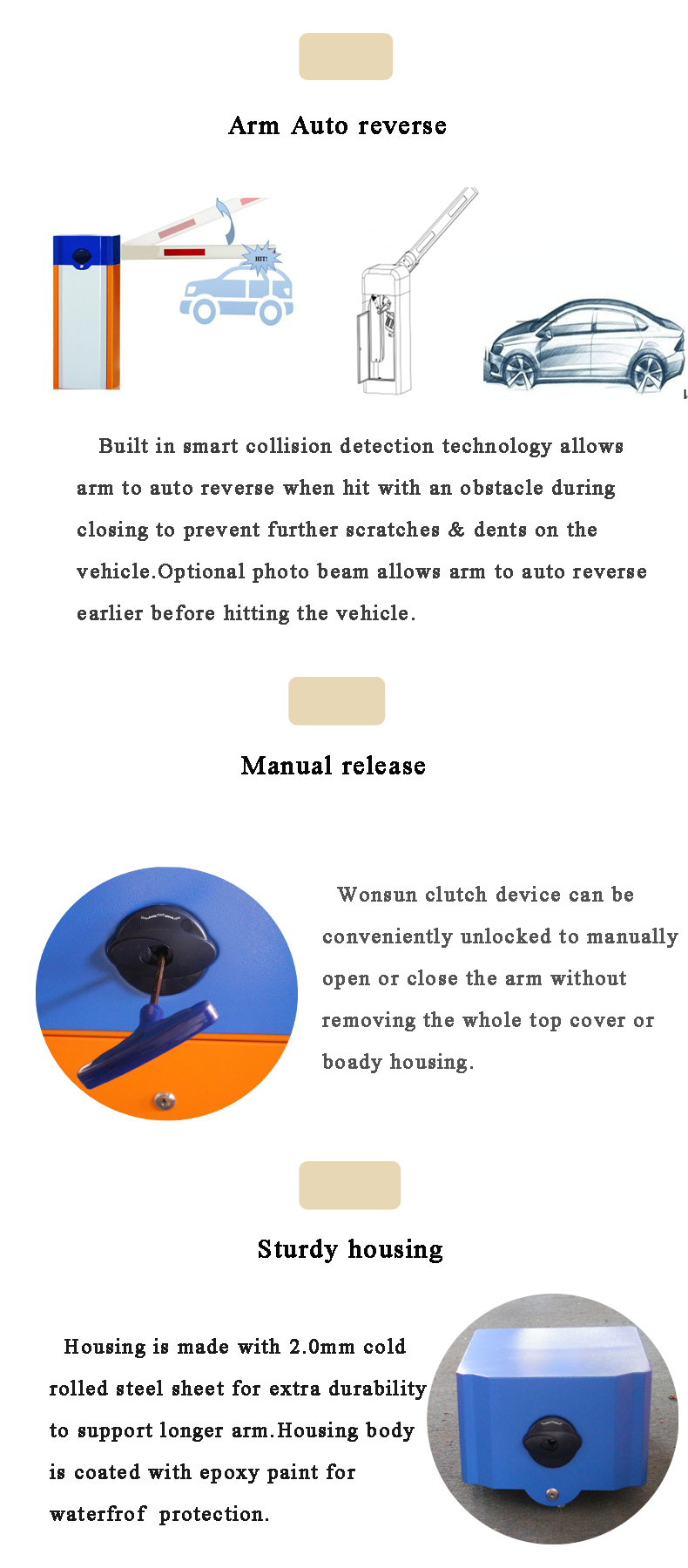

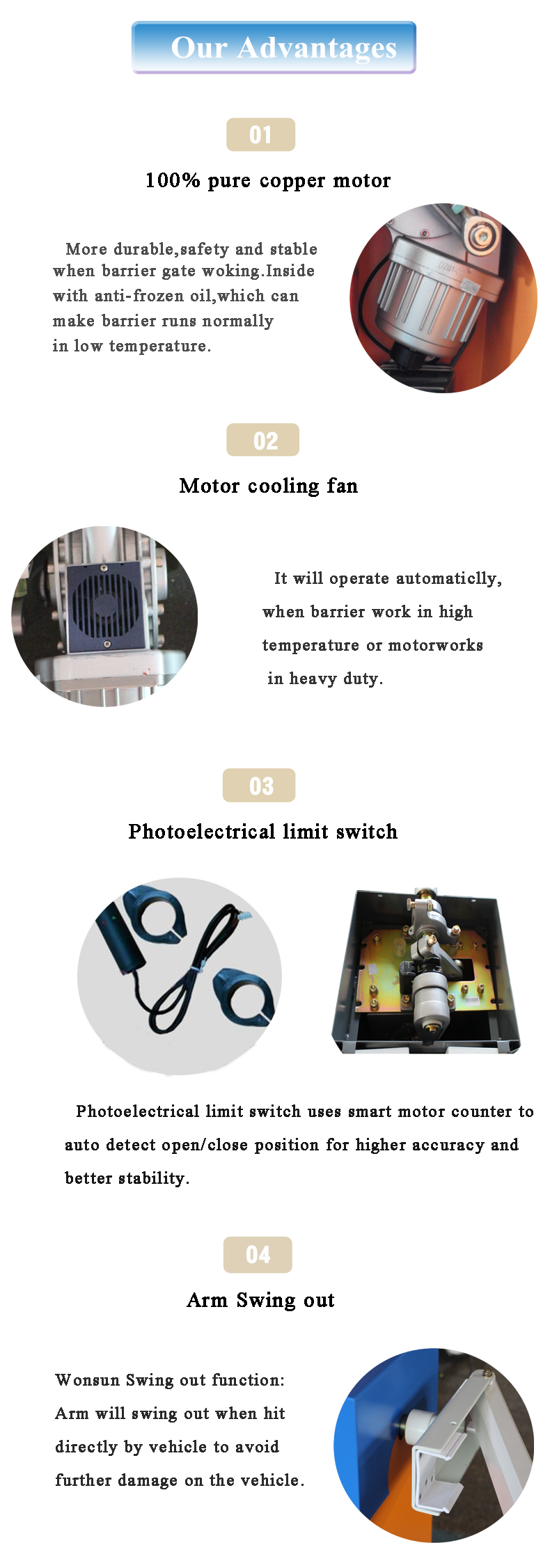

• Pictures of Main Function:

​
