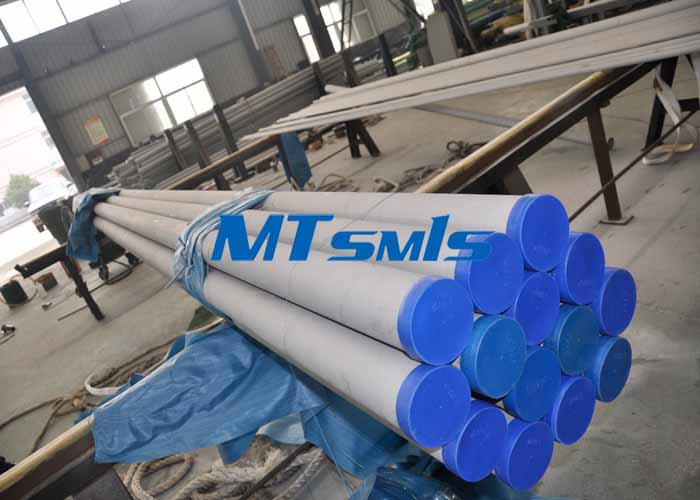

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG

Categories Stainless Steel Seamless Pipe
Brand Name: MTSCO
Model Number: MTSCOSSSP22
Certification: ISO 9001 & PED & AD2000
Place of Origin: CHINA
MOQ: negotiable
Price: 2900-10000USD/TON
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
Delivery Time: 30 Days
Packaging Details: Plywood Case
Material: 300 Series
Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test
End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless
Inspection: 100%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG

EN10216-5 TP317 / 347H Stainless Steel Pipe , 14BWG, 18BWG, 20BWG


Chemical Composition


C(max)Si(max)Mn(max)P(max)S(max)CrNiMoTi
TP304/1.43010.0801.002.000.0450.03018.0-20.08.0-10.5
TP304L/1.43070.0351.002.000.0450.03018.0-20.08.0-12.0
TP304H/1.49480.04-0.101.002.000.0450.03018.0-20.08.0-12.0
TP316/1.44010.0801.002.000.0450.03016.0-18.011.0-14.02.0-3.0
TP316L/1.44040.0351.002.000.0450.03016.0-18.010.0-14.02.0-3.0
TP316Ti/1.45710.0801.002.000.0450.03016.0-18.010.0-14.02.0-3.00.7>5x(C+N)
TP321/1.45410.0801.002.000.0450.03017.0-19.09.0-12.00.7>5x(C+N)
TP317L/1.44490.0801.002.000.0450.03018.0-20.011.0-14.03.0-4.0
TP347H/1.49120.04-0.101.002.000.0450.03017.0-19.09.0-13.0
TP309S/1.48330.0801.002.000.0450.03022.0-24.012.0-15.00.75
TP310S/1.48450.0801.002.000.0450.03024.0-26.019.0-22.00.75

Industry & Advantage

Application

a) For fluid & gas transport

b) Structure & machining etc

Advantages

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc


Birmingham Wire Gauge BWG
 Wall Thickness Wall Thickness
BWGINMMBWGINMM
---190.0421.07
---200.0350.89
140.0832.11---
150.0721.83---
160.0651.65---
170.0581.47---
180.0491.24-- -


MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
