Fail Safe Electric Bolt lock for surface installation 2 wires, LED

Categories Electric Bolt Lock
Brand Name: JUNSON
Model Number: JS-1504N
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 10pcs
Price: negotiation
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Delivery Time: 2-7 working days after received your payment
Packaging Details: Packed in carton
Product Name: Electric bolt lock
Holding force: 500kg
Power supply: 12V
Timer adjuster: 0-9S
Application: Metal, glass, or wooden door
Feature: Fail safe
Signal out: N/A
Open sensor: magnet switch sensor
Material: Zinc Alloy
Suitable for: Glass Door,/ wooden doors / metal doors,Secure Locking of furniture (Wooden & Aluminum& Metal Furniture frame),Access Control,External Installation For Narrow Door
Finish: Surface Finished
Working temperature: -20℃ ~ +65℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

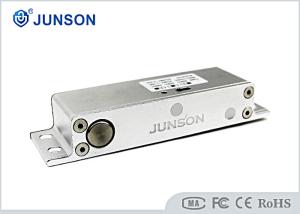

Fail Safe Electric Bolt lock for surface installation 2 wires, LED

Model: JS-1504N


Specification:

Fail Safe:unlock when power off
Material size:Aluminum alloy
Lock Size:150L*36W*26H (mm)
Magnet bracket:85Lx32Wx26H(mm)
Lock pin:15mmDIA,stainless steel out throw15mm
Voltage:DC12V
Current:

Start: 1.15A

Standby: 0.22A

Holding force1000kg
Available forWooden door, metal door, fireproof door
LED indicateRed to open, Green to lock
Auto relock Timer jumperadjustable (0/3/6S)
Surface Temp:≦20℃
Induction Distance8mm
Operating temp:-10~+25℃(14-131F)
Operating Humidity:0~90%(non-condensing)
Face place material:Anodised Aluminium
Weight:0.6kg
Standard Packing:30pcs.
Carton size:54*29*27 CM

Description:


Feature

▶Low Temperature, safe & Durable

▶Low Power, Environmental Protection

▶MOV Provides Reverse Current Protection

▶Special Designed Solenoid for Strength and Long Life with 500000 Operations

▶Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt

▶With Led indication, red to open, green to lock

▶Easy to install, no need punching in the door frame.

CE Certificate by European Union, MA China Public Security office


Quality Guarantee:


Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years

warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,

please browse our service center.


We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike,

Electric bolt lock, Electronic lock. Door lock. Ac
