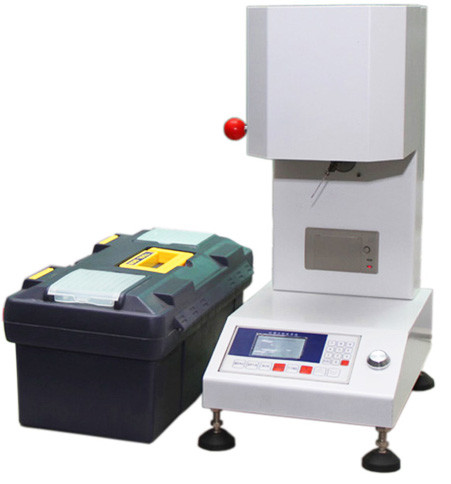

MFI Tester Plastic Testing Equipment Melt Flow Index Tester for PP
PE ABS
Discription:
Melt Flow Indexer is a high precise melt testing instruments for
the measurement of melt flow rate (MFR)/(MI) and melt volume rate
(MVR) in quality control and research applications.
It's suitable to measure melt flow character of PP, PE, POM, ABS
plastics and plastic productions, widely used in factories,
products quality testing station, scientific and research
institutes, and concerned industries.
Standards:
GB/T3682-2000,ISO1133-97, ASTM1238
Characteristics:
- Fast heating speed, very small overshoot.
- High precision of constant temperature.
- Can fastly recover to constant temperature condition after padding.
- Can use maunal and automatical material trimming test method.

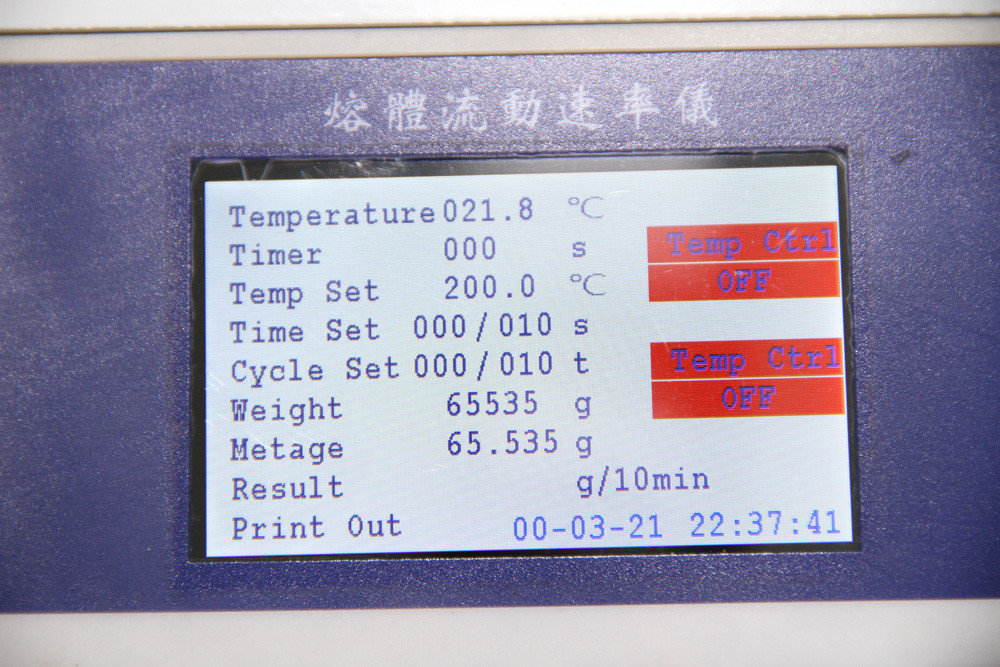

- LCD display, equipment with built-in micro printer, test result can
be printed automaticaly.
Technical parameter:
Machine size(W*H*D) | 250*510*350mm |
Power | AC220V±10% 50Hz |
Barrel parameters | Inner hole 9.55±0.025mm |
Pistons parameters | Piston head: 9.475±0.015mm |
Piston length | H=6.35±0.1mm |
Paramters | Extrusion hole 1=2.095±0.005mm |
Temperature parameter | With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade |
Temperature rangeradius | 400℃ |
Temperature accuracyblade to jawand dust collector | ±0.2 ℃ |
Display resolution | 0.1℃ |
Maximum comsuption | < 600W |
Temperature recovery time | less than 4 min. |
Weight parameters |
Weight accuracy | ±0.5% |
Basic configuration | 0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.kg, 10.0kg, 12.kg, 21.6kg |
Position detection |
Loop distance from up and down | 30mm |
Control precision | ± 0.1mm |
Test flow control |
Times of cutting the material | 0~10 times |
Material cutting interval | 0~999s(set reference Table 2) |
Control flow reaches the set temperature without volatility |
Barrel temperature time | 15 min. |
Material be installed | 1 min |
Material sample temperature recovery time | 4 min. |
When binder set | 1min |
