Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel

Categories Stud Roll Forming Machine
Place of Origin: China
Brand Name: Friendship
Certification: ISO
MOQ: One set
Price: as per client requirements
Packaging Details: plastic film or plywood box
Delivery Time: 60days
Payment Terms: T/T or LC
Supply Ability: 10 sets per months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

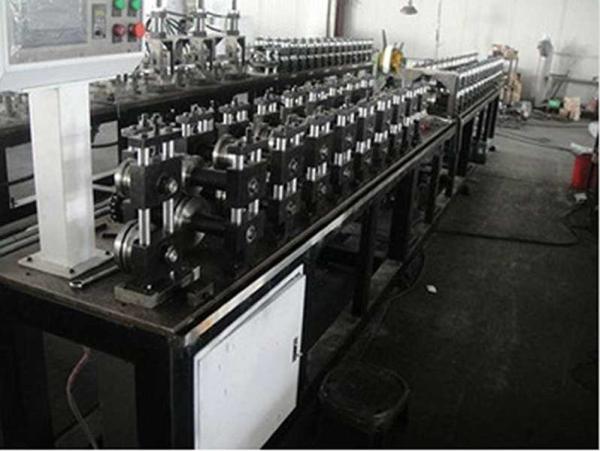

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel

Roof Ceiling Batten, Omega Channel Roll Forming Machine For Furring Channel
Technical parameter of ceiling panel roll forming machine:

No.

item

speciafication

1.

processing material

GI strip coils

2.

processing thickness

0.3-0.6mm

3.

productivity

15-20m/min

4.

roller material

Cr12

5.

number of roller stations

12

6.

roller driven

decelerating motor+chain transmission

7.

diameter of shaft

Φ60mm

8.

length measurement

encoder

9.

cutting mode

hydraulic cutting device

10.

operation mode

button+touch screen

11.

control style

PLC

12.

driven system

single

13.

total power

8kw

14.

voltage

380v 50hz or as your requirements

Working flow:
Cantilever decoiler----feeding----rollforming----straightening----hydraulic cutting----run out table
Application:
Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss,etc.
