IRD (Integrated Receiver Device) HD IRD (DVB-S/S2/C/T，ISDB-T IRD) 397X

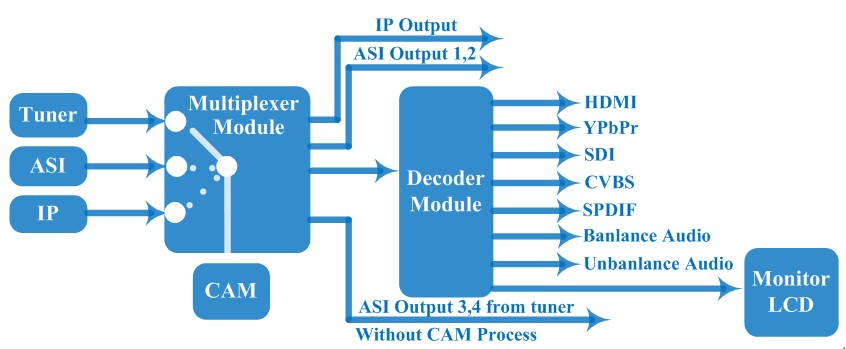

Input Interface

Tuner

1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional)

DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM

DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds

DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth

DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth

DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds

ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth

ATSC-T: 54MHz~858MHz, 6M bandwidth

ASI

1 ASI IN(support 188/204 package format)

IP

1 IP over UDP, RTP/RTSP (100M, RJ45 Port)

Output

ASI Output

2 ASI output(after multiplexer)

2 ASI output(tuner input pass through)

IP output

(UDP, RTP/RTSP)

1 MPTS output

8 SPTS output

NDS397x only

32 SPTS output

NDS399x only

Video Output

1xCVBS(BNC): 576i@25fps, 480i@29.97fps

1xYPbPr(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps

1xHD/SD-SDI(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps; 480i@29.97fps

1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps

Audio Output

Stereo unbalanced audio: BNC interface

Stereo balanced audio: XLR interface

Digital audio: SPDIF

Video Decoding

MPEG-2, MPEG-4 (4:2:0)

Audio Decoding

MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC

NMS Port

Ethernet Port

10/100M

Protocols

TS Over IP: UDP

NMS: TCP/IP

System

Management: front panel (LCD + Keyboard);

Network (NMS/SNMP);

Web Management

English and Chinese interface conversion

Ethernet port for CPU/FPGA upgrade

USB port for decoder upgrade

LCD Monitor for decoding video

Miscellaneous

Dimensions

482mm*455mm*44.5mm ( L×W×H)

Approx weight

3.2kg

Power

<20W(Max)

Temperature

0~45℃(Operating), -20~80℃(Storage)
