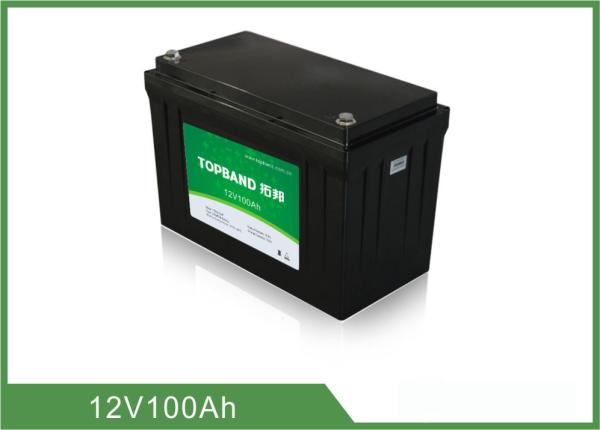

Name: Wireless Floor Scrubber Battery 12V 100Ah OEM ODM Available
Brand: Topband
Price: 1 USD

Home > Wrenches >

Wireless Floor Scrubber Battery 12V 100Ah OEM / ODM Available

Categories	Floor Scrubber Battery
Brand Name:	Topband
Model Number:	TB-BL12100F-M110D
Certification:	CE, UN38.3, ISO9001, ISO14001,MSDS,UL1642
Place of Origin:	China
MOQ:	100
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	450Mwh/year
Delivery Time:	2~4weeks for samples; 4~6weeks for mass production
Packaging Details:	standard export carton
Material:	Lifepo4
Nominal Voltage:	12.8V
Normal Capacity:	100Ah
Communication function:	Bluetooth
Warranty:	2 years
Weight:	12.2KG
Dimension:	318x165x215mm
Cycle life:	≥ 2000 cycles

Contact Now

Add to Cart

Company Info.

Shenzhen Topband Battery Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

long life & deep cycle( over 2000cycles @ 100%DOD)
with built-in PCM/BMS protection
super quick charge/discharge performance
safe pressure valve design ( no explosion, no fire)
high energy density
low self-discharge( <3% per month,<15% per year)
1/3 weight & 1/2 volume of lead acid battery
eco-friendly
high consistency
no memory effect
easily replace lead acid battery
patent Bluetooth connection feature optional, enable IOS & Android app to monitor instant battery status(SOC, battery voltage, remain AH, charge current, temp., life cycle, error).

1. Smart Lithium battery 12V 100Ah Specification

1	Nominal Voltage	12.8V
2	Normal Capacity	100Ah
3	Internal Resistance	≤20mΩ
4	Battery operation temperature range @charging	0~45℃
5	Normal charge voltage	14.6±0.1V
6	Recommended float charge voltage (for Standby use)	13.9±0.1V
7	Allowed MAX charge current	80A@Battery initial Temp 25±5℃
8	Recommended charge current	≤60A
9	Battery operation temperature range @discharging	-20~60℃
10	Output Voltage Range	8.0~14.6V
11	Allowed discharge current	100A withstand 30min @Battery initial Temp 25±5℃
12	Pulse discharge current	350A withstand 3s
13	Discharge Cut-off voltage	8.0V
14	Dimension	Length 318mm Width 165mm Height 215mm
15	Weight	Approx. 12.2Kg

2. Smart Lithium battery 12V 100Ah Electrical Characteristics & Test Condition
@Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

NO	Items	Criterion		Condition
1	Min Capacity	≥97Ah		Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the cutoff voltage. you can stop and define the Discharging current*time value (Ah) as battery capacity.
2	Cycle life (DOD%100)	≥2000cycle		Charge / CC(0.33C)/CV(14.6V); End current : 0.05C; Rest time : 1h; Discharge / CC(0.5C); End voltage : 8.0V; Repeat above process until discharge capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
3	Discharge Temperature Characteristics	-20℃	≥70%	At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
		0℃	≥80%
		25℃	100%
		55℃	≥95%
4	Charge Retention ability	remain capacity≥90%		Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

3. Smart Lithium battery 12V 100Ah advantage

Green product: LiFePO4 material is no harm to enviroment and human being .
Cycle life: More than 2000 cycle times
Very safe: It have the best safety and steady performance,no fire ,no exploding under the condition of over-charge.
Light weight and smaller dimension: The dimension compares with other battery.about 1/2-2/3 weight of lead acid
Great capacity and more powerful,rechargeable battery: We can install many single cells in series and in parallet and it can fully discharge
No memory effect: It can be recharged anytime,no reduction of the capacity

4. Application:

· Energy Storage Systems (ESS)

· Hybrid Grid back-up

· Remote area power systems

· Communications systems

· Electric vehicles

· Marine environments

· Military & Aviation

· Industrial Machinery

· Uninterruptible Power Supplies

· CCTV & Data Transfer

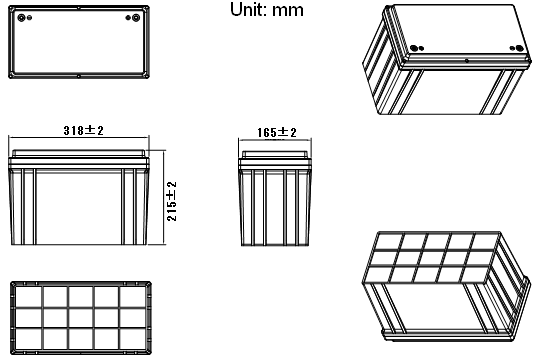

5. Smart Lithium battery 12V 100Ah dimension
