1-ch Video with 1-ch RCA audio over fiber,singlemode/Multimode,FC/ST/SC Optional,0-20KM

Similar Products:

1.1~16 channels Bidi analog video with 1-ch Bidi RCA audio to fiber converter

2.1~16 channels RCA audio over fiber optic

3.1~16 channels 3-pin XLR banlanced audio over fiber optic

4.Video+Ethernet+data +Audio to fiber optic

5.4K SDI,4K HDMI,4K DVI over fiber extender

Specification:

1ch Video+1ch Stereo Audio(RCA) To Fiber Optic support 1-channels of 8-bit digitally encoded broadcast quality video + 1-channels stereo Audio(RCA) over one multi-mode or single-mode opticalfiber. The devices are directly compatible with NTSC, PAL, and SECAM camera systems.

These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Features

• 8-Bit Uncompressed Video Transmission

• NTSC, PAL or SECAM Video Compatible

• 24-Bit Digitally Encoded Audio

• Support Point-to-Point or Daisy-Chain connection

• Multimode Fiber transmit up to 4km without Optical Attenuation

• Single-Mode Fiber transmit up to 100km without Optical Attenuation

• No EMI, RFI, Cross Talk or Video Distortion and no ground loops

• LED Indicators for Instant System Monitoring

• Standalone or Rack Mount in FVC14 Chassis

• Produce according to customer's specifications,providing OEM

Specifications

Video
Number of Channels	1
Input/output impedance	BNC 75Ω (unbalance)
Video bandwidth	5HZ—7.5MHZ
Standard video input/output voltage	1.0Vp-p
Video voltage range	0.6~2.0Vp-p
Differential Gain	< ±1.5%
Differential Phase	< ±1°

Audio
Input/output Impedance	600ohm(unbalance)
Max input/output voltage	3.0Vp-p
Frequency Response	10 Hz～29kHz @±3dB
SNR	> 70dB
Connector	RCA

Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 900V~240V
Power Consumption:	< 3W
Stand-Alone Dimensions:	104mm × 104mm × 28mm
Shipping Weight:	(include Transmitter & Receiver ) 0.8kg

Environmental
Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

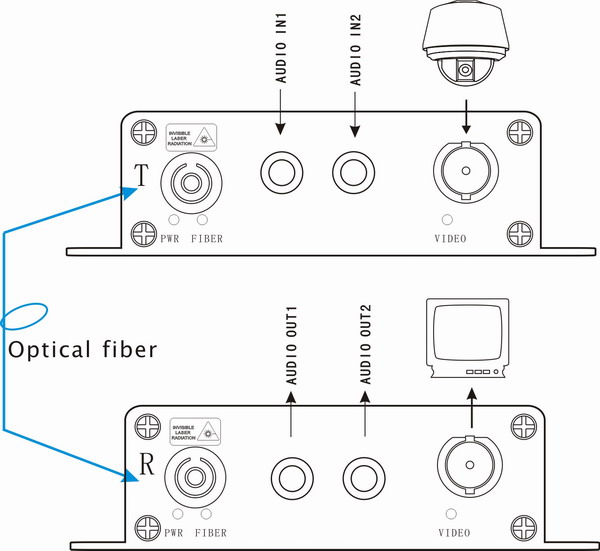

System connection diagram

1ch Video+1ch Stereo Audio(RCA) To Fiber Optic connection

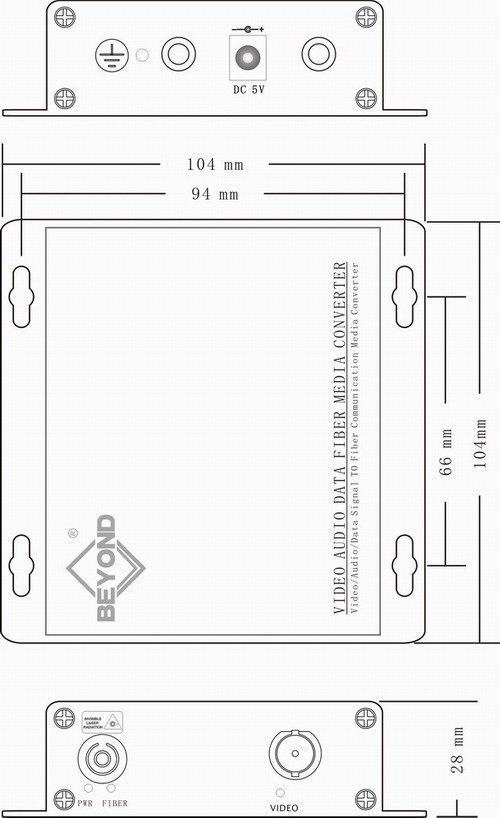

Standalone Dimensions

1ch Video+1ch Stereo Audio(RCA) To Fiber Optic Dimensions
