| Categories | Borehole Inspection Camera System |
|---|---|
| Place of Origin: | Chongqing,China |
| Brand Name: | GOLD |
| Certification: | ISO9001 |
| Model Number: | GYGD-2 |
| MOQ: | 1 set |
| Price: | $1000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 10 working days |
| Payment Terms: | FOB/CIF/CFR |
| Supply Ability: | 100 sets/month |
| Camera probe Diameter: | 50/80mm |
| Camera probe Length: | 470mm |
| Camera lens: | are manufactured with high-quality resins |
| Camera body: | High-quality steel with solid structure, not easy to be damaged. |
| Maximum bearable pressure: | 20Mpa (can reach the depth of 2000m under water) |
| LED: | 6-12 LED lamps are available |
| Camera specification 1: | Sony inducer 1/3’’ CCD |
| Camera specification 2: | HD 850 TVL image definition |
| Camera specification 3: | Waterproof |
| Camera specification 4: | panoramic lens camera |
| Specialized cable length: | 0-2000m (optional) |
| Downhold pulley: | Logging depth counter equiped |
| Logging winch: | Manual & electric winch available |
| HD DVR: | SD card |
Main application:
Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring
Main features:
Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary
drilling hole
Widely used in water well, oil field, coal field, engineering
geology, dam, reservoir,
oceaneering.

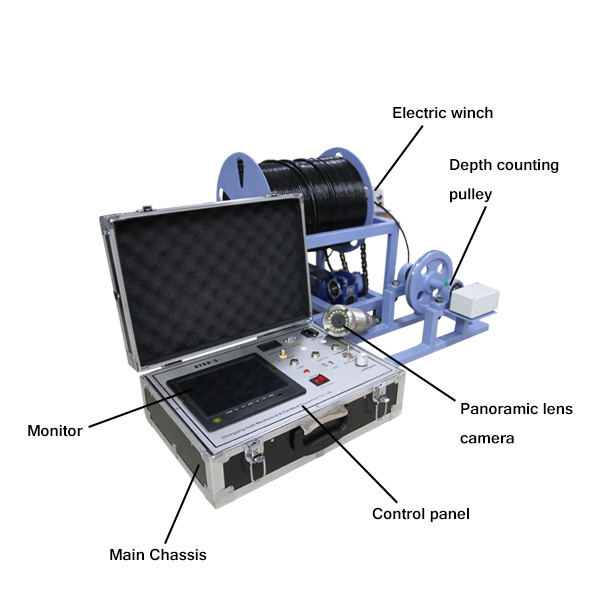

Main Specification:
| No. | Configuration | Dimension | Specification |
| 1 | Camera probe | Diameter: 50/80mm Length: 470mm | 1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to be damaged. 3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water) 4. 6-12 LED lamps are available |
| 2 | Camera | 1. Sony inducer 1/3’’ CCD 2. HD 850 TVL image definition 3. Waterproof 4. Panoramic lens camera | |
| 3 | Specialized cable | Length: 0-2000m (optional) | 1. With steel wire 2. Max bearable tension: 260kg |

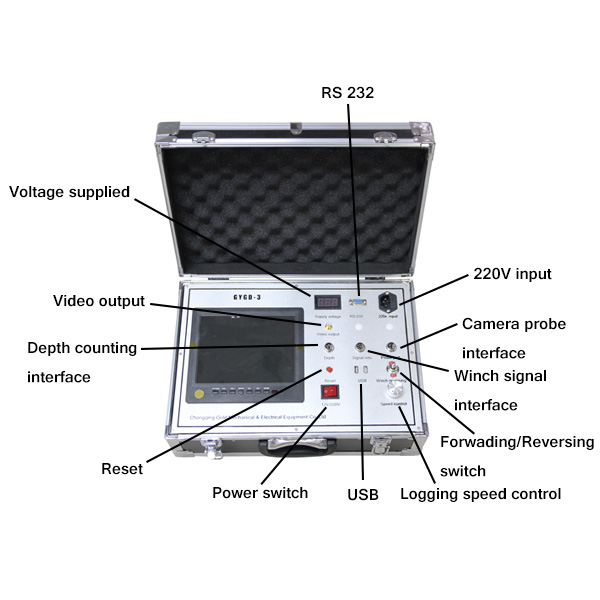

| 4 | Control unit | 1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case | |

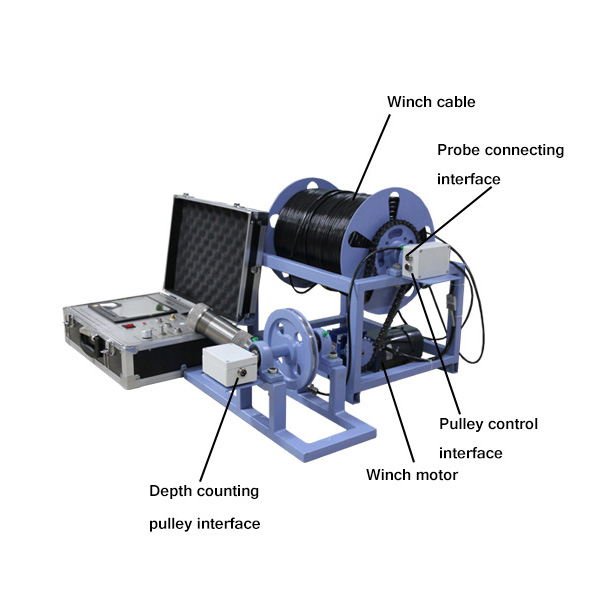

| 5 | Downhold pulley | Logging depth counter equiped | |
| 6 | Logging winch | Manual & electric winch available | |
| 7 | HD DVR | SD card |
Contact Information
Jimmy Yin
Chongqing Gold Mechnical & Electrical Equipment Co.,Ltd
Add: No.2501, China Resource Building, Xiejiawan Street, Jiulongpo District, Chongqing, China.
Website: www.geophysical-equipments.com
Email: gold02@hy-industry.com
Mobile/WhatsApp/Skype: +86-15998954947
Tel: +86-23-62794421 Fax: +86-23-62940030
|
