Place of Origin: | China |
Brand Name: | China Coal |
Certification: | ISO,MA,CE,SGS,TUB,BV |
Model Number: | CE Certification KXJ5050 Case Erector and Bottom Sealer, Carton Erecting Machine |
MOQ: | 1 set |
Price: | CONSULTATIVE |
Packaging Details: | carton box,plastic bags,wooden cases or as your requirement |
Delivery Time: | shipped in 3days after payment |
Payment Terms: | TT/L/C/Wester Union/ Paypal |
Supply Ability: | 5000 sets/month |

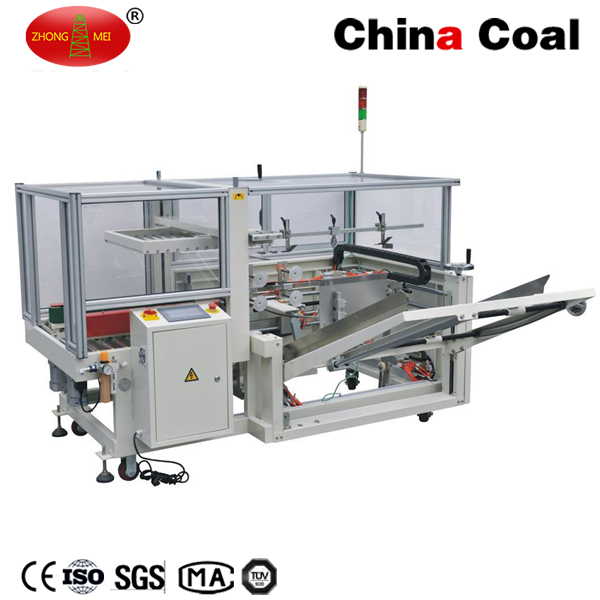

Case Erector and Bottom Sealer, case sealer, carton erecting machine
ChinaCoal02
www.chinacoalintl.com
www.leadingpacking.com
zhongmeixx12@gmail.com
KXJ5050 Carton Erector & Bottom Sealer characteristic:
Vertical storage is adopted for storaging carton blanks,for which carton blanks can be added at any time without stopping the machine;It's suitable for forming and sealing cartons of the same size.If carton size need to be changed,the operator should adjust the machine manually(finishing in 2-3 minutes);It's rationally designed so that the forming,folding and sealing process are accomplished simultaneously;All the parts are precise and durable,without causing any vibration in running .Running steadily with long life;Light in weight,high performance and speed.
Model | KXJ5050 |
Carton Size | L200~450mm/W150~400mm/H100~350mm |
Table height | Min.H600 Max.H720mm |
Speed | 1-10 box/min |
Dimension | L2000*W1900*H1450mm |
Power supply | 220V/380V 50/60HZ |
Air source | >500L/min,0.4~0.8Mpa |
Tape | W48mm-W60-75mm*L1000 |
Machine weight | NW-400kg GW-550kg |
![]() |
