Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer

Categories Desktop RFID Reader
Brand Name: Andea Electronics
Model Number: RD202BL
Pla of Origin: CHINA
MOQ: 1 Piece
Pri: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500~1000 Sets Per Month
Delivery Time: 3~5 work days
Packaging Details: Standard Export Carton, Foam and Protective Film
Place of Origin: CHINA
Compatible Protocols: ISO 15693 and ISO 18000-3M1
Reading Range: 40cm
Misreading Range: ≤10cm
Communication Interface: RS232
Metal Shielding: Support
Host And Scan Mode: Support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer

13.56MHz Desktop Pad RFID Antenna Integrated With Reader RF Power Adjustable

Product Introduction:


RD202BL is an all-in-one desktop RFID reader which is compatible with ISO15693 and ISO18000-3M1 protocols. It is a low cost and low power consumption model specially designed for reading one tag each time. It is allowed to be used on metal, which is rarely seen in an HF reader.


Product Features:


  • Operating Frequency: 13.56 MHz
  • Support ISO 15693 and ISO 18000-3M1 protocols
  • Reading Range: 18cm (The range is also related to the tag performance)
  • RF Power 0.25~1.5W
  • Integrated design with reader and antenna
  • Metal shielding design to work normally even it is plad on the metal desktop
  • Support host and scan work mode (Setup through software)
  • Be capable of automatically turning off RF when at task idle

Technical Specification
ModelRD202BL
Operating Frequency13.56 MHz
Compatible ProtocolsISO 15693 / ISO 18000-3
RF Power0.25~1.5W
Communication InterfaceRS232
Reading Range40cm
Misreading Range≤10cm
Working VoltageDC 12V
Max Power Consumption3.5W

Metal Shielded Design

Support

Housing MaterialAcrylic And Aluminum Alloy
Dimension410*300*29mm
Weight3150g


Product Application:


This compact, modern designed reader/writer is specially designed for RFID library management, self-service books borrow and return, etc.

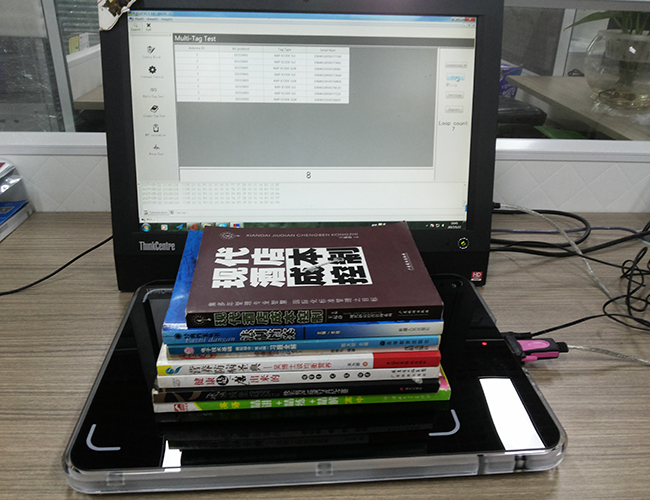

Demo Test Picture :



Cheap Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer for sale
