| Categories | RFID Reader Antenna |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | DA3807S |
| Pla of Origin: | CHINA |
| MOQ: | 1 Piece |
| Pri: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Delivery Time: | 3~5 work days |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Place of Origin: | CHINA |
| Housing Material: | Acrylic |
| Color: | Silver |
| Max Support Power: | 4W |
| Feeder Length: | 2.5m |
| Dimension: | 300*300*23mm |
| Weight: | 1870g |
| Company Info. |
| Guangzhou Andea Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Introduction:
Andea Electronics offers a selection of 13.56 MHz RFID Antennas with key protocols designed to be used in conjunction with 13.56 RFID readers to ensure high read rates and optimized performance. These kinds of antennas are available at the 13.56 MHz frequency and supports various protocols such as ISO15693 and ISO18000-3. The 13.56 MHz antennas are able to optimize particular environments to obtain the highest possible read rate when paired with the appropriate reader. Moreover, these devices have 50Ω impedance, which means that they have effective resistance to alternating current, arising from the combined effects of Ohmic resistance. Additionally, our antennas have the SMA RF interface and have a storage temperature capacity that can range from -25 °C to 70 °C. Another key characteristic of the 13.56 MHz antennas is that most of them have a maximum power of 4W, nevertheless, some of them have a maximum power of 1.5W. Our antennas offer a read range 50CM depending on the specific characteristics of the device.
We offer 13.56 MHz RFID antennas in different form factors and materials. Most are built with durable, resistant materials such as ABS and acrylic and come in convenient colors such as white, black, and gray to fit into the decoration of any environment. Most 13.56 MHz antennas are sold with a mounting kit for easy installation.
| Technical Specification | |

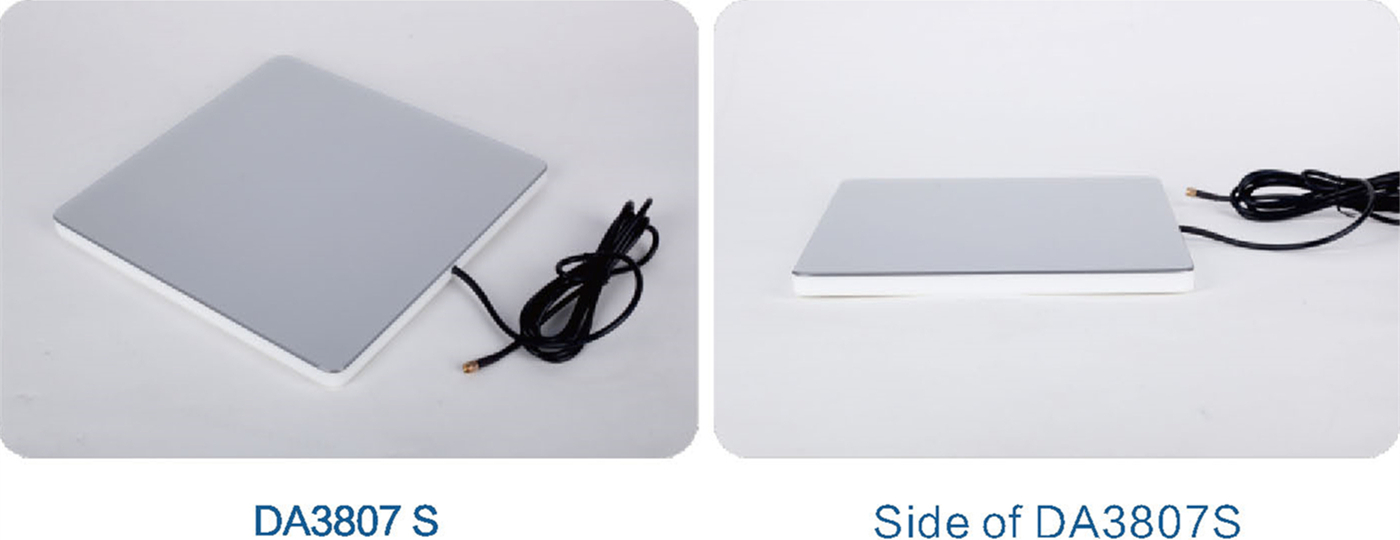

| Model | DA3807S |
| Operating Frequency | 13.56 MHz |
| RF Interface | SMA |
| Reading Range | 50cm |
| Antenna Impedance | 50Ω |
| Max Support Power | 4W |
| Feeder Length | 2.5m |
| Housing Material | Acrylic |
| Dimension | 300*300*23mm |
| Weight | 1870g |
Product Application:
RFID jewelry management, RFID books tagging, library books check in or out, other tag statistics fields, etc.
|
