Industrial Digital High Resolution Microscope Camera 5MP USB3.0 NCC-5MP USB3.0

Categories Digital Microscope Camera
Model Number: NCC-5MPUSB3.0
Place of Origin: China
MOQ: 1set
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Packaging Details: Carton
Sensor: 1/2.5” Color 5megapixel CMOS
Pixel Size: 2.2μmm*2.2μm
Frame Rate: 14fps@2592*1944
Definition: 2592*1944
Scanning Mode: Progressive
Data Interface: USB3.0
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

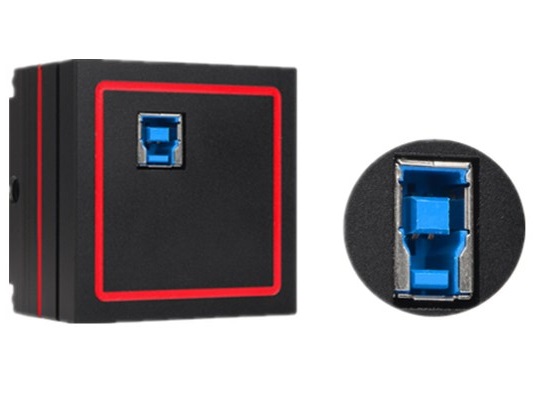

Industrial Digital High Resolution Microscope Camera 5MP USB3.0 NCC-5MP USB3.0

High Resolution 5MP USB3.0 Industrial Digital Microscope Camera NCC-5MPUSB3.0


Description

Adopted 1/2.5” Color 5megapixel CMOS Sensor, NCC-USB3.0 Industrial Digital Microscope Camera is conveniet for your connecting to a PC via USB3.0 interface.


Main Technical Parameters

Image Device1/2.5” Color 5megapixel CMOS Sensor
Resolution2592*1944 Effective Pixel
Pixel Size2.2μmm*2.2μm
Frame Rate14fps@2592*1944
124fps@640*480
ShutterElectronic Shutter
SNR38.5dB
Scanning ModeProgressive
Temperature0°C~50°C
Sensitivity1.4V/lux-sec@550nm
Spectral Response400nm~1000nm
Data InterfaceUSB3.0
PowerNo Need for External Power
Current≈200mA
White BalanceAuto/Manual
Auto Exposure ControlAuto Exposure
FunctionImage Display/Film/Record
ApplicationMicrography, Common Image Capture, Microspur Image etc.

Detail:


Cheap Industrial Digital High Resolution Microscope Camera 5MP USB3.0 NCC-5MP USB3.0 for sale
