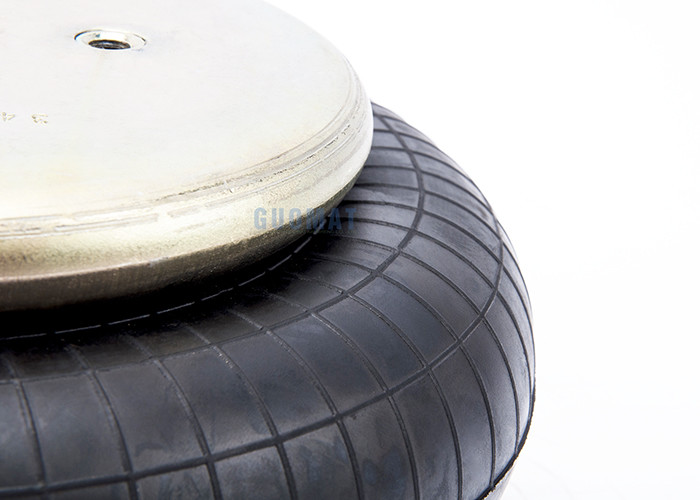

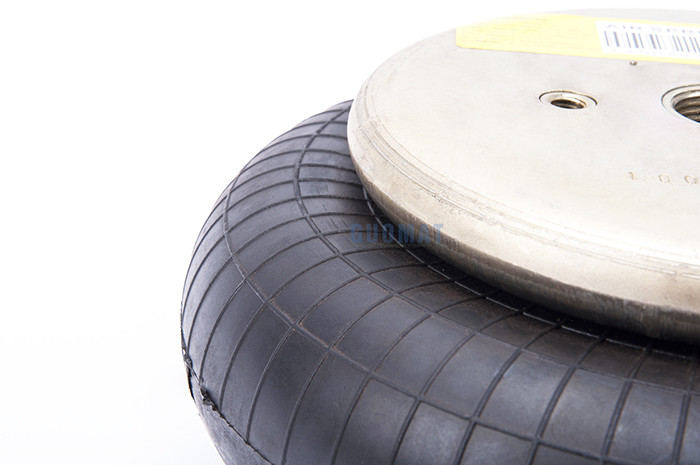

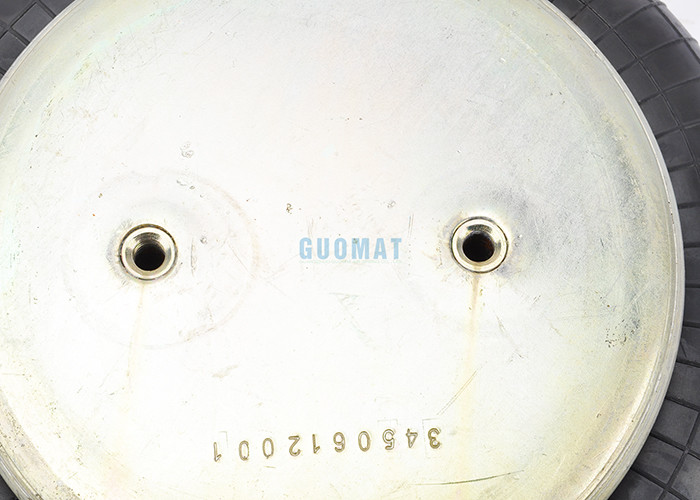

Industrial Air Spring Vertical lift force for platforms / rotation tables Goodyear 1B9-202

Vertical lift force for platforms and for rotation tables Industrial Air Spring Goodyear 1B9-202

OEM Original Equipment Manufacturer:

5.9 inches (150 mm)
Minimum height
2.3 inches (58.42 mm)
Stroke
3.6 inches (91.44 mm)
The maximum diameter
11 inches (279 mm)

❶Nut/blind nutTop plate screw (nut) teeth: 2 x 3 / 8-16UNCTop plate screw center distance: 89 mmScrew (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNCScrew center distance of bottom cover plate: 89 mm❷Air hole/air inlet/air fittingAir hole/air inlet: 1/4NPTCenter distance between nut and air inlet: 44.5 mm❸coverTop plate diameter (width): 160 mmDiameter of bottom cover (width): 160 mmBell rubber bellowsRubber bellows diameter: 222 mmCompressed height: 100 mm / 4.1 inchesMaximum height: 160 mmWorking stroke: 60 mm❺Bumper block/bumper blockNo bumper❻Belt loop/Belt loopWith belt loop: Without belt loop

the gas hole is G3/4, and the Screw tooth is the metric system M8 ,Screw center distance is 70 mm

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
