Double Axles 20x6 Flatbed Tandem Car Carrier Trailer , Car Transporter Trailer

Categories Tandem Car Carrier Trailer
Brand Name: HONGLE
Model Number: 20x6’6
Certification: ISO9001
Place of Origin: Jiangsu China
MOQ: 1 container
Price: Negotiable
Payment Terms: FOB
Supply Ability: Annual production capacity 5000 pcs
Delivery Time: 20 days
Use: Car carrier Trailer
Type: Semi-Trailer
Material: Steel
Max Payload: 2000kgs
PAYLOAD: 955 KG
ATM: 1045 KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

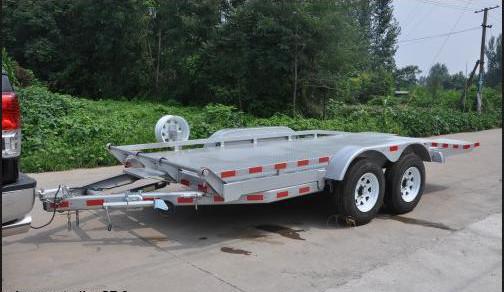

Double Axles 20x6 Flatbed Tandem Car Carrier Trailer , Car Transporter Trailer

Double Axles 20x6 Flatbed Tandem Car Carrier Trailer , Car Transporter Trailer


Features and standards:


1. Floor: 2.5mm chequer plate steel floor.
2. Tire: 165/70 R 14 with DOT&E-mark certification (white painted wheel)
3. Leaf spring: 5 leaf spring.
4. double axles (with brake)
5. Loading capacity:1500kg-2500kg
6. Surface finish: hot dipped galvanized or powder coated


Product Overviews



Flatbed trailer, also known as: trailers, flatbed, trailer, trailer, semi-trailer, trailer, logistics vehicles, truck, tractor, truck, pallet truck, heavy steel flatbed trailer! Flatbed trailers, chassis, lifting device lifts the traction device, hydraulic system, electric control system, the body and the toolbox, lifting, pull and lifted traction and many other features.


STANDARD FEATURES

  • Rolled C/Plate Body & Floor

  • Winch Post ONLY

  • Sides 230mm high Allowing for car doors to open

  • Mudflaps and all electrical complying with Australian standards

  • New wheels (NOTE: NOT SECOND HAND)


SPECIFICATIONS


ROLLED BODY

230mm High Sides 2.1mm Rolled Checker Plate Tub

MUDGARD

2.1mm Checker Plate, 250mm Wide 4 Fold

CHASSIS

75X50 AND 50X50 RHS

SIDE RAILS

50x25x2.5mm (extra reinforced)

DRAW BAR

100x50x3mm RHS Welded Back to Front Springs hangers, spare wheel holder and Plug Holder with 2 Off 8mm Rated chain 450mm Long

SUSPENSION

Slipper spring

AXLES

Axles Heavy Duty 45mm Square Solid

COUPLING

50mm Mechanical over Ride Plunger Type / Hand Brake

BRAKES

Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake

HUBS/FORD

Hub Ford SL B-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm)

BEARINGS

Bearing B-type Inner Large L68149 / B-type outer Small LM12749

RIMS

NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)

TYRES

NEW 185R14C

LED Multi volt 12-24

Lights LED, ADR approved lights (Protected) front and side reflectors

Comes with 7 pin round plug


TRAILER DIMENSIONS

TRAILER PRICES INCLUDE GST


14x6’3

16x6’6

20x6’6

Trailer

14x6’3

16x6’6

20x6’6

MUDGAURD HEIGHT

230

230

230

TRAILER




FLOOR HEIGHT

520

520

520

Spare




OVERAL HEIGHT

750

750

750

J/wheel




INSIDE LENGTH

4200

4800

6000

Rego




INSIDE WIDTH

1900

2000

2000

Cage




DRAWBAR LENGTH

1650

1650

1650

Ramp




OVERAL LENGTH

5850

6450

7650

H/frame




OVERAL WIDTH

2400

2500

2500

Winch




LOAD RATING KG

2000

2000

2000

Legs




ATM KG

670

800

1045

3200KG




PAYLOAD KG

1330

1200

955

Total





Flatbed trailer performance


1. Double reed buffer traction mechanism in the vehicle starting or sudden braking a buffer to avoid damage to the goods.

2. Traction cage off the upper and lower adjustable fixed, simply adjust to different tonnage the traction head or forklift traction
3. The suspension frame, compared with the traditional hard-wired (soldered) to reduce the body long-term stress damage, longer life.
4. Axles automatically swing adjustable punch the ground to ensure the board level and tire force balanced.
5. The front and rear set of optional spring steel shock absorbers to reduce the bumps of goods damage

6. 180 degree rotation stand, the minimum turning radius (180 degrees turning on the spot)
