| Categories | Self Aligning Ball Bearing |
|---|---|
| Brand Name: | UMT, SKF, NTN, FAG,KG,TIMKEN, AND SO ON |
| Model Number: | 1206 |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | 0.1-10 usd /pc |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000000000pcs/month |
| Delivery Time: | After receive the deposit |
| Packaging Details: | Original package, Neutral package, single package, Wooden package+pallet, Carton package+pallet, or as customerized. |
| Structure: | Self-Aligning |
| Vibration: | V1 V2 V3 |
| Material: | Chrome Steel GCR15 or stanless steel |
| Certificate: | ISO9001:2000 |
| Specially:: | The best after-sale service |
| OEM:: | YES |
| MODEL BEARING: | 1206 |
| Application:: | Motor parts;internal combust |
| Number of Row:: | double row or single row |
| samples: | available |
| Packing:: | plastic bags+cartons+pllate or |
Self Aligning Ball Bearing are two raceways in the inner and outer spherical roller between the road, equipped with a spherical ball bearings.
There are cylindrical and tapered bore two structures, cage made of steel sheet, synthetic resin. It features an outer ring raceway spherical shape, with auto-Mind, can compensate for misalignment and shaft deflection caused by the error, but the inner and outer rings relative inclination of not more than 3 degrees.
Self-aligning ball bearing has two rows of steel balls, a inner ring that has two raceways and a outer raceway in the inner spherical shape, and is provided with the function of self-aligning. The bearing can automatically compensate the concentricity error caused by the shaft deflection and housing deformation, thus suitable to the applications where the bearing seat hole can not guarantee strict concentricity. so it can still works as long as the relevant gradient between the center line of the inner ring and the same of the outer ring is within the range of 1 ° to 2.5 ° when the shaft is bent or tilted under pressure. There are two types of self-aligning ball bearings, i.e., cylindrical bore and tapered bore bearings. The taper ratio of tapered bore bearings is 1:1 or 1:30.
Self-aligning ball bearings are mainly used to carry heavy loads and impact loads, and apply to industries such as textile industry, mining, petroleum, paper making, cement, etc. and general machinery .
Specifications of best selling self aligning ball bearing:
| Model | 1206 |
| Bore Size | 6 mm |
| Outside Diameter | 9 mm |
| Height | 6 |
| Material | Chrome Steel |
| Weight | 0.18 |
| Certificate | ISO9001:2008 |
| Feature | Low Voice |
| MOQ | 1 piece |
| Port | Qingdao |
| Delivery time | 3 days |
| Packing | Single box |
l. miniature: 10X12X, 13X
2.Universal: 12XX, 13XX, 22XX, 23XX
| Model | Dimension(mm) | KN | Weight(kg) | ||||
| 10000 (TN1,M) | 10000K (KTN1,KM) | d | D | B | Cr | Cor | |
| 135 | 5 | 19 | 6 | 2.5 | 0.55 | 0.009 | |
| 196(V6) | 6 | 15 | 5 | 1.6 | 0.4 | 0.006 | |
| 126 | 19 | 6 | 2.5 | 0.55 | 0.009 | ||
| 127 | 7 | 22 | 7 | 2.7 | 0.65 | 0.014 | |
| 108 | 8 | 22 | 7 | 2.7 | 0.65 | 0.014 | |
| 129 | 9 | 26 | 8 | 3.9 | 0.95 | 0.022 | |
| 1200 | 1200K | 10 | 30 | 9 | 5.48 | 1.2 | 0.035 |
| 2200 | 2200K | 30 | 14 | 7.12 | 1.58 | 0.05 | |
| 1300 | 1300K | 35 | 11 | 7.22 | 1.62 | 0.06 | |
| 2300 | 2300K | 35 | 17 | 11 | 2.45 | 0.09 | |
| 1201 | 1201K | 12 | 32 | 10 | 5.55 | 1.25 | 0.042 |
| 2201 | 2201K | 32 | 14 | 8.8 | 1.8 | 0.059 | |
| 1301 | 1301K | 37 | 12 | 9.42 | 2.12 | 0.07 | |
| 2301 | 2301K | 37 | 17 | 12.5 | 2.72 | 0.104 | |
| 1202 | 1202K | 15 | 35 | 11 | 7.48 | 1.75 | 0.051 |
| 2202 | 2202K | 35 | 14 | 7.65 | 1.8 | 0.06 | |
| 1302 | 1302K | 42 | 13 | 9.5 | 2.28 | 0.1 | |
| 2302 | 2302K | 42 | 17 | 12 | 2.88 | 0.11 | |
| 1203 | 1203K | 17 | 40 | 12 | 7.9 | 2.02 | 0.076 |
| 2203 | 2203K | 40 | 16 | 9 | 2.45 | 0.09 | |
| 1303 | 1303K | 47 | 14 | 12.5 | 3.18 | 0.14 | |
| 2303 | 2303K | 47 | 19 | 14.5 | 3.58 | 0.17 | |
| 1204 | 1204K | 20 | 47 | 14 | 9.95 | 2.65 | 0.12 |
| 2204 | 2204K | 47 | 18 | 12.5 | 3.28 | 0.15 | |
| 1304 | 1304K | 52 | 15 | 12.5 | 3.28 | 0.17 | |
| 2304 | 2304K | 52 | 21 | 17.8 | 4.75 | 0.22 | |
| 1205 | 1205K | 25 | 52 | 15 | 12 | 3.3 | 0.14 |
| 2205 | 2205K | 25 | 52 | 18 | 12.5 | 3.4 | 0.19 |
| 1305 | 1305K | 62 | 17 | 17.8 | 5.05 | 0.26 | |
| 2305 | 2305K | 62 | 24 | 24.5 | 6.48 | 0.35 | |
| 1206 | 1206K | 30 | 62 | 16 | 15.8 | 4.7 | 0.23 |
| 2206 | 2206K | 62 | 20 | 15.2 | 4.6 | 0.26 | |
| 1306 | 1306K | 72 | 19 | 21.5 | 6.28 | 0.398 | |
| 2306 | 2306K | 72 | 27 | 31.5 | 8.68 | 0.5 | |
| 1207 | 1207K | 35 | 72 | 17 | 15.8 | 5.08 | 0.32 |
| 2207 | 2207K | 72 | 23 | 21.8 | 6.65 | 0.44 | |
| 1307 | 1307K | 80 | 21 | 25 | 7.95 | 0.54 | |
| 2307 | 2307K | 80 | 31 | 39.2 | 11 | 0.68 | |
| 1208 | 1208K | 40 | 80 | 18 | 19 | 6.95 | 0.42 |
| 2208 | 2208K | 80 | 23 | 31.9 | 10 | 0.51 | |
| 1308 | 1308K | 90 | 23 | 33.8 | 11.2 | 0.72 | |
| 2308 | 2308K | 90 | 33 | 54 | 16 | 0.93 | |
| 1209 | 1209K | 45 | 85 | 19 | 22.9 | 7.8 | 0.47 |
| 2209 | 2209K | 85 | 23 | 32.5 | 10.6 | 0.55 | |
| 1309 | 1309K | 100 | 25 | 39 | 13.4 | 0.96 | |
| 2309 | 2309K | 100 | 36 | 63.7 | 19.3 | 1.25 | |
| 1210 | 1210K | 50 | 90 | 20 | 26.5 | 9.15 | 0.53 |
| 2210 | 2210K | 90 | 23 | 33.8 | 11.2 | 0.6 | |
| 1310 | 1310K | 100 | 27 | 43.6 | 14 | 1.2 | |
| 2310 | 2310K | 100 | 40 | 63.7 | 20 | 1.65 | |
FAQ
A: We are factory.
A: Generally it is 7-15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

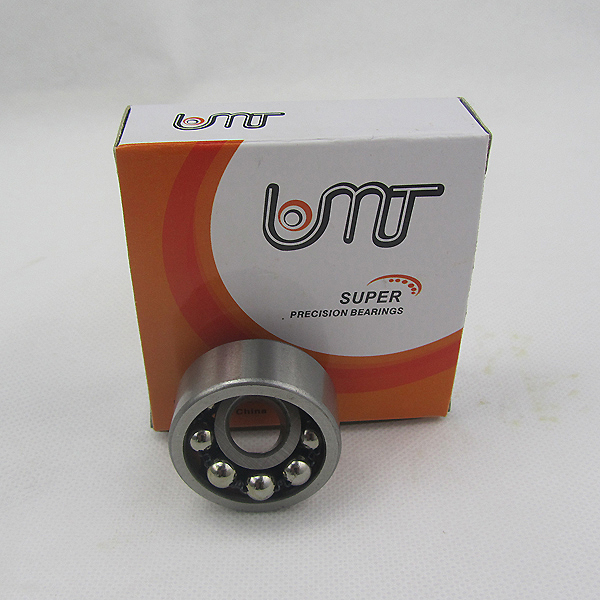

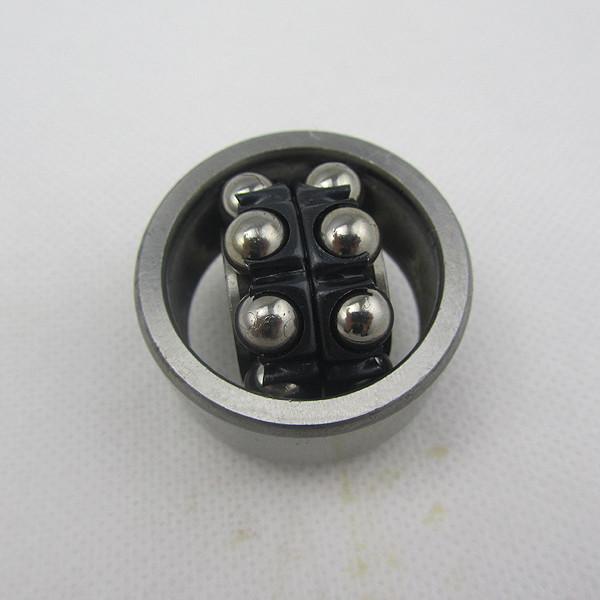

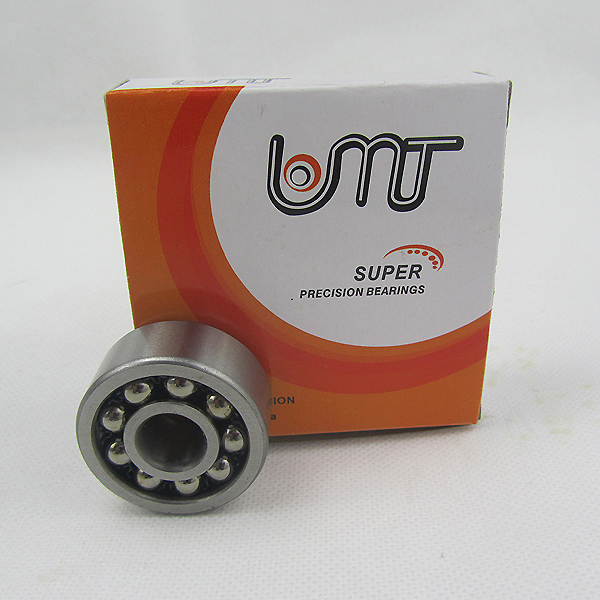

Picture of Self aligning ball bearing China High quality supplier 1206
|
