3.0V Lithium Battery LiMnO2 Battery CR2 Lithium Battery for GPS Security System 3V 750mAH

Quick Detail:

Model Number:	CR2 3V 750mAh	Brand Name:	TAC
Nominal Voltage:	3V	Rated Capacity:	750mAh
Type:	Lithium Battery LiMnO2	Dimension:	Φ15.1±0.2×H26.9±0.3mm
Weight:	11±1g	Certification	UN, ROHS
OEM & ODM:	Support	Warranty:	12months
Features: 1. CR2 3V 750mAh LiMnO2 Battery CR2 Lithium Battery 2. High energy density 3. High open circuit voltage 4. Wide range of operating temperature 5. Stable operating voltage and current 6. Long operating time

Packaging & Delivery

Packaging Details:	plastic case with carton boxes
Delivery Detail:	within 7 days

CR2 3V 750mAh LiMnO2 Battery CR2 Lithium Battery Specification

No	Item	General Parameter		Remark
1	Rated Capacity	Typical	750mAh	10mA Constant discharge to 2.0V
1	Rated Capacity	Minimum	700mAh	10mA Constant discharge to 2.0V
2	Nominal Voltage	3.0V		Mean Operation Voltage
3	Voltage at end of Discharge	2.0V		Discharge Cut-off Voltage
4	Operating voltage	2.8V(27Ω)
5	Internal Impedance	≤220 mΩ
6	Weight	11±1g
7	Standard discharge	50mA56Ω)
8	Rapid discharge	500mA(5.1Ω)
9	Max constant discharge current	1000mA
10	Max puls discharge current	2000mA
11	Ambient temperature range	-20~ +60℃
12	Max dimension	Φ15.1±0.2×H26.9±0.3mm
13	Storage life	≥10 year, Yearly self-discharge ≤2%

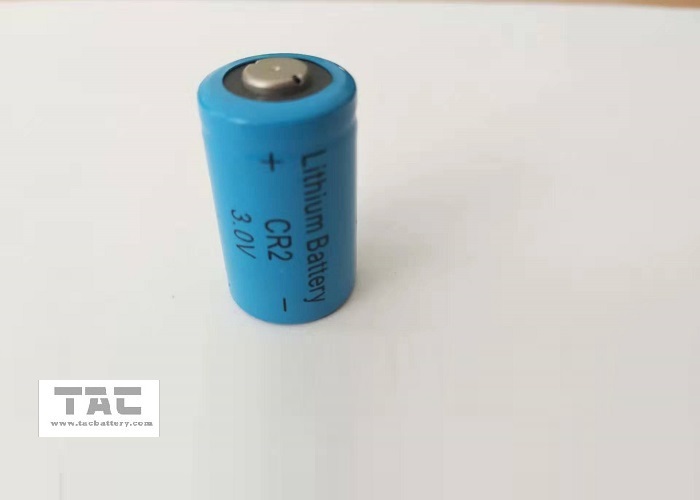

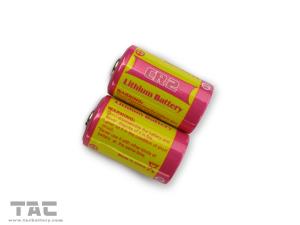

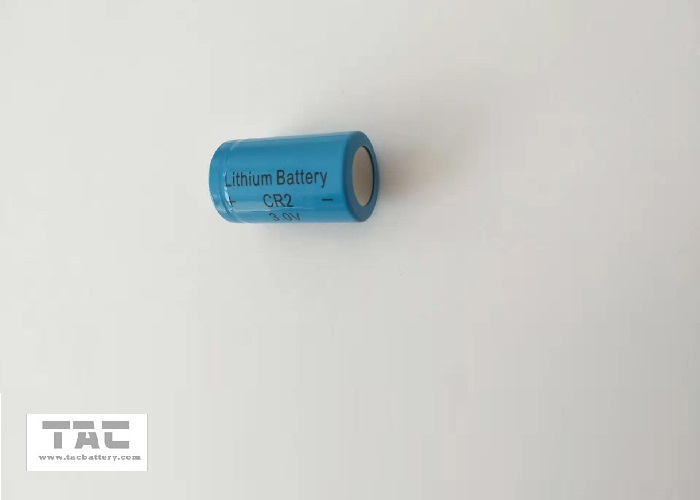

PICTURE FOR CR2 3.0V:

Model	Nominal Voltage (V)	Nominal Capacity (mAh)	Standard Discharge current(mA)	End Voltage (V)	Max. Diameter (mm)	Max. Height (mm)	Reference Weight (g)	TestTemperature (°C)
CR14250	3v	650.0	10	2	14.5	25.0	10	23±3
CR14335	3v	800.0	10	2	14.5	33.5		23±3
CR14505	3v	1400.0	10	2	14.5	50.5	17	23±3
CR17335	3v	1300.0	10	2	17.0	33.5	16	23±3
CR17450	3v	2000.0	10	2	17.0	45.0	25	23±3
CR17505	3v	2300.0	10	2	17.0	50.5	28	23±3
CR17345 (CR123A)	3v	1400.0	10	2	17.0	34.5	16	23±3
CR11108 (CR1/3N)	3v	160.0	1	2	11.6	10.8	3.3	23±3
CR15H270 (CR2)	3v	750.0	10	2	15.6	27.0	11	23±3
CR-P2	6v	1400.0	10	4	34.8X35.8X19.5		34	23±3
2CR5	6v	1400.0	10	4	34X45X17		34	23±3
CR-V3	6v	3000.0	20	2	29X14.5X52		34	23±3
