Name: Table Size 50 x 60 cm Shock Test System For Transportation Testing With ISTA 1A
Brand: LABTONE
Price: 1 USD

Home > Other Hand Tools >

Table Size 50 x 60 cm Shock Test System For Transportation Testing With ISTA 1A

Categories	Shock Test System
Brand Name:	LABTONE
Model Number:	SKT50
Certification:	CE, ISO
Place of Origin:	CHINA
MOQ:	1SET
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	15 Sets / Month
Delivery Time:	45 working days
Packaging Details:	International wooden case
Table Size:	50 x 60 cm
Max. specimen weight:	50 kg
Max. acceleration:	Half sine: 600G
Machine dimension:	130x120x260 cm
Machine weight:	2300 kg
Power supply:	3 phase AC 380V 50Hz

Contact Now

Add to Cart

Company Info.

Labtone Test Equipment Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

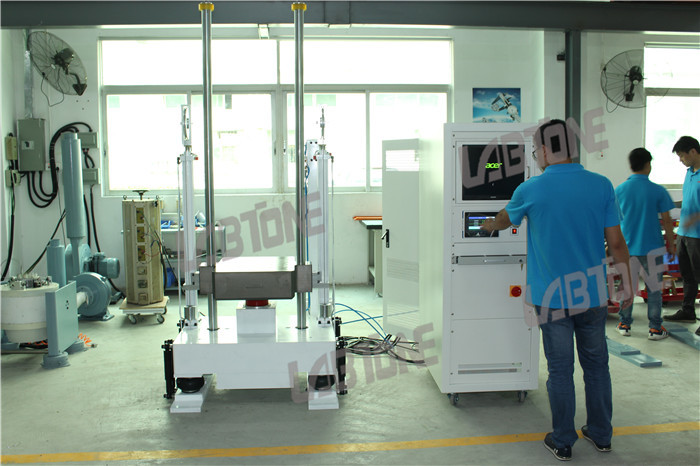

Table Size 50 x 60 cm Shock Test System For Transportation Testing With ISTA 1A

Table Size 50 x 60 cm Shock Test System For Transportation Testing With ISTA 1A

Product description

Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL

Product Features

TouchTest Shock 2 Controller for easy and safe operation
Cast aluminum table design to produce high quality shock pulses
Damage Boundary Programmer for generating 2 msec half sine and long duration trapezoidal shock pulses
Electric hoist lifting and positioning System enables precise drop repeatability
Full range of applications training programs available
Worldwide Customer Service department

Shock testing System Block Diagram

Shock testing systems Specifications

Model		SKT30	SKT50	SKT100	SKT200	SKT300	SKT600	SKT1000
Table size (cm)		40*40	50*60	70*80	100*100	120*120	150*150	200*200
Maximum Specimen Weight(Kg)		30	50	100	200	300	600	1000
Max acceleration(G)	half sine	600	600	600	500	500	300	300
	saw-tooth waveform	100	100	100	100	100	100	100
	square	150	150	150	150	100	100	100
Pulse Duration (ms)	half sine	40—0.2	40~1	40~1	30~2	20~3	20~3	20~3
	saw-tooth waveform	18~6	18~6	18~6	18~6	18~6	18~6	18~6
	square		30~6	30~6	30~6	30~6	30~6	30~6
Machine Dimension(cm)		120110245	130140260	130120260	150130260	200160300	230180310	250220310
Controller cabinet Dimension(cm)		W55D50H80
Machine Weight(Kg)		1900	2300	3200	4200	8500	15500	19500
Utility		3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements		3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL
