1920 X 1080 Resolution Analog Signal Switch Video Multiplexer 2CH AHD To Hdmi Converter

Categories Analog Video Multiplexer
Brand Name: E-link China
Model Number: LNK-AH200
Certification: CE, RoHS, FCC
Place of Origin: Shenzhen, China
MOQ: 1 pair
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000000000pairs/Month
Delivery Time: 3-5 working days
Packaging Details: 1 pair in 1 carton box
Resolution: 1920 x 1080
Signal: AHD
Output: 2 x HDMI and 2 x AHD
Inputs: Inputs
HDMI: 720P60HZ
Warranty: 1 year
Price: Negotiation
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1920 X 1080 Resolution Analog Signal Switch Video Multiplexer 2CH AHD To Hdmi Converter

2 Channel AHD to HDMI Converter Analog Video Multiplexer


I. Overview


AHD is high definition composite video interface, a coaxial cable-based high-definition video transmission standard, analog modulation technology to transmit high-definition progressive scan video.AHD technical specification includes two kinds of 1280H and 1920H high-definition video formats(Effective resolution 1280H format of 1280 × 720; the effective resolution of 1920H format of 1920 × 1080),With independent intellectual property rights of the non-compressed video data analog modulation techniques,point to point transfer megapixels level HD video via coaxial cable,implement without delay, low loss, high reliability of video transmission.


II. Function Implementation

The functions can be achieved:

1. The distributor HDTV signal, 1 minute 2 output

2. HDTV signals OSD, digital overlay, non-physical overlay, no jitter.

3. HDTV signal decoder, can decode the AHD signal,built-in amplifier,line equalizer, video multiplier and HD video transmitter,automatically identify the source signal resolution, output HD HDMI 720P60HZ, 1080P60HZ signal.


III. Product Features


1. To achieve 2-way AHD video signals simultaneously processing

2. The product is a powerful, easy to use

3. It is a high-definition signal splitter, the AHD signal can be looped through to the next stage equipment AHD

4. It is a high-definition signal OSD device,can superimpose the camera character title, date, and time information

5. It is a high-definition signal decoder, realize 720P,1080PHDMI high-definition signal output.

6. supports RS-232 communications, green configuration software can display position, display settings and display Setting mode


III. Applications


The products are mainly used in:


1. HDTV signal independent display spaces.

2. The camera manufacturers do presentations test application

3. DVR manufacturers do presentations test application

4. HDTV signal access large-screen display.

5. AHD matrix switcher output and display on the splicing screen

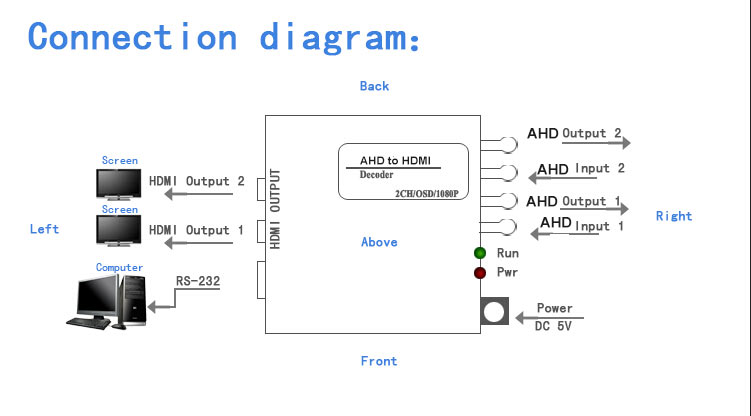

Application Diagram:

Cheap 1920 X 1080 Resolution Analog Signal Switch Video Multiplexer 2CH AHD To Hdmi Converter for sale
