| Categories | UTP Video Extender |
|---|---|
| Brand Name: | E-link |
| Model Number: | LNK-UP1100P |
| Certification: | CE/FCC/Rohs |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs Per Month |
| Delivery Time: | 4-6 days |
| Packaging Details: | Standard export package |
| Connector: | Rj45 |
| Transmission Distance: | 600m |
| POE: | IEEE802.3at 30w |
| Rate: | 10/100Mbps |
| Frequency Response: | DC DC To 8MHz |
| Power: | 12-24VDC |
| Company Info. |
| E-link China Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

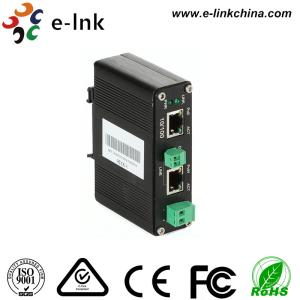

Din-Rail 10/100M Ethernet UTP Extender with PoE
Overview
LNK-UP1100 is a cost-effective solution for extending an Ethernet connection beyond its inherent distance limitation. LNK-UP1100 can extend the distance to 600 meters (with PoE) or 900 meters (no PoE) using a UTP cable. LNK-UP1100 supports 2/4/8-wired auto detecting transmission. LNK-UP1100 provides a wide operating temperature range from -10ºC to 60ºC, making it suitable for harsh operating environments.
Features
Warranty: 3-Year Warranty
Technical Indexes
| Ethernet | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Ethernet | |
| Connector | 1 × RJ45 |
| Cabling | Cat5 or above |
| Maximum Distance | 100m |
| UTP | |
| Connector | 1 × RJ45 |
| Cabling | Cat5 or above |
| Distance | Up to 600m on Cast5e Cable |
| Data Rate | |
| Downlink | 90Mbps (Max.) |
| Uplink | 90Mbps (Max.) |
| Technology | Power Line Communication (PLC) |
| Electrical and Mechanical | |
| Input Power | 48~57VDC (Terminal Block) or IEEE802.3at PD (for ET1100UPp-R only) |
| Power Consumption | 8W Max. (PoW not in use) |
| 60W Max. (PoW in use) | |
| Protection | |
| Reverse Polarity | Present |
| Power Input Overload | Present |
| LED Indicators | |
| Power | Power Status |
| Ethernet | SPD, LINK/ACT, PoE (Transmitter) |
| UTP Data | LINK (Transmitter) / READY (Receiver) / PoW (Receiver) / ACT |
| PoE | |
| Standard | IEEE802.3af/at |
| Port | RJ45 |
| Max.Power | 25.5W Max. at RX (Power Device) |
| 30W Max. (Alternative B mode) at TX (Power sourcing Equipment) | |
| Dimensions (W x D x H) | 114 × 72 × 31 mm |
| Weight | 0.2kg |
| Casing | Aluminum case |
| Mounting Options | DIN-Rail or Wall Mount |
| Environmental | |
| Operation Temperature | -10 ℃ to 60 ℃ (14 ℉ to 140 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | > 100,000 hrs |
| Regulatory Approvals | |
| ISO9001 | |
| FCC Part 15 Class A | |
| EN55022 Class A | |
| Surge Protection | |
| RJ45: 1KV | |
| BNC: 2KV | |
| Power: 500V | |

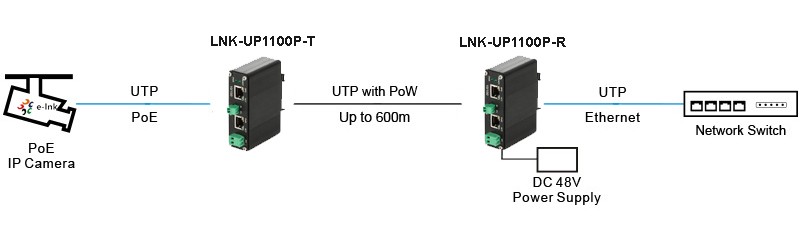

Application
|
