Industrial Bar Code Barcode Reader Module With Auto - Reading Scan Engine

Categories 1D Barcode Scanner Module
Brand Name: Rakinda
Model Number: LV1000R Bar Code Reader
Certification: CE FCC ROHS
Place of Origin: Shenzhen, China
MOQ: 1 piece
Price: Negotiation
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Delivery Time: 3-10 working days
Packaging Details: package in carton;
Name: Bar Code Reader
IP54 Housing: Dust-Proof
Barcode: Most of 1D Barcode
Size: 49 L×37 W×26 H mm
Light Source: LED(622nm-628nm)
Decode Rate: 200 scans/sec
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

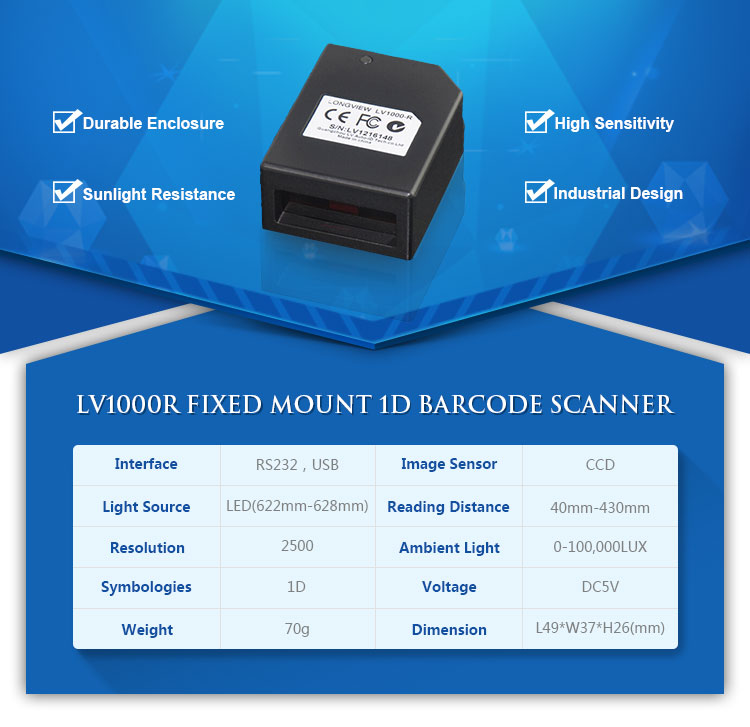

Industrial Bar Code Barcode Reader Module With Auto - Reading Scan Engine

Industrial Bar Code Barcode Reader Module With Auto - Reading Scan Engine​


1. The lv1000r barcode scanner has automatic level control circuitry and has means for detecting the bar code substantially independent of the angle and speed of scan within desired limitations. The scanner also has built-in error checking and warning devices as well as an automatic clear system for clearing errors. The data developed by the scanner is then transferred by suitable circuitry to a data collection and utilization system.

2. We can help you find the right barcode scanner to meet the demands of your business. From a retail

Presentation barcode scanner that sits on the counter to a rugged, Industrial barcode scanner that is used in the warehouse, Barcodes, Inc. has a barcode reader for any environment.

3. With high performance processing chip inside, outstanding for reading most of 1D printed barcode, readable from LCD too.


LV1000R_datasheet_en.pdf

ModelLV1000R
InterfaceRS232
Scan RateUp to 300 scans/sec
Image SensorCCD
Decode Rate200 scans/sec
Resolution5mil
Light SourceLED(622nm-628nm)
Ambient Light0 ~ 100,000 LUX
Depth of scan field40mm-430mm
Print Contrast Signal≥30%
Power Consumption1.25W(max)
NotificationBeep
Dimensions49 L×37 W×26 H mm
Weight70g
Operating Temperature-40°C - +60°C
Humidity5% - 95% (non-condensing)
CertificatesFCC Part15 Class B, CE EMC Class B




Question 1: Can I get some samples? are they free?
Answer 1: Of course, but samples are not free.

Question 2: What's the delivery time?
Answer 2: Depend on product and quantity of your order,sample sent to you in 3 work days after you payment
Question 3: What about payment?
Answer 3: Payment terms: T/T,West Union and L/C etc.
Question 4: Can you list the product of your company?
Answer 4: B arcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard.
Question 5: What's the OS of the POS?
Answer 5: Android and Windows,details please refer to the technical data of the Product.
Question 6: Where can we download the SDK/user manual for some of your products?
Answer 6: SDK/User manual will be sent to you by email after the sample order.
Question 7: Warranty time?
Answer 7: 1 year
Question 8: Do you provide EVK for barcode scanner module?
Answer 8: Yes,but not free.
Question 9: Product OEM?
Answer 9: Yes, the cost need to be added separately.
Question 10: Customer service?
Answer 10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
