| Categories | Concrete Test Hammer |
|---|---|
| Brand Name: | Raytech |
| Model Number: | HT-75 |
| Certification: | ISO CE |
| Place of Origin: | China |
| MOQ: | 1unit |
| Payment Terms: | Western Union, MoneyGram, T/T, , L/C |
| Supply Ability: | 500units per month |
| Packaging Details: | Standard Export Carton |
| Product Name: | Test Hammer, Concrete Test Hammer, Schmidt Hammer, Concrete Test Machine |
| Standard impact energy: | 0.735J |
| Stroke of rebound hammer: | 75mm |
| Friction of pointer slider: | 0.4N~0.6N |
| Sphere radius of rebound pole SR: | 25mm±1mm |
| verage rebound value on steel anvil: | 74±2 |
| Company Info. |
| RAYTECH NDT INSTRUMENT CO.,LTD |
| View Contact Details |
| Product List |

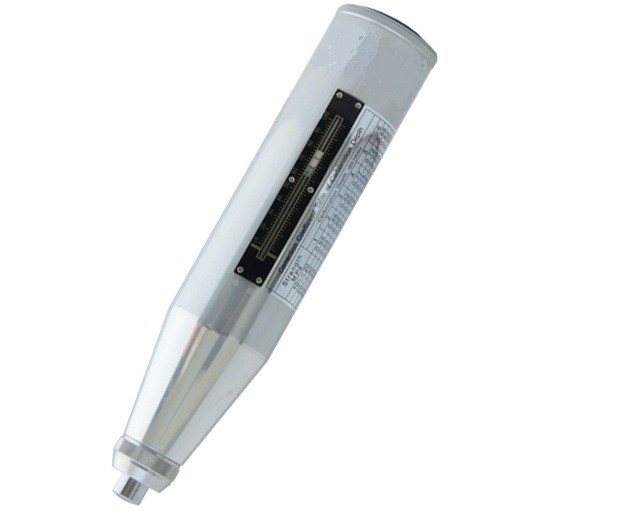

Test Hammer, Concrete Test Hammer, Schmidt Hammer,
Concrete Test Machine HT-75
Brief introduction:
Submit to standard of GB/T50315-2000,the instrument is applied to test light
material such as brick, light bone concrete etc.
Trait:
1)Center rod use imported material, high precision, wear proof;
2)Shell use super hard aluminums, protect instrument from damage on site test
work, prolong use life;
3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal
friction between pointer slider and axis. And assure the precision of instrument,
compare with similar other brand product, it’s good precision, longer use life and
better price. Specially suitable for brick factory or brick user
Parameter:
Standard impact energy: 0.735J
Stroke of rebound hammer: 75mm
Friction of pointer slider: 0.4N~0.6N
Sphere radius of rebound pole SR: 25mm±1mm
verage rebound value on steel anvil: 74±2
Size: Φ54*268mm
Weight: ≈1KG
