Categories | Tungsten Carbide Studs For HPGR |
---|---|
Brand Name: | Rixin |
Model Number: | RX-15,RX650,RX20 |
Certification: | CE ROHS UL ISO |
Place of Origin: | China |
MOQ: | 5KG |
Payment Terms: | L/C, T/T |
Supply Ability: | 50+tons+per month |
Delivery Time: | 7-20 days |
Packaging Details: | Cartons |
Price: | usd + 60~55 + kg |
Keyword: | tungsten carbide studs |
Material: | 100% virgin material |
Usage: | high pressure grinding roll studs |
Place of origin: | Hunan, China |
Product name: | tungsten carbide studs |
Surface: | finished/ grind/ blank |
Tolerance: | As per your requirment |
Company Info. |
Zhuzhou Mingri Cemented Carbide Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

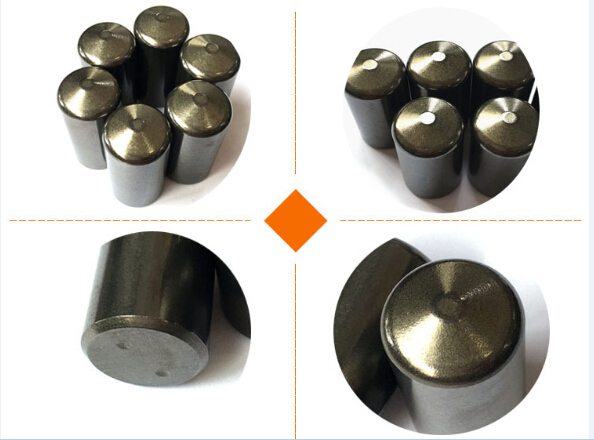

lower price best quality tungsten carbide studs with high wear resistance
Description of tungsten carbide studs
1, grade above are exclusive grade we developed for rolling machine,
2, good wear resistance and high strength are suitable for metal smashing with high working efficiency.
3, lifetime of carbide stud is over 8000-10000 hrs.
Grades | Density(g/cm3) | Hardness(HRA) | T.R.S≥N/mm2 |
RX-11 | 14.4 | 87 | 2700 |
RX-15 | 14 | 87 | 3000 |
RX650 | 13.8 | 88.2 | 3100 |
RX20 | 13.5 | 85.5 | 3200 |
Production technology features of cemented carbide studs
1. Flat or hemispherical top,protect the studs from being destroyed
by stress concentration.
2. Round edges, protect the studs being damaged during production,
transportation, installment and using.
3. HIP sintering ensure good compactness and high toughness for the
products.
4. Special technology to eliminate the surface stress after surface
grinding, and increase the surface hardness at the same time.
5. Grease used on surface of the products to avoid oxidization.
