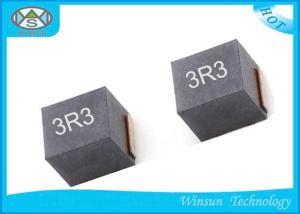

1008 3.3uH Surface Mount Power Inductor TDK Winding SMD Inductor NLV25T - 3R3J - PF

TDK SMD Winding Inductor NLV25T - 3R3J - PF , 1008 3.3uH Surface Mount Power Inductor

Why Choose us?

1 High quality and best services.
2 We have RoHS and REACH certification.
3 Our Products has the CE Insulation System.
4 Our company has pass the ISO9001: 2008 and ISO 14001: 2004

SPECIFICATIONS:

· Small vertical inductor, occupies the small space.

· Lead free ,Complied with RoHS Directives

* Inductance: 3.3uH

* Size: 2.5x2.0x1.8mm (LxWxT)

* Rated Current : 185mA(Max)

* DCR : 1.90 Ω (Max)

* Test frequency: 7.96 MHz

* Operating temperature range :–40 ~ +105°C
* Storage temperature range: –40 ~ +105°C

APPLICATIONS:

Power supplies ,

DC-DC converters,

Computer Peripherals,

Telephones, Air-Conditions,

Home electric appliance etc..

PRODUCT IDENTIFICATION:

* NLV 25T- 3R3J - PF
(1) (2) (3) (4)(5) (6)

(1)Series name

(2)Dimensions: 2.5×2.0×1.8mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 3R3=3.3uH

(5)Inductance tolerance: J ±5%

(6) Lead-free compatible product: PF Lead-free compatible product

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.
