| Categories | Overhead Line Construction Tools |
|---|---|
| Brand Name: | SHENHONG |
| Model Number: | CWC-150 |
| Certification: | ISO |
| Place of Origin: | Jiangsu,China |
| MOQ: | 2pcs |
| Price: | negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs per month |
| Delivery Time: | 7days after payment |
| Packaging Details: | plastic box |
| Application: | Cutting Cu/Al Busbar |
| Cutting Capacity: | 150mm*10mm (Width*Thickness) |
| Output: | 15T |
| Weight: | 24kg |
| Size: | 410*275*180mm |
| Package: | wooden case |

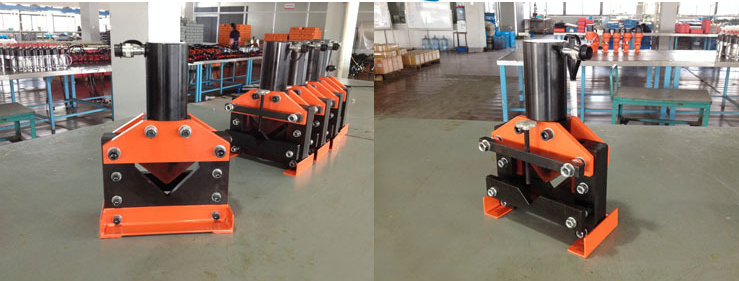

15T Overhead Line Construction Tools 10mm CU / AL Busbar Cutting Machine CWC-150
Product Features:
Remote Control Style: An external hydraulic pump is require (Capable of providing 700Bar working pressure)
V-Shape Blade: Help position buabar during cutting, ensure clean cutting. Blade can be purchased seperatelyCutting surface is smooth, without burr
Portable: can be fixed in factory or taken to working place according to specific application
Steel Case Package: For easy carrying and protect tools well
Function:
This machine is cut off the copper and aluminum busbar dedicated equipment required to complete pump(manual pump,treadle pumps,electric pumps)use.Unilateral cut waste-free.
1. It is designed for bending CU/AL busbar.
2. Fast cutting speed without leading to fine scrapping after cutting.The big scrap is good for recycle.
3. V style blade is designed for automatic positioning object to be cut.
4. Cutting surface is smooth without distortion.
5. Portable unit could be carried to site or fixed in the factory for batch cutting.
Technical Parameters:
Application: Cutting Cu/Al Busbar
Cutting Capacity: 150mm*10mm (Width*Thickness)
Output: 15T
Weight:24kg
Size: 410*275*180mm
Package: Steel Case
Technical Parameters:
| Application | Cutting Cu/Al Busbar |
| Cutting Capacity | 150mm*10mm (Width*Thickness) |
| Output | 15T |
| Weight | 24kg |
| Size | 410*275*180mm |
| Package | steel case |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
We have professional technical team to meet your new items developing.
We will be your eyes while producing, which means we will send producing picture for every steps.
We have professional technical team to meet your new items developing.
We will be your eyes while producing, which means we will send producing picture for every steps.
|
