Geo Fence Long Standby Time Mini Dog GPS Tracker With GPS And LBS Functions

Mini Pet GPS Locator With GPS And LBS Functions And Long Standby Time

Features:

1. Real time location:

Via SMS mobile app Wechat and computer web to achieve a variety of functions.

2. Geo Fence

Can set a safety range based on the GPS location,When out of the range,the mobile,app and web will receive the alarm.

3. Accurate positioning

Position error<=5meter.

4. Smart LED Shining

Smart LED Shining in night, Can set by APP

5. HD Street view

Can see the street view around the position via app and platform.

Operating Instructions:

1. Please Check whether the device model is correct, accessories are complete before using.

2. Please check the SIM CARD is correct or not before inserted, the device only supports the GSM CHIP

(compatible with 2G network SIM CARD) and the card should be have flow data credits and can make call.

3. Power on: Insert the SIM Card to the device,the green LED quickly flashes 3 times, then device on. The

Red LED keeps on for 5s and then off means the device read the GSM Card and then work normally.

4. Power off. Take out the SIM card of the device, then device off.

5. Charge: connect USB charging line to charge power , green LED keeps on when fully charged.

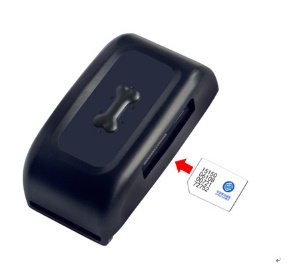

Install the SIM CARD

1. To install the SIM CARD as picture show:

Parameters:

Main Admin Number Binding

Main admin binding number: mainly used to receive Geo Fence alarm and low battery alarm information.

Send SMS: SOS,Main admin number TO device sim card No.

SOS KEY: SOS1,138........ Reply: SOS1,OK

SOS KEY: SOS2,138........ Reply: SOS2,OK

SOS KEY: SOS3,138........ Reply: SOS3,OK

Note: Main admin number can bind 3 numbers, If you want to replace the number you bound, just need to bind a new noe to replace it.

Main Admin Number Binding cancellation

Send SMS: DEL SOS,1 TO Device SIM Card No. Reply: DEL OK

Send SMS: DEL SOS,2 TO Device SIM Card No. Reply: DEL OK

Send SMS: DEL SOS,3 TO Device SIM Card No. Reply: DEL OK

Forced wake up the GPS Positioning

Send SMS: MD,1

Note: The device reacquire GPS positioning in the stationary states.

shenzhen CarTracker Technology Co., Ltd was founded in 2009,it is one of the most professional manufacturers for gps tracker and mobile DVR product.Our company is located in Shenzhen city,Guangdong province,China.At present our GPS Tracker products are mainly exported to Southeast Asia,Africa,South America,The Middle East ,Europe and so on.

Our main products are Car GPS Tracker,Personal GPS Tracker,large battery GPS Tracker and 3G mobile DVR.Every year we develop new products to meet customer requirements.and they are certified by CE,ROHS,FCC and 3C certification bodies.

We have a Research and Development team of more than twenty engineers. Most of them have a master's degree and 12 engineers have more than 8 years work experience in the GPS Industry.we also have a group of professional sales and after sales team. they will provide after-sales and pre-sales technical support for you.

Our factory is located in Cuishan industrial area,we have about 2000 square meters of building area and more 200 production staff.they are mainly responsible for gps product production,testing and quality control.our monthly output is more 20000pieces.the factory has passed ISO9001,ISO14000 Certification.

Welcome to visit our factory and we look forward to the opportunity to cooperate.
