| Categories | Split Solar Water Heater |
|---|---|
| Brand Name: | PASSION/OEM |
| Model Number: | 200L |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000units/month |
| Delivery Time: | 10 working days |
| Packaging Details: | CARTONS/PLYWOOD CASE/PALLET |
| Capacity: | 200L |
| Heat Exchanger: | Single Stainless Steel Coil |
| Structure: | Split |
| Collector: | Heat Pipe Solar Collector |
| Outer Tank: | White |
| Inner Tank: | Stainless Steel |
| Bracket: | 30/45 degrees |
| Heat Preservation: | 3 days |
| Company Info. |
| JIAXING PASSION NEW ENERGY TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Single Stainless Steel Coil Split Solar Water Heater with Heat Pipe Solar Collector

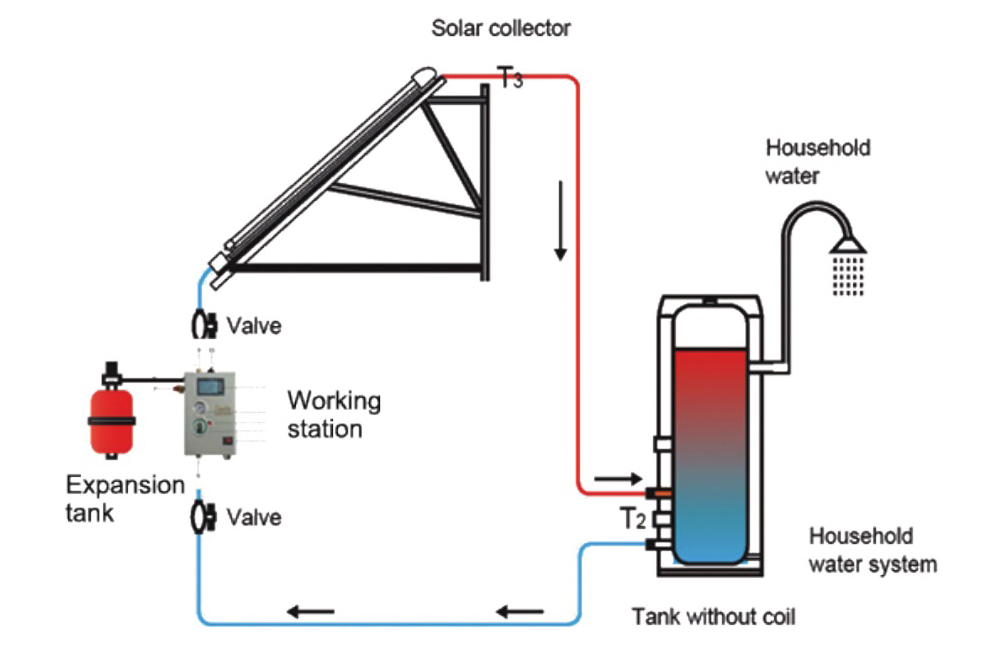

STRUCTURE of Split Pressurized Solar Water Heater
The split solar water heater is composed by solar heat collector, cylinder water tank and working
station( pump station).
1. Collector: heat pipe, or U pipe
2. Tank: pressure tank, 100L-1500L
3. Work station
Working principle
1. The collector absorbs solar energy and transmits it to the water
tank through circulation .
2. When the temperature of the collector reaches the set value, the
controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate
automatically.
4. The heat-conducting liquid transfers heat to water by lower heat
exchanger in the water tank.
5. When the temperature difference between solar collector and tank
doesn't reach the set value, the circulation pump will be shut
automatically .
6. In case the temperature of the water tank does not reach Tmax,
Electric Heating Element will start to work automatically.
Specification
| Name | Split pressurized solar water heater |
| Material of out manifold | 0.31-0.55mm thickness color steel/ fluorine carbon steel |
| Material of inner tank | Food grade 1.2-2.0 mm thickness SUS304 stainless steel |
| Material of outer tank | colour steel or stainless steel |
| Inlet and outlet hole | Male G3/4 |
| Max pressure | 0.6 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with SS-ALN(L)/ALNor CU/SS/ALN coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | εh=0.04-0.06(80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 2.0mm thickness aluminum alloy |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tank capacity | 100L,150l,200L,300L,500L,800L,1000L |
| Solar collector | 10/12/15/18/20/24/30 tubes |
| OEM | Provide |
| Working station | SP116,SP228 |
| Heat exchanger length | 18m |
Water tank
| Capacity(L) | 300L |
| Material of inner tank | Food grade SUS 304-2B stainless steel |
| Dimensions of inner tank | Ø480mm, T1.5mm |
| Material of outer tank | Colorful steel |
| Outer tank diameter | Ø580mm, T0.5mm |
| Tank insulating layer | 50mm high-density polyurethane foamed |
| Foam density | 45kg/m3 minimum |
| Heat preservation | 96 hours |
| Tank connections | water inlet /water outlet / 2×1’’ female thread for integrating the heating circuit |
1''thread electric heating and 1/2'' temperature sensor | |
| Female thread connections | SUS 304-2B stainless steel, 1.0mm thickness |
| Tank welding | Argon arc welding |
Heat pipe vacuum tube Solar Collector Quantity | 10 pcs to 30pcs |
Lengh of upper coil and heat exchange area | 8M/0.4m2 |
| Lengh of bottom coil and heat exchange area | 12M/0.6m2 |
| Material of coil | Copper coil of Ø12*T0.8mm/ Ø16*T1.0mm/ Ø19*T1.0mm |
| Tank welding | Argon arc welding |
Payment
1. T/T 30% Deposit in advance and balance should be paid after
receiving the B/L copy.
2. L/C at sight (if your quantity reaches 5*40’ HQ container)
3. Sample order or LCL: we accept paypal,western union and one
touch business.
Packing and shipping
1.7-15 working days for 20’GP/40’GP/40’HQ
2..FCL: packed in carton box with PE foam board
3..LCL :packed in wooden box
Our service
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by
buyer's side.
2. We have full stock,and can deliver within short time.Many styles
for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or
design are available.
4. Good Quality + Factory Price + Quick Response + Reliable
Service, is what we are trying
best to offer you
5. All of our products are produced by our professional workman and
we have our
high-work-effect foreign trade team, you can totally believe our
service.
6. We have rich experience of design, manufacture and sell solar
water heater, we cherish
every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at
once.
2. Check quality again, then send out to you at 1-2 working day
after your payment,
3. Email you the tracking no, and help to chase the parcels until
it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price
and products.
2. If any question,please contact with us freely by E-mail or
Telephone.
|
