| Categories | RGB LED Wall Washer |
|---|---|
| Brand Name: | Maysee |
| Model Number: | MS-WW-RGB-E |
| Certification: | CE/ROHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T or WU or Paypal |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 10-15 working days upon receipt of the deposit |
| Packaging Details: | Carton box or wooden case |
| Material: | Anodized aluminum |
| Light Color: | RGB/R/G/B/W |
| LED Type: | Cree |
| Control Mode: | DMX/on-off |
| Input Voltage: | 24VDC |
| IP Rating: | IP66 |
| Rated Power: | 48W |
| Warranty: | 3-year |
| Size: | 1060mm(L)x85mm(W)x101mm(H) |
| N.W.: | 10 |
| Company Info. |
| Shenzhen Maysee Technology Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

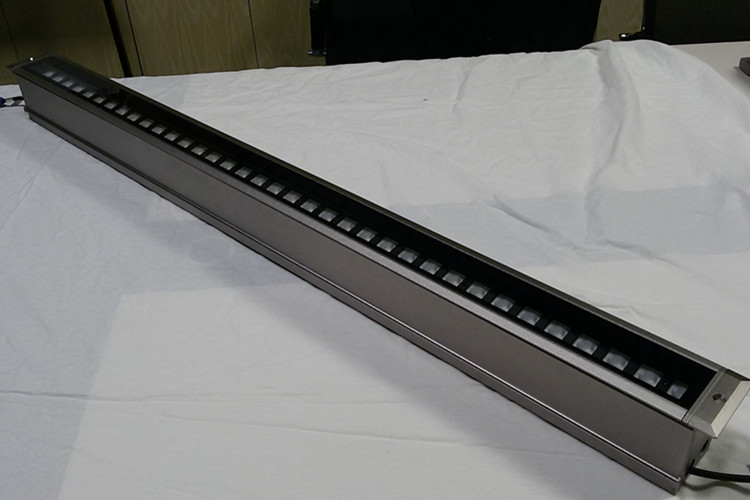

LED wall washer available IP66 LED inground light with alumium bracket embedded part
Features
1. High brightness reach 110lm/w
2. High power 48w led wall washer fixtures
3. Anodized aluminum housing & aluminum bracket for installation
4. DC24V input
5. Up to 50,000hrs long life-span
6. Easy for cable connection and installation layout
7. Both RGB & mono-color are available
8. IP66
Advantages
1. L6063 aviation aluminum and With thick enoughnodized aluminum housing to go for better heat-dissipation
2. Private mould with nice appearance design and feasible
mechanical assembly
3. High-power led suitable for outdoor night visual effect
4. 3-year warranty
Specification
| Model No.: MS-WW-RGB-E(48W) | ||
| Electric Parameter | Power | 48W |
| LED Drive Current | 350mA | |
| Input Voltage | DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter | Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1060mmx85mm(W)x101mm(H) |
| Weight | 10kg | |
| Material | aluminum & tempered glass | |
| Housing Color | Gray | |
| IP Grade | IP66 | |
| Optical Parameter | LED Brand | CREE |
| LED Unit Power | 3W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) | |
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm | |
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Application
Outdoor building outline,plaza, Architectural lighting,landscape lighting,business street,Bus station,airport,train station,subway station,etc.
