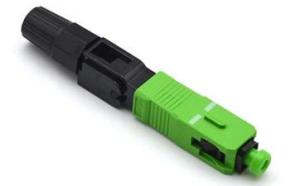

Multimode / Single Mode Fiber Connectors SC / APC SC / UPC

Categories	Fiber Optic Connectors
Brand Name:	KELONG
Model Number:	FIC-SC
Certification:	TLC
Place of Origin:	CHINA
MOQ:	100PCS
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20K/DAY
Delivery Time:	7 WORK DAYS
Packaging Details:	CARTON

Contact Now

Add to Cart

Company Info.

Shenzhen Damu Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1.1 Measured the Structure

1.2 Product length

50mm ≤L≤60mm

2.Optical Characteristics

Category	Specification		Remarks
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40～+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3

3.Environmental performance requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	110℃,200H	≤0.5	≤5	No mechanical damage, like deformation, cracking and untight
Low TEMP	-40℃,200H	≤0.5	≤5
TEMP Cycling	-40～85℃,3.5H/Cle,100C	≤0.5	≤5
HAST	110℃,90%RH,200H	≤0.5	≤5
Immersion	25℃,200H	≤0.5	≤5
Salt Mist	5% Nacl,6.5＜PH＜7.5,35℃,200H	≤0.5	≤5

4.Mechanical Performance Requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
Impact	Height: 4m； 1 drop each axis； 3 cycles	≤0.5	≤5	No mechanical damage, like deformation, cracking and untight
Vibration	Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm； Duration:30min each axial	≤0.5	≤5
Torsional	Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min. Times: 200	≤0.5	≤5
Tensile	Pull:50N；The distance between Loading location and fast connector: L = 22-28cm； Duration:1min.	≤0.5	≤5
