Categories | LiSOCl2 Battery |
---|---|
Brand Name: | TAC |
Model Number: | ER10450 3.6V 1Ah |
Certification: | REACH MSDS |
Place of Origin: | Shenzhen zhuhai |
MOQ: | 100 pcs |
Price: | usd 3.0 |
Payment Terms: | T/T, LC, Paypal etc. |
Supply Ability: | 100,000PCS/Day |
Delivery Time: | 7-25 days after order confirm |
Packaging Details: | 20 pcs each pallet / 1 pack for one box |
Place of Origin:: | Guangdong China |
Brand Name:: | TAC |
Nominal Voltage:: | ER10450 3.6V 1Ah |
Type:: | LiSOCL2 Battery |
Certification:: | UL, ROHS |
OEM & ODM:: | Support |
Weight:: | 9g |
Warranty:: | 12months |
Company Info. |
Guang Zhou Sunland New Energy Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Features:
1. Non-rechargeable cell ER10450 3.6V 1Ah Li-SOCl2 High Voltage Battery
2. High and stable load voltage 3.6V lithium-ion battery
3. Superior drain capacity 1000mah

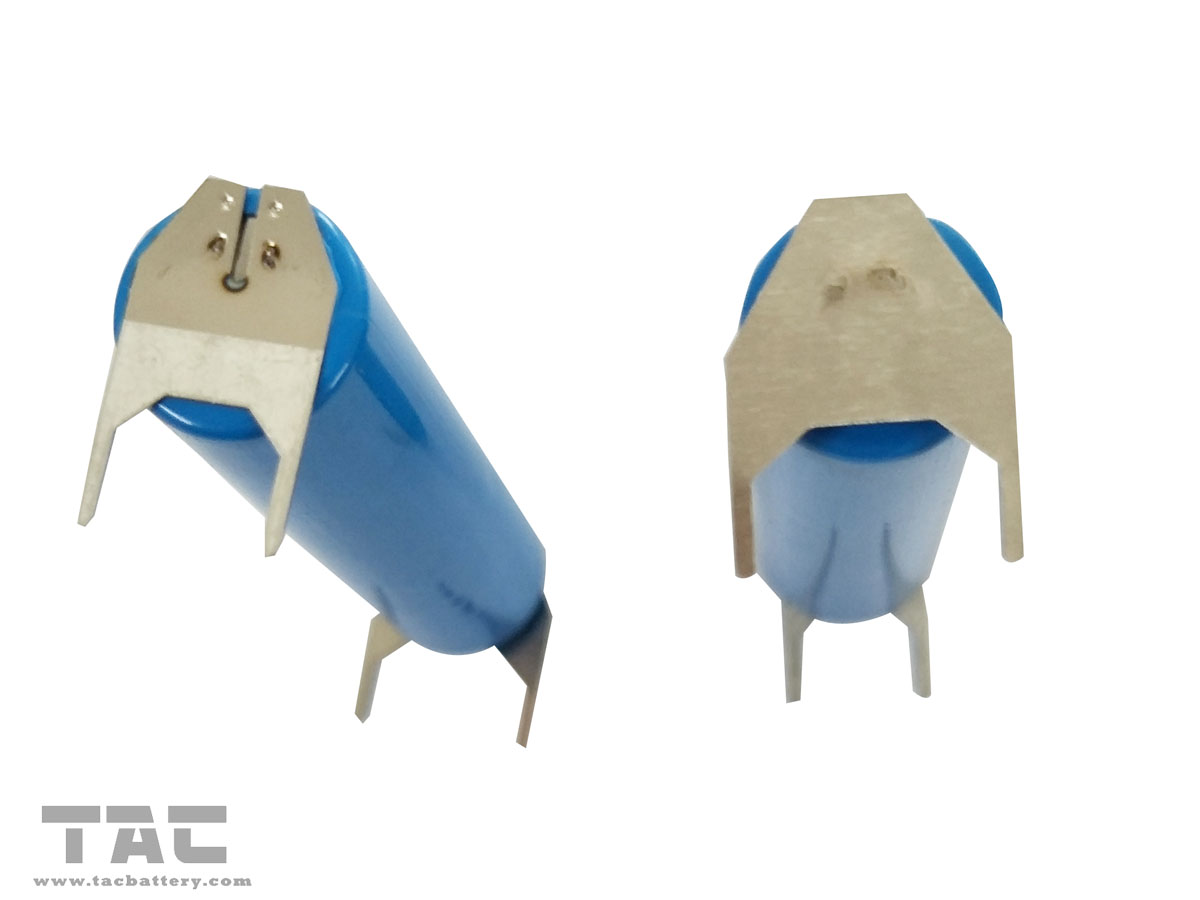

4. Laser welding with customer require

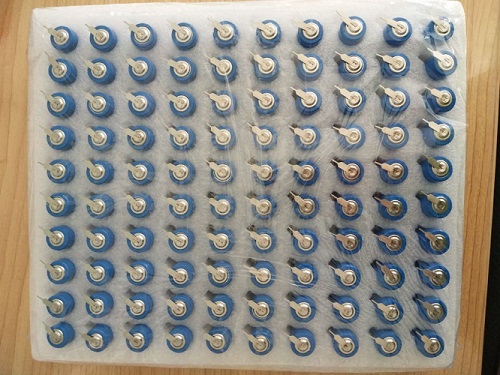

Packaging Details: | plastic case with carton boxes |
Delivery Detail: | within 7 days |
ER10450 3.6V 1Ah Li-SOCl2 High Voltage Battery 1000mAh Specification:
No. | Item | General Parameter | Remark |
1 | Rated Capacity | 1000mAh | Discharge to 2.0V 1mA |
2 | Nominal Voltage | 3.6V | Mean Operation Voltage |
3 | Voltage at end of Discharge | 2.0V | Discharge Cut-off Voltage |
4 | Max dimension | φ10.5mm×H45mm | |
5 | Max weight | 9g | |
6 | Standard discharge | Discharge to 2.0V 1mA | |
7 | Max constant discharge current | 10mA | |
8 | Max. pulse current | 20mA | |
9 | Ambient temperature range | -55~ +85℃ | |
10 | Storage life | ≥10 year | Yearly self-discharge ≤ 1% |
Size; Max dimension : φ10.5mm×H45mm
If you have purchase the ER battery from other supplier, pls take close attention to max size
in order to avoid the size over your space limit

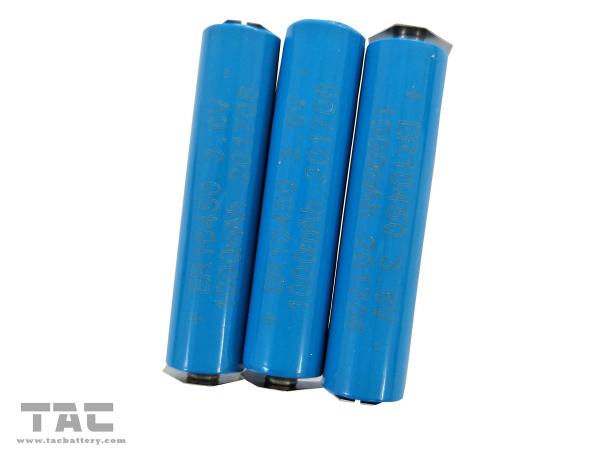

Picture for ER10450 3.6V 1Ah Li-SOCl2 Battery 1000mAh :
Applications:
Radiocommunication and other military applications
ER10450 3.6V 1Ah Li-SOCl2 High Voltage Battery 1000mAh ER10450 for Voting System
Alarms and security systems
Beacons and emergency location transmitters
GPS equipment
Utility meter (water, electricity, gas,heat meter)
Led lighting applications
![]() |
