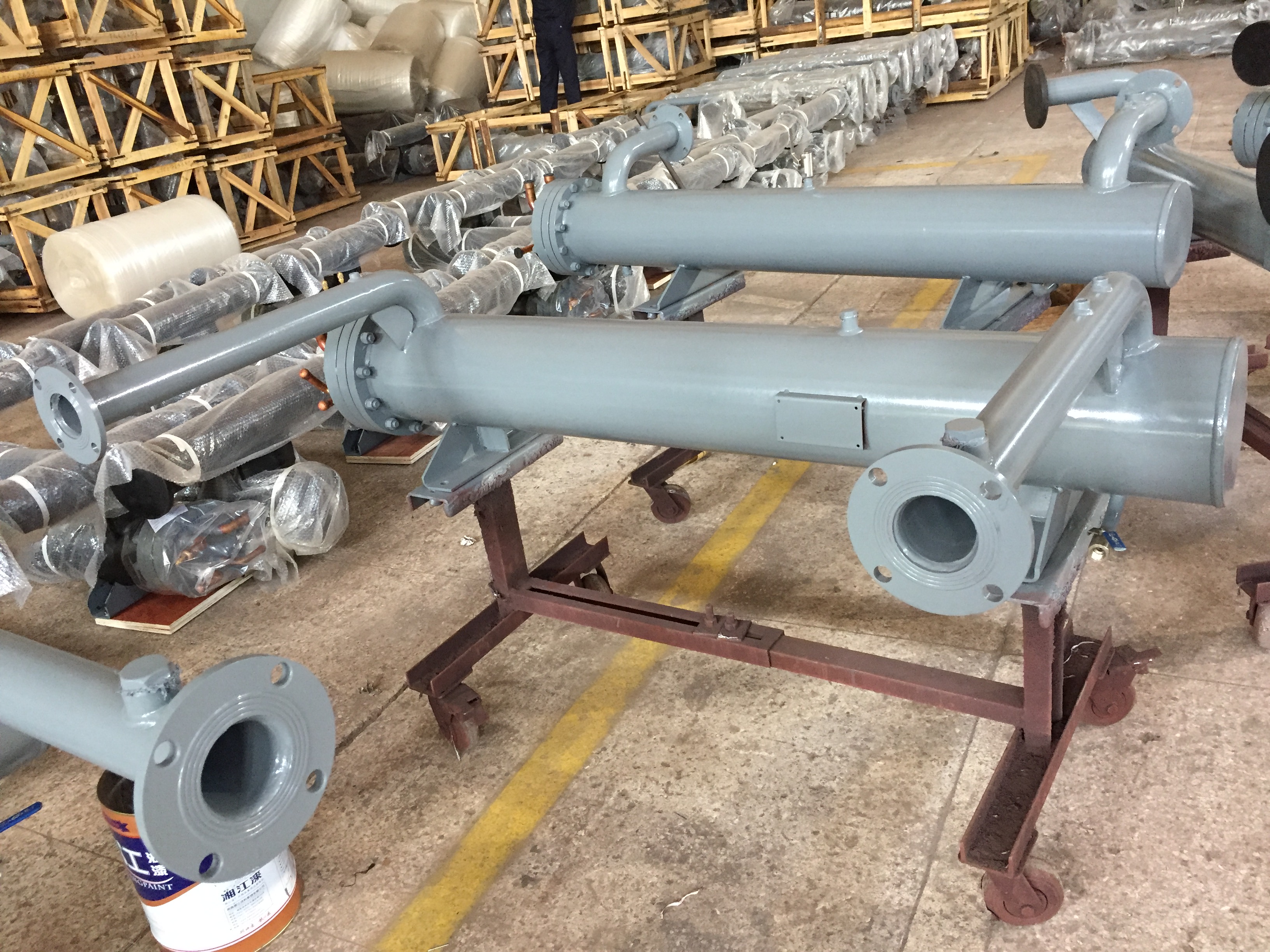

Full Liquid Shell And Tube Type Evaporator , High Temperature U Tube Heat Exchanger

Heat Exchanger Full Liquid

Shell and Tube Type Water - Cooled Evaporator

Heat Exchanger Full Liquid Shell and Tube Type Water - Cooled Evaporator is suitable for water cooled

unit, water source heat pump, air cooled pump and air cooled heat pump unit.

The product is applying for refrigerants of R22, R134a, R407C and R410A etc.

The referigerating medium is for tap water, underground water, river water and sea water or brine, water

and glycol solution, sulfate solution, etc.

For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube,

etc.

The shell raw material mainly are seamless steel tube, stainless steel pipe.

1, Heat exchange tube: four main tube type.

(1) ∅ within 3/8 "thread copper coil, it is mainly used for" U "type tube evaporator.

(2) ∅ within 1/2 "threaded straight copper tube, straight tube is mainly used for dry-type evaporator.

(3) ∅ 1/2 "corrugated straight stainless steel tube, straight tube is mainly used in food industry of dry

evaporator.

(4) ∅ 5/8 "inside outside screw wing efficient copper tube, it is mainly used for air precooling industry dry

evaporator.

2, shell raw material:

There are two of the major materials:

(1) # 20 seamless steel tube, mainly used for all kinds of load - more than 20 ℃ cold agent.

(2) 304/316 l stainless steel tube, it is mainly used for food and low temperature (below 25 ℃, higher than

40 ℃) of the refrigerant, 316 l can also be used for cooling load of the sulfate for industry.

3, interface:

U SHAPED TUBE DRY EVAPORATOR (DOUBLE CIRCUIT)

CAPACITY: 120KW TO 310KW

Models			QXU120D8	QXU135D8	QXU155D8	QXU185D10	QXU220D10	QXU270D10	QXU310D10
Rated data Refrigerant R22 ti=12°C te=2°C tu=7°C Dts=5°C	Q_n	KW	120	135	155	185	220	270	310
	Q_n	Kcal/h (×10³ )	103.2	116	133.3	159	189	232	267
	W_n	m³ /h	20.6	23.2	26.7	31.8	37.8	46.4	53.3
	W_m	m³ /h	25	28	30	41	43	65	68
	Dp_n	bar	0.41	0.44	0.37	0.36	0.43	0.42	0.43

Models		QXU120D8	QXU135D8	QXU155D8	QXU185D10	QXU220D10	QXU270D10	QXU310D10
Dimension (mm)	A	1815	2115	2315	2320	2320	2654	2654
	B	219	219	219	219	273	273	273
	C	200	200	200	200	234	234	234
	D	1530	1830	2030	2000	2000	2280	2280
	E	240	240	240	300	300	300	300
Vent	S1	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Outlet	S2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Connection	W(DN)	89	89	89	89	114	114	114
	D1(mm)	22	22	22	22	35	35	35
	D2(mm)	42	42	42	42	54	54	54
	P(kg)	145	155	163	232	255	279	296
Q_n-rated refrigerating capacity W_n-cooling water flow W_m-maximum cooling water flow Dp_n-pressure drop of recirculating cooling water Dt_s-overheat temperature

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 10RT TO 40RT

Model	Refrig. ton (RT)	Refrig. ton (10⁴kcal/h)	Dimension (mm)							Weight (kg)	Max. water flow
Model	Refrig. ton (RT)	Refrig. ton (10⁴kcal/h)	D	T1	T	A	C	C2	E	Weight (kg)	Max. water flow
QXC10D6	10	3.78	168	483	1065	75	185	233	92	78	7.8
QXC15D6	15	5.67	168	635	1369	75	185	233	92	85	11.6
QXC20D6	20	7.56	168	819	1737	90	185	233	92	96	15.8
QXC25D6	25	9.45	219	819	1755	90	238	285	113	132	19.5
QXC30D6	30	11.34	219	819	1755	90	238	285	113	137	23
QXC35D6	35	13.23	219	819	1755	90	238	285	113	145	27.3
QXC40D6	40	15.12	219	953	2024	90	238	285	113	162	31

Model	S (Vent)	P (fluoride inlet) Copper pipe diameter (inch)	L(fluoride outlet) Copper pipe diameter (inch)	W (standard port)
Model	FPT(inner pipe thread)			FPT(inner pipe thread)
QXC10D6	1/4	5/8	5/8	1-1/2
QXC15D6	1/4	7/8	5/8	1-1/2
QXC20D6	1/4	7/8	5/8	1-1/2
QXC25D6	1/4	1-1/8	7/8	2
QXC30D6	1/4	1-1/8	7/8	2-1/2
QXC35D6	1/4	1-3/8	7/8	2-1/2
QXC40D6	1/4	1-3/8	7/8	2-1/2

CONDENSER SERIES DOUBLE CIRCUIT

CAPACITY: 50RT TO 200RT

Model	Refrig. ton (RT)	Refrig. ton (10⁴kcal/h)	Dimension (mm)								Weight (kg)	Max. water flow
Model	Refrig. ton (RT)	Refrig. ton (10⁴kcal/h)	D	T1	T	A	C	E	H1	H2	Weight (kg)	Max. water flow
QXC50D10A	50	18.9	273	953	2364	90	360	150	350	240	265	38.5
QXC60D10A	60	22.68	273	953	2364	90	360	150	350	240	279	46
QXC70D12A	70	26.46	325	953	2377	90	406	180	350	240	359	53.5
QXC80D12A	80	30.24	325	953	2377	90	406	180	350	240	375	61
QXC100D12A	100	37.80	325	953	2377	90	406	180	350	240	409	76
QXC120D12A	120	45.36	325	1270	3011	120	406	180	350	240	481	91
QXC140D14A	140	52.92	355	1270	3018	120	440	200	350	240	553	106
QXC160D16A	160	60.48	426	1600	3656	120	510	260	310	310	723	120.6
QXC200D16A	200	75.60	426	1600	3656	120	510	260	310	310	777	150.8

Model	S (Vent)	P (fluoride inlet) Copper pipe diameter (inch)	L(fluoride outlet) Copper pipe diameter (inch)	W (standard port)
Model	FPT(inner pipe thread)			Male flange
QXC50D10A	3/8	1-3/8	7/8	DN65
QXC60D10A	3/8	1-5/8	1-1/8	DN65
QXC70D12A	3/8	1-5/8	1-1/8	DN80
QXC80D12A	3/8	1-5/8	1-1/8	DN80
QXC100D12A	3/8	2-1/8	1-3/8	DN100
QXC120D12A	3/8	2-1/8	1-3/8	DN100
QXC140D14A	3/8	2-1/8	1-3/8	DN100
QXC160D16A	3/8	2-5/8	1-3/8	DN125
QXC200D16A	3/8	2-5/8	1-5/8	DN125

COOPERATED CLENTS
