| Tube material: | Copper nickel alloy |
| Shell material: | Seamless steel pipe |
| Tube medium: | Sea water |
| Capacity range: | 18kw~4000kw |
| Refrigerant: | R134a |
| Type: | Shell and tube type |

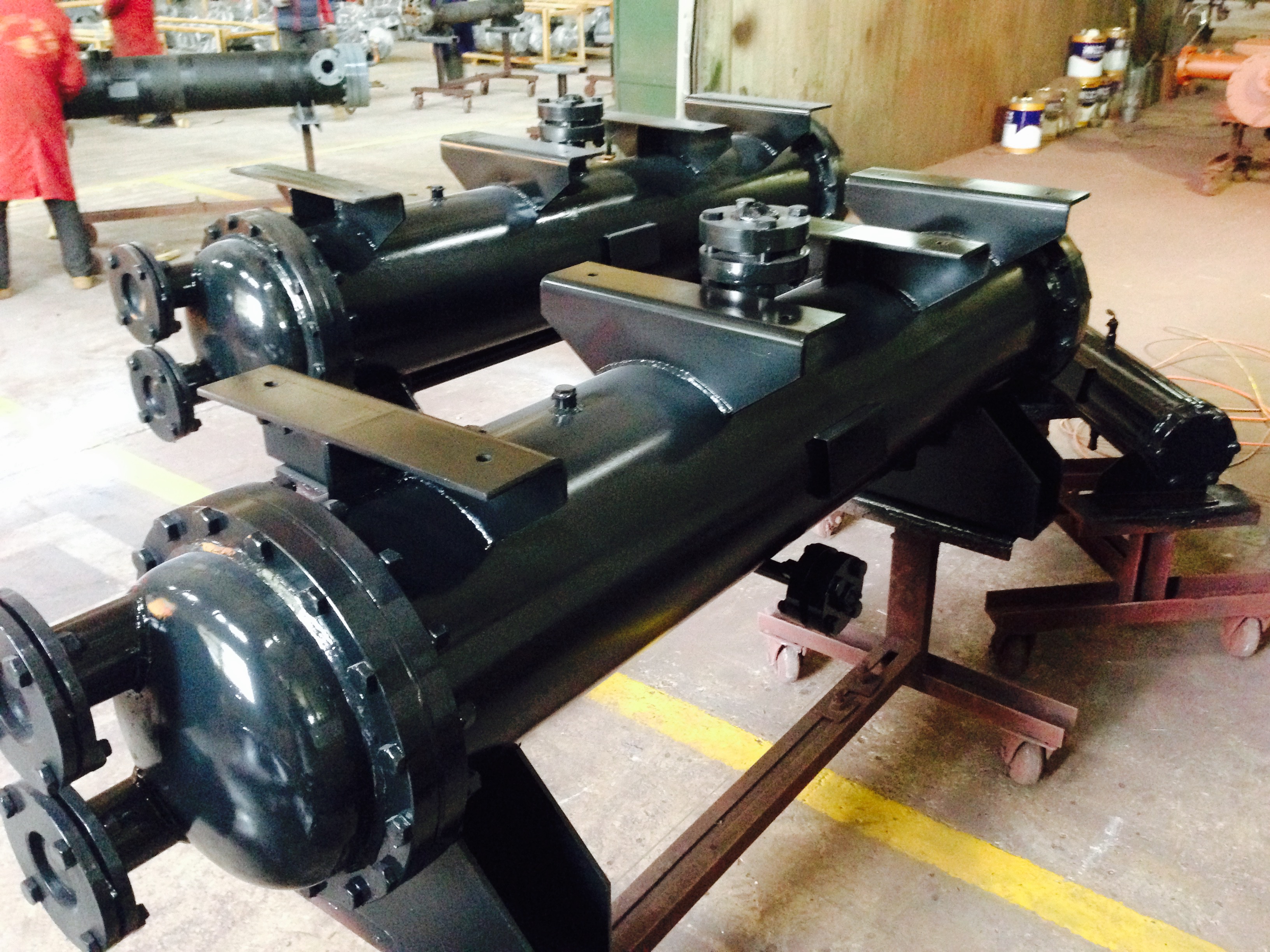

Industrial Condenser Shell and
Tube Heat Exchanger Marine Condenser
1, Introduction:
(1) The product is applicable to water chiller units, water source heat pump units etc.
(2) Suitable refrigerants are R22, R134a, R407C, R410A etc.
(3) Apply load cold agent for tap water, underground water, river water and sea water or brine, water and
glycol solution, sulfate solution, etc.
(4) For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel
tube, etc. Shell using seamless steel pipe, stainless steel tube,
etc.
2, Heat exchange tube: two main specifications.
(1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8"
stainless steel pipe.
(2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅
3/4" stainless steel pipe
3, Main material, the shell of 20 # seamless steel pipe, stainless
steel pipe.
4, Interface:
CONDENSER SERIES SINGLE CIRCUIT
CAPACITY: 3RT TO 15RT
| Model | Refrig. ton (RT) | Refrig. ton (104kcal/h) | Dimension (mm) | Weight (kg) | Max. water flow | |||||
| D | T1 | T | A | C | E | |||||
| QXC3S4 | 3 | 1.134 | 114 | 635 | 721 | 75 | 140 | 70 | 23 | 2.5 |
| QXC5S5 | 5 | 1.890 | 140 | 635 | 721 | 75 | 165 | 70 | 33 | 4 |
| QXC8S6 | 8 | 3.024 | 168 | 762 | 858 | 90 | 185 | 92 | 49 | 6.5 |
| QXC10S6 | 10 | 3.780 | 168 | 953 | 1049 | 90 | 185 | 92 | 58 | 7.8 |
| QXC12S6 | 12 | 4.536 | 168 | 953 | 1049 | 90 | 185 | 92 | 62 | 9.6 |
| QXC15S6 | 15 | 5.670 | 168 | 1270 | 1366 | 100 | 185 | 92 | 75 | 11.6 |
| Model | S (Vent) | P (fluoride inlet) Copper pipe diameter (inch) | L(fluoride outlet) Copper pipe diameter (inch) | W (standard port) | W (optional port) |
| FPT(inner pipe thread) | FPT(inner pipe thread) | FPT(inner pipe thread) | |||
| QXC3S4 | 1/4 | 5/8 | 5/8 | 1 | 3/4 |
| QXC5S5 | 1/4 | 5/8 | 5/8 | 1-1/2 | 1 |
| QXC8S6 | 1/4 | 7/8 | 5/8 | 1-1/2 | 1 |
| QXC10S6 | 1/4 | 7/8 | 5/8 | 1-1/2 | 1 |
| QXC12S6 | 1/4 | 1-1/8 | 7/8 | 1-1/2 | 1 |
| QXC15S6 | 1/4 | 1-1/8 | 7/8 | 1-1/2 | 1 |
CONDENSER SERIES SINGLE CIRCUIT
CAPACITY: 20RT TO 35RT
| Model | Refrig. ton (RT) | Refrig. ton (104kcal/h) | Dimension (mm) | Weight (kg) | Max. water flow | |||||
| D | T1 | T | A | C | E | |||||
| QXC20S8 | 20 | 7.560 | 219 | 1270 | 1380 | 90 | 238 | 113 | 110 | 15.8 |
| QXC25S8 | 25 | 9.450 | 219 | 1600 | 1710 | 120 | 238 | 113 | 121 | 19.5 |
| QXC30S8 | 30 | 11.340 | 219 | 1600 | 1710 | 120 | 238 | 113 | 134 | 23 |
| QXC35S8 | 35 | 13.230 | 219 | 1600 | 1710 | 120 | 238 | 113 | 140 | 27.3 |
| Model | S (Vent) | P (fluoride inlet) Copper pipe diameter (inch) | L(fluoride outlet) Copper pipe diameter (inch) | W (standard port) | W (optional port) |
| FPT(inner pipe thread) | FPT(inner pipe thread) | FPT(inner pipe thread) | |||
| QXC20S8 | 1/4 | 1-1/8 | 7/8 | 2-1/2 | 2 |
| QXC25S8 | 1/4 | 1-1/8 | 7/8 | 2-1/2 | 2 |
| QXC30S8 | 1/4 | 1-3/8 | 1-1/8 | 2-1/2 | 2 |
| QXC35S8 | 1/4 | 1-5/8 | 1-1/8 | 2-1/2 | 2 |
CONDENSER SERIES SINGLE CIRCUIT
CAPACITY: 110RT TO 200RT
| Model | Refrig. ton (RT) | Refrig. ton (104kcal/h) | Dimension (mm) | Weight (kg) | Max. water flow | |||||||
| D | T1 | T | A | C | E | H1 | H2 | |||||
| QXC110S12A | 110 | 41.58 | 325 | 2500 | 2966 | 150 | 406 | 180 | 350 | 240 | 411 | 83.5 |
| QXC120S14A | 120 | 45.36 | 355 | 2500 | 3023 | 150 | 440 | 200 | 400 | 290 | 490 | 91 |
| QXC130S14A | 130 | 49.15 | 355 | 2500 | 3023 | 150 | 440 | 200 | 400 | 290 | 506 | 98.5 |
| QXC140S14A | 140 | 52.92 | 355 | 2500 | 3023 | 150 | 440 | 200 | 400 | 290 | 521 | 106 |
| QXC150S14A | 150 | 56.70 | 355 | 2500 | 3023 | 150 | 440 | 200 | 400 | 290 | 536 | 113.5 |
| QXC160S16A | 160 | 60.48 | 426 | 2500 | 2952 | 150 | 530 | 260 | 310 | 310 | 637 | 120.6 |
| QXC180S16A | 180 | 68.04 | 426 | 2500 | 2952 | 150 | 530 | 260 | 310 | 310 | 667 | 135.5 |
| QXC200S16A | 200 | 75.60 | 426 | 2500 | 2952 | 150 | 530 | 260 | 310 | 310 | 697 | 150.8 |
| Model | S (Vent) | P (fluoride inlet) Copper pipe diameter (inch) | L(fluoride outlet) Copper pipe diameter (inch) | W (standard port) | W (optional port) |
| FPT(inner pipe thread) | Male flange | Male flange | |||
| QXC110S12A | 3/8 | 3-1/8 | 1-5/8 | DN100 | DN100 |
| QXC120S14A | 3/8 | 3-1/8 | 1-5/8 | DN100 | DN100 |
| QXC130S14A | 3/8 | 3-1/8 | 1-5/8 | DN100 | DN100 |
| QXC140S14A | 3/8 | 3-1/8 | 1-5/8 | DN100 | DN100 |
| QXC150S14A | 3/8 | 3-1/8 | 1-5/8 | DN100 | DN125 |
| QXC160S16A | 3/8 | 3-1/8 | 1-5/8 | DN125 | DN125 |
| QXC180S16A | 3/8 | 3-1/8 | 1-5/8 | DN125 | DN125 |
| QXC200S16A | 3/8 | 3-1/8 | 1-5/8 | DN125 | DN125 |
U SHAPED TUBE DRY EVAPORATOR (SINGLE CIRCUIT)
CAPACITY: 18KW TO 95KW
| Models | QXU18S5 | QXU28S5 | QXU35S6 | QXU47S6 | QXU56S6 | QXU65S6 | QXU80S8 | QXU95S8 | ||
Rated data Refrigerant R22 ti=12°C te=2°C tu=7°C Dts=5°C | Qn | KW | 18.6 | 28.2 | 35.1 | 47 | 56 | 65 | 80 | 95 |
Kcal/h (×103 ) | 16 | 24 | 30.2 | 40.4 | 48.2 | 56.7 | 68.8 | 81.7 | ||
| Wn | m3 /h | 4 | 6 | 6 | 8 | 9.6 | 11.4 | 13.8 | 16.4 | |
| Wm | m3 /h | 6.3 | 8 | 10 | 11.4 | 12 | 14.5 | 18 | 21 | |
| Dpn | bar | 0.16 | 0.29 | 0.27 | 0.41 | 0.35 | 0.39 | 0.42 | 0.46 |
| Models | QXU18S5 | QXU28S5 | QXU35S6 | QXU47S6 | QXU56S6 | QXU65S6 | QXU80S8 | QXU95S8 | |
Dimension (mm) | A | 887 | 1037 | 1275 | 1407 | 1431 | 1431 | 1631 | 1781 |
| B | 140 | 140 | 168 | 168 | 168 | 168 | 219 | 219 | |
| C | 97 | 97 | 107 | 107 | 161 | 161 | 161 | 161 | |
| D | 690 | 840 | 1040 | 1190 | 1030 | 1180 | 1380 | 1530 | |
| E | 180 | 180 | 200 | 200 | 200 | 200 | 240 | 240 | |
| Vent | S1 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Outlet | S2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Connection | W(DN) | 40 | 40 | 50 | 50 | 65 | 65 | 65 | 65 |
| D1(mm) | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| D2(mm) | 35 | 35 | 35 | 35 | 54 | 54 | 54 | 54 | |
| P(kg) | 49 | 58 | 72 | 78 | 88 | 93 | 125 | 136 | |
Qn-rated refrigerating capacity Wn-cooling water flow Wm-maximum cooling water flow Dpn-pressure drop of recirculating cooling water Dts-overheat temperature | |||||||||
