Dual 5 Inch Disco Sound Equipment Mini Line Array Speaker For Entertaiment

Categories Disco Sound Equipment
Brand Name: HLA
Model Number: SQ-225P / SQ - 15BP
Certification: CE,ROHS
Place of Origin: China
MOQ: 1 Piece
Payment Terms: T/T, Western Union,, L/C
Supply Ability: 600 sets /month
Delivery Time: 7 days after your payment
Packaging Details: Normal Packing Carton or Flight Case
Type: Active
Frequency Range(+/- 3 dB): 90 Hz - 18 kHz
Driver: LF2x 5" HF 1X1" Exit Compression Driver
Nominal Impedance:
Dimensions(mm): 600 X 177 X 300
Net Weight: 10KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dual 5 Inch Disco Sound Equipment Mini Line Array Speaker For Entertaiment

Dual 5 Inch Disco Sound Equipment Mini Line Array Speaker For Entertaiment


Quick Detail:

Full range SQ-225P line array speaker, fixed with neodymium drivers LF 2x5" HF
1x1.1" Exit Compression Driver , 250W-500W @8ohm, crossover mode is active and compact plywood cabinet, high quality sound, strong fiberglass horn with dispersion(HxV) 90° x 10°, vertical dispersion of the line array speakers can be adjusted via the flying hardware at the cabinet sides, you can fly the speaker system for outdoors applications, use it in fixed installation, or stack them on ground.


Description:

This line array speaker system is designed for applications with high requirements on SPL, sound quality, throw distance, and dispersion. And, this system can be used in outdoors applications like touring concert and living show, and indoors applications like disco, nightclub, conference and church.

SQ-225P / SQ -15BP is fixed with 1pcs 1.1" HF and 2pcs 5" LF neodymium drivers. The cabinet design and cabinet dimensions are exactly the same as original Q1. We just changed the crossover mode to actives one full range speaker and the impedance of each speaker is 8 ohm.
SQ -15BP When you fly in concert, we suggest you stack 15" subwoofers SQ-250P on the ground to get better LF sound effect.


System configuration:
.
Let us know your requirements on the system or tell us what kind of applications they are, we will offer you one solution---send you one sheet with models,quantity and cost of the products(loudspeakers, amplifiers, processors, cables, connectors, flight cases, rack.....) for your project. Various package available for your projects of different scale.

To avoid damage and scratch during transport,according to customer’s requirement,we can put the items in flight cases.

Black/Gray/White/Purple finish available for different applications.


Applications:

Touring, Concert, Living Show, Living Event, night club, disco, theatre,and fixed installation in other venues


ModelSQ-225PSQ-15BP
Frequency Range90Hz -18kHz45Hz-300Hz
Dispersion(-6 dB)H x V 90°x 10°
Sensitivity94dB98dB
Maximum Peak SPL120dB128dB
DriverLF2 x 5" HF1x 1.1" Exit Compression DriverLF1x 15"
Nominal Impedance
Power Handling250W500W
Connection2x Speakon NL4
Product dimensions(WxDxH) (mm)600х177х300600х570х450
Net Weight10KG54KG

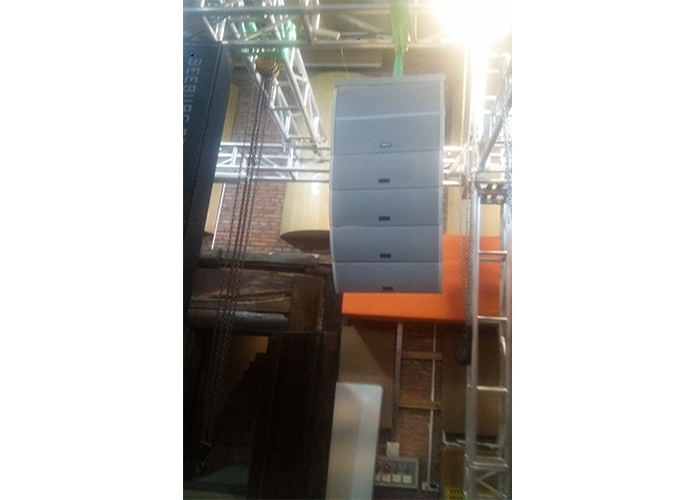

Proudcts Gallery:
