| Categories | Custom Wiring Harness |
|---|---|
| Brand Name: | HRS |
| Model Number: | DF14-15S-1.25C |
| Certification: | ROHS |
| Place of Origin: | JAPA |
| MOQ: | 100set |
| Price: | Negotiable |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 50000SET/D |
| Delivery Time: | 3-15D |
| Packaging Details: | Carton or Wood Box |
| Material: | PA |
| Color: | BR |
| Pich: | 1.25 |
| cable: | 1571-26-32AWG |
| PIN: | 15 |
| wire material: | PVC |
| Company Info. |
| Shanghai linksunet E&T Co.Ltd |
| View Contact Details |
| Product List |

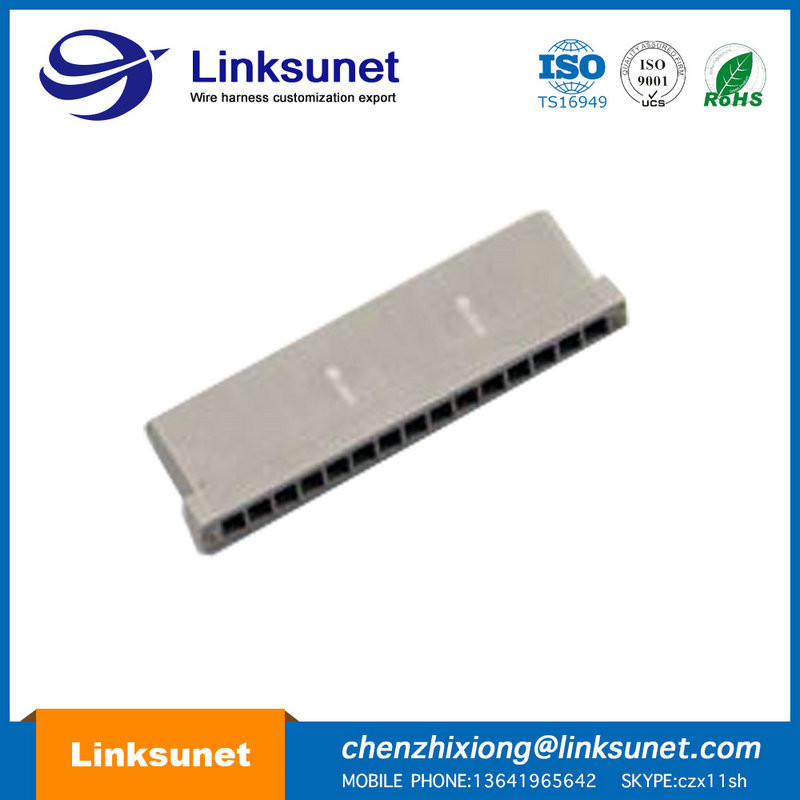

DF14-15S-1.25C 15P PICH 1.25MM / HRS LVDS Cable Male Female Wire Connector / Lvds cable / Material PA
Documents & Media
| Datasheets | DF14 Series Datasheet DF14 - xS - 1 . 25C Drawing DF14 - xS - 1 . 25C Spec |
|---|---|
| Product Training Modules | Wire-to-Board Connector |
| Featured Product | DF14 Series |
| Mfg CAD Models | DF14 - 15S - 1 . 25C . igs |
| Online Catalog | DF14 Series |
| Product Attributes | Select All |
| Categories | Connectors , Interconnects |
|---|---|
| Rectangular Connectors - Housings | |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF14 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 15 |
| Pitch | 0 . 049 " ( 1 . 25mm ) |
| Number of Rows | 1 |
| Row Spacing | - |
| Mounting Type | Free Hanging ( In - Line ) |
| Contact Termination | Crimp |
| Fastening Type | - |
| Color | Beige |
| Features | - |
| Note | Contacts Not Included |
Documents & Media
| Datasheets | DF14 Series Datasheet DF14 - 2628SCFA Drawing DF14 - 2628SCFA Spec |
|---|---|
| Product Training Modules | Wire - to - Board Connector |
| Featured Product | DF14 Series |
| Online Catalog | DF14 Series |
| Product Attributes | Select All |

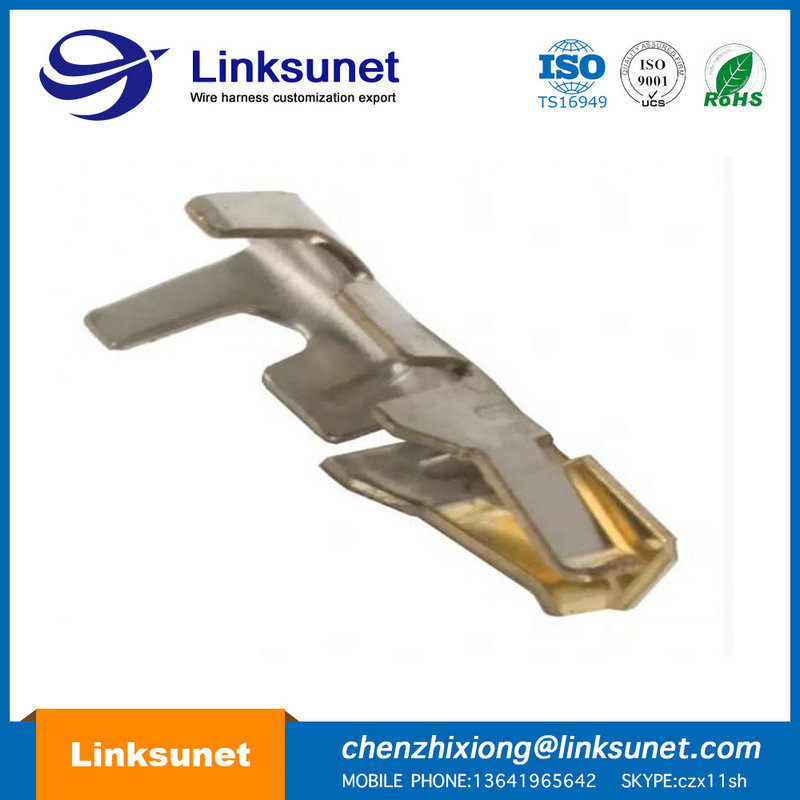

| Categories | Connectors , Interconnects |
|---|---|
| Rectangular Connectors - Contacts | |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF14 |
| Packaging | Tape & Reel ( TR ) |
| Part Status | Active |
| Type | - |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 26 - 28 AWG |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| DF14 - 2S - 1.25C | DF14 - 3S - 1.25C | DF14 - 4S - 1.25C |
| DF14 - 5S - 1.25C | DF14 - 6S - 1.25C | DF14 - 7S - 1.25C |
| DF14 - 8S - 1.25C | DF14 - 9S - 1.25C | DF14 - 10S - 1.25C |
| DF14 - 15S - 1.25C | DF14 - 20S - 1.25C | DF14 - 25S - 1.25C |
| DF14 - 30S - 1.25C | DF14 - 2628SCF | DF14 - 3032SCF |
| DF14 - 2628SCFA | DF14 - 3032SCFA |
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem
can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery
time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order.
But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire
Harness Assemblies )
|
