No-girder Arch Roof K Span Roll Forming Machine Glavanized Long Span

No-girder Arch Roof K Span Roll Forming Machine Glavanized Long Span

Machine components

Specification

1. DECOILER

(1) Inner Diameter: Φ508 – Φ610 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 5000 kg

2. ROLL FORMING MACHINE

(1) Material thickness: 0.6-1.5mm
(2) Rollers: 13Groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°

(4) Material for shaft: No.45 steel after treatment

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 7.5kw
(9) Rolling Speed:About10 m / min

(10) Driven type: 1.2＂Chain

3. CUT-OFF DEVICE

(1) Type: hydraulic cutting

(2)Material for Cut-Off Modular:Cr12 steel after treatment
(3)Power:3kw

4.ARCH BENDING MACHINE:

(1) Power:4kw+1.5kw

(2) Speed:about5min/min

6.ELECTRONIC CONTROL SYSTEM

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

Accessories of Super span roll forming machine

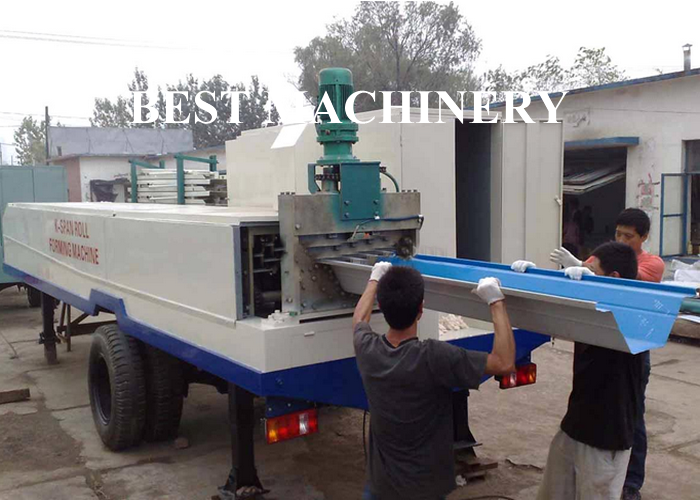

Machine Photos

Installation and training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting ,we will send you user manual to teach you to install and operate.
③ If buyer needs our technician to go to your local factory.

The manufacturer will send technician(s) to buyer’s factory for providing installation and commissioning and train service.

The buyer pays the expanse of round air tickets, hotel, and food of technician(s). And the buyer pays technician(s) salaryUS$100/Day/Person.

Following items are not included in machine free charge after-sales service:

[1]. Natural disasters;

[2]. Buyer’s workers’ wrong operation;

[3]. Buyer refit the machine by themselves;

[4]. Machine moved or transported after installation in buyer’s factory.

Cangzhou Best Machinery Co., Ltd set up in 2015, with great power in production and techniques, we are a leading manufacturer of roll forming machines in North of China.We have two workshops more than 4000 square meters, and have own processing machines and design engineer, so that can control machine production time and quality;Our factory is near Beijing or Tianjing, and in Cangzhou there is railway station, so it is convinent transport.Welcome to visit our factory anytime.

Our main products are CUSTOMIZED ROLL FORMING MACHINES, because clients will use roll forming machines instead of bending machine or pressing machines to save labor, and improve production, our regular products are roof sheet roll forming machine, roof tile roll forming machine, CZ roll forming machine, floor decking roll forming machine, highway guardrail roll forming machine, cable tray roll forming machine, stud and track roll forming machine, door roll forming machine, slitting and cut to length, sandwich panel machine and so on.

We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.

"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements.

With good after-sales service network, we can provide support covering the whole process of purchasing, which help you get perfect machinery. We'll solve all the problems you have while using the machines and we'll provide considerate services.

Our machines have been sold to North America, like US, Canada, South America, Nicaragua, Peru, Brazil, Bolivia, Uruaguy, Argentina, Europe, like Greece, Middle east, like Saudi Arab, Dubai, Iran, Iraq, Africa, Egypt, Ghana, Nigeria, Ethiopia, Malawi, Kenya, Tanzania, Zambia, Zimbabwe, South Africa, Australia, New Calidonia, Asia, India, Thailand, Philippines, Indonesia, Papua New Guinea, Bangladesh, Pakistan, Turkmenistan, Malaysia, Vietnam, Mongolia, helping us enter the international market.

Excellent service and high technology assist you to create a bright future.

To make sure machine quality, we applied CE certificate and SGS certificate and so on.



Our roll froming machine exported all over the world and win good repution,clients give good feedback,we have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise. INDIA, AFRICA, SOUTH AMERICA.

WE WILL YOUR BEST SUPPLIER IN CHINA,WELCOME TO CONTACT US.
