Brand Name: | HORIZON |
Model Number: | Table form |
Certification: | SGS |
Place of Origin: | China |
MOQ: | 500 M2 |
Price: | Pls check with HORIZON |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000 M2 per month |
Delivery Time: | 20-25 days |
Packaging Details: | pallets, bundles, bags, etc. |
Material: | Floor prop, Fork head, H20 beam, plywood |
Application: | any slab concreting |
Site supervision: | available |
Type: | Flex-H20 Slab Form |
Specification: | Flexible sizes |
Supporting: | EN1065 Props |
Company Info. |
HORIZON FORMWORK CO., LTD. |
View Contact Details |
Product List |

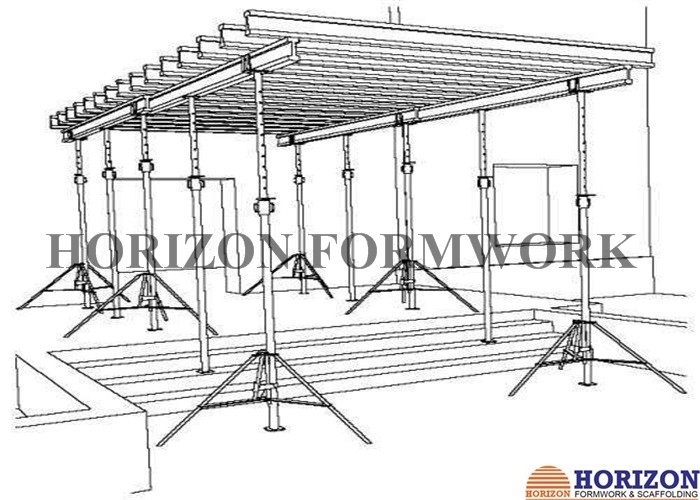

Flex-H20 slab form is a quite flexible timber beam system enabling you to complete any kind of slab pouring very easily, any length, width or thickness. There is no restriction for your applications in any way, but allows you all the versatility you need for perfect concrete work on site.
All the Flex-H20 slab form components are multiply used in HORIZON’s formwork systems. The H20 timber beams, props are well adapted to each other. Combined with 4-way fork head, tripod, supporting head, Flex-H20 is one of the most versatile timber beam formwork systems.
In order to ensure the safety, guardrails are equipped on the H20 beam at edge of slab.
Flex-H20 Slab Formwork Components:
Components | Diagram / photo | Specification / description |
Timber beam H20 | ![]() | Water proof treated Height: 200mm Width: 80mm Length: as per table size |
Floor Props | ![]() | Galvanized As per proposal design HZP 20-300, 14kg HZP 20-350, 15.8kg HZP 30-300, 17.6kg HZP 30-350, 20.3kg |
4-way head H20 | ![]() | Galvanized Length: 220mm Width: 145mm Height: 320mm |
Folding tripod | ![]() | Galvanized For holding floor props 8.5kg/pc |
![]() |
