Adjustable Tube Mill Machine Friction Saw Rectangular Shape 10 * 100mm

High frequency High speed high quality tube mill machine pipe making machine

High frequency High speed high quality tube mill pipe making machine used to manufacture welded steel pipe of Φ76mm-Φ168mm with 2.0mm-6.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Product advantage:

1. High precision
   between level roller jumps 0.01,between frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1,steel pipe diameter and roundness error≤0.08
2. Use Japanese technology to make foreign clients requirment who need the high accuracy requirement

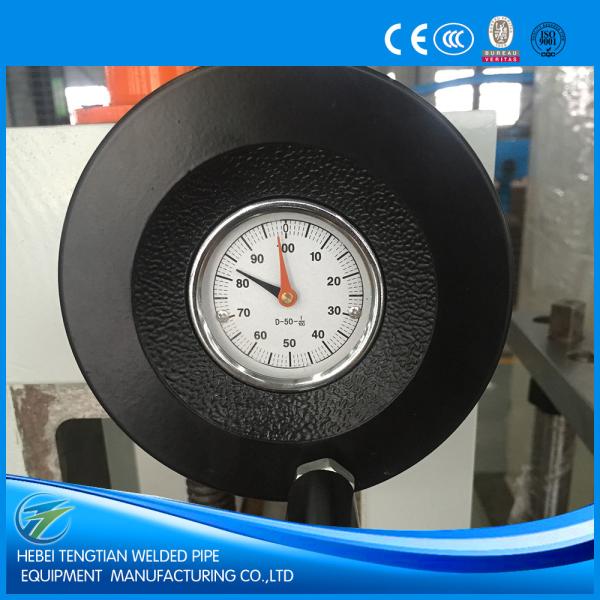

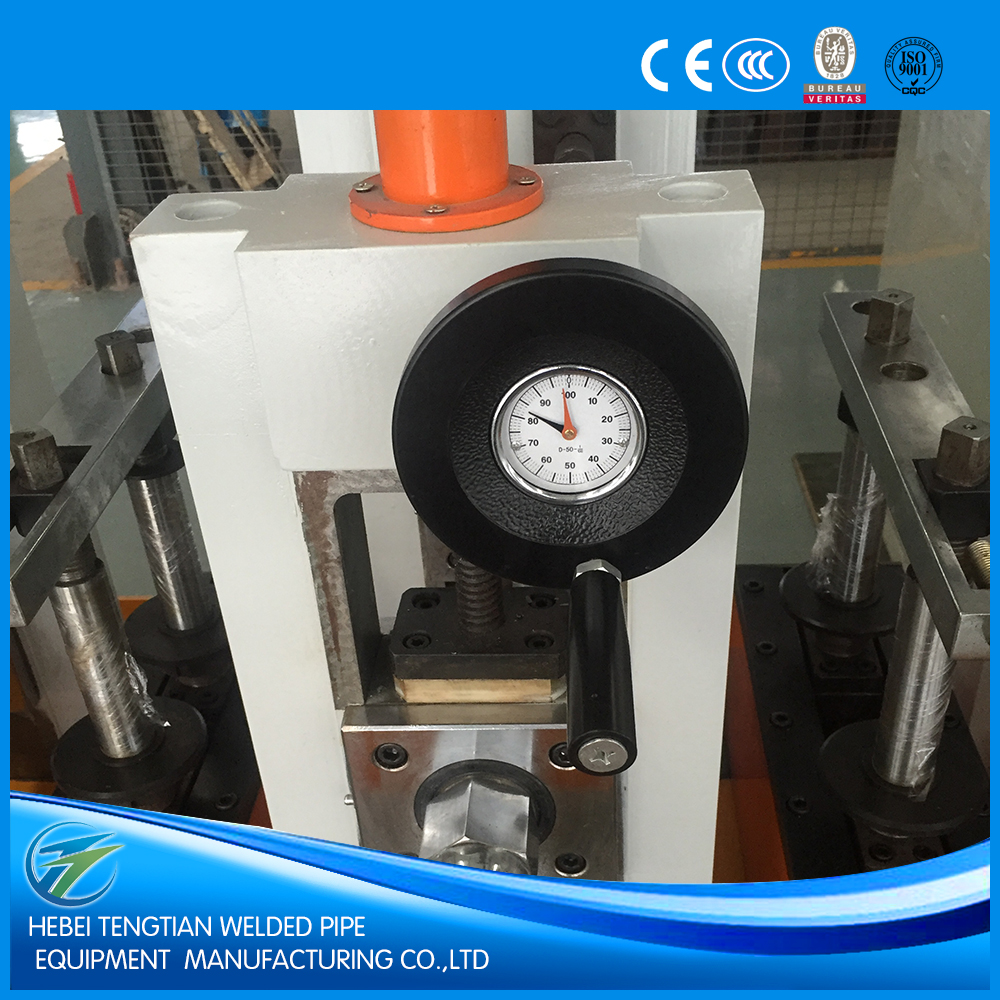

3. Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately
4. The scraping scar can be adjusted 3D adjustment , scraper can along the steel circle ±20 ° rotation.
5. Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.
6. Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Specifications:

1. Raw Material

2. Production Range:

3. H.F. Welder: GGP250Kw Solid State High Frequency Welder

4. Line Spees: Max. 70m/min

5. Tube Length: 4-12m

6. Cutting Accuracy: ±1mm

7. Electric installed capacity: appro. 600KW

8. Size of whole line: about 80X8m

As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.

Hebei tengtian welding pipe equipment manufacturing co., ltd. is a leading domestic professional

manufacturer of welding pipe forming machinery and related products. With more than ten years

of ERW pipe production experience, the factory covers an area of 50,000 square meters, advanced

equipment, the introduction of advanced modern management system, to ensure the quality of products.
After long-term practice, we have a deeper understanding of users' needs.
With the growth of the enterprise, we can provide all range of welded pipe forming machinery from

single machine to complete the pipe mill production line, we also provide "turnkey engineering"

system solutions for our customers from all over the world, including upgrading the old system,

after-sales service completion, test run and worker training services.
The company adheres to the principle of "quality first, customer first", the products are exported

to South America, southeast Asia, Africa, Europe, Australia, Russia, South Korea and other countries

and regions.
Welcome to our factory, we will provide the most suitable technical solution and the most reasonable

price for our customers.The company has obtained ISO 9001 certification, CE certification and

international BV certification.
