Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control

Categories Stud And Track Roll Forming Machine
Brand Name: CHBEST
Model Number: XY38x20
Certification: CE/BV/SGS
Place of Origin: China Hebei
MOQ: 1 set
Supply Ability: 20 sets/month
Delivery Time: 30-40 days
Packaging Details: plastic film for naked machine
Product name: Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control
Roller Material: Cr12 mov
Shaft material: 45#steel
Warranty: 2 years
Lifetime: 10years
Roller material: Cr12mov
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control

Max 30 m/min Speed Cross T Bar Roll Forming Machine PLC Control


Parameter


1Name of commodity & specificationLight keel forming machine
2Main motor power7.5kw, 3 phase
3Hydraulic motor power4kw
4Hydraulic Pressure10-12MPa
5Voltage380V /3phase/ 50 HZ (or as your requirement)
6Control SystemPLC Delta Inverter
7Main Frame300mm H-Beam or 350mm
8Backboard Thickness10mm
9Chain Size20mm
10Feeding Materialcolor steel coils
11Feeding Thickness0.22mm-0.3mm
12Feeding Width30mm 90mm
13Effective width25*24mm
14Productivity30m/min
15Roll Station16 roll steps(according to different design)
16Roller Diameter50mm(depend on different design)
17Roller material45# steel
18Cutter materialCr12 , quenched
19Cr-Plating Size0.05mm
20Overall Size6500×1400×1500mm
21Total Weight4.0T
22ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set

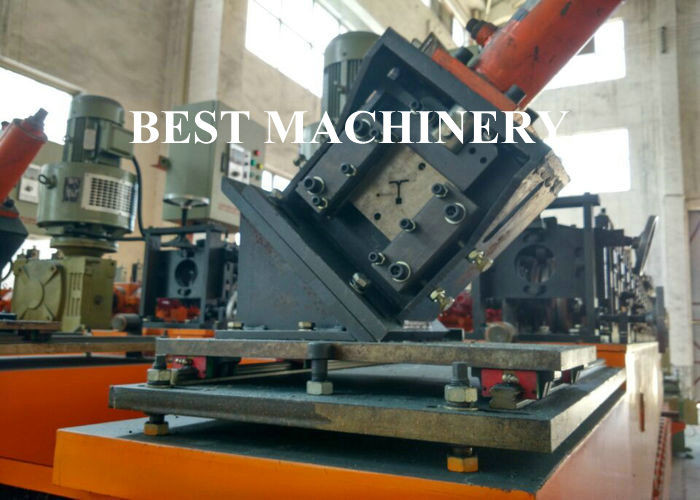

Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
23WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table
24Packagenude in the container
25Minimum order quantity1 set




① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



After-sales service


Technical Support


Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.


Spare Parts


Promptly providing spare parts and wearing parts.


Upgrade


Improve technology and upgrade of equipments.
